Metallics JSRM03 4-40 x 1 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.31
$0.31

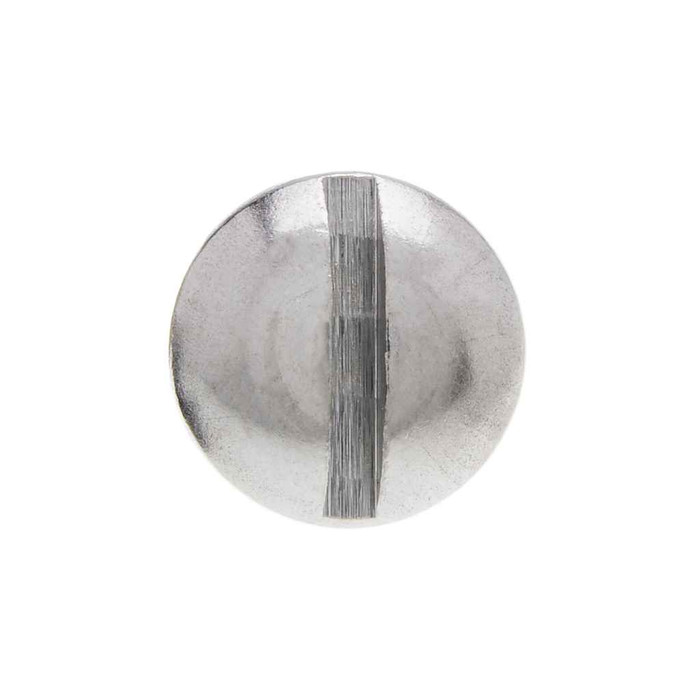

Metallics JSRM03 4-40 x 1 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSRM03 4-40 x 1 in. Round Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSRM03
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.31
$0.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 1 in. Round Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Round head with slotted Drive
    • 18-8 stainless Material
    • 4-40 Diameter, 1" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.075 - 0.086 in.
Fastener Head Type:
Round
Fastener Head Width:
0.193 - 0.211 in.
Fastener Length:
1
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Recess Penetration Gaging Depth:
0.046 - 0.065
Slot Depth:
0.044 - 0.058
Slot Width:
0.031 - 0.039
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
40
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SRM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSRM03 – Frequently Asked Questions

1) Will a 4-40 x 1 inch machine screw work for mounting a device or switch in an electrical box?
4-40 is not the standard device-mounting thread. Standard wiring devices, switches, receptacles and cover plates in US boxes use 6-32 threads, so a 4-40 screw will not thread into a device yoke or box ear. The Metallics JSRM03 is a 4-40 thread, 40 threads per inch, 1 inch long round head slotted screw in 18-8 stainless, used for small fixture, nameplate and component assembly work where a 4-40 tapped hole or nut is already in place. If you are replacing a device screw, order 6-32 instead.
2) Are Metallics JSRM03 screws Buy American or ARRA compliant for a government job?
No. The JSRM03 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing requirements, these will not satisfy the clause and you need a domestically sourced fastener.
3) Is the JSRM03 sold individually or do I have to buy a full jar?
It ships as a jar of 100. The order minimum on the JSRM03 is 100 count and the pack type is a jar, so the smallest purchase is the full 100-piece container rather than loose single screws. Metallics notes that other sizes and quantities can be had by request.
4) Can these 18-8 stainless screws be used outdoors or in a damp location?
18-8 stainless (the 300 series austenitic grade) is the usual choice for wet and outdoor assembly work because it resists rust without plating, and these screws are solid 18-8 rather than plated steel. Hardness runs Rockwell B85-B95, which is softer than a hardened carbon steel screw, so they are not a substitute where a graded high-strength fastener is specified.
5) How much load will a 4-40 stainless machine screw hold?
Tensile strength is listed at 80,000 psi minimum. Metallics is explicit that tensile values for stainless screws are approximations only, since there is no single performance standard for stainless machine screws, so do not treat 80,000 psi as a design rating the way you would an SAE graded steel bolt. For structural or load-bearing connections, spec a fastener with a published grade marking.
6) Does the round head sit flush, or will it stand above the surface?
It stands proud. A round head is a domed, non-countersunk head, and this one projects 0.075 to 0.086 inch above the work with a bearing diameter of 0.193 to 0.211 inch. If you need the screw flush with a panel or plate face, you want a flat head in a countersunk hole instead.
