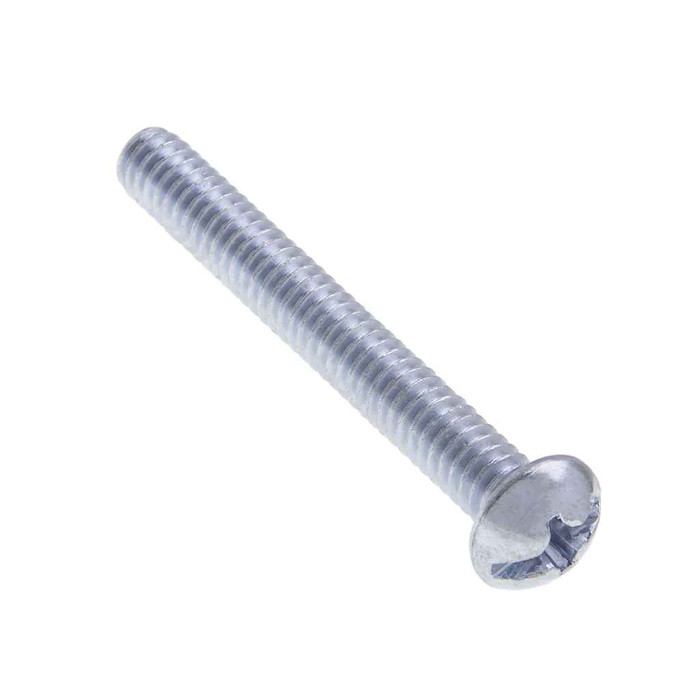

4-40 x 2 in. Round Head Combo Machine Screws - Steel Zinc - 100qty
Additional Notes
- In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.
Features
- Steel Zinc Material
- 4-40 Diameter, 2" Length
- Round head with slotted and Phillips Drive
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Driver Size:
- #1
- Fastener Head Height:
- 0.075 - 0.086 in.
- Fastener Head Type:
- Round
- Fastener Head Width:
- 0.193 - 0.211 in.
- Fastener Length:
- 2
- Finish:
- Zinc
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material:
- Steel Zinc
- Material Standard:
- AISI 1006 - 1022
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Phillips Recess Depth:
- 0.053 - 0.072
- Phillips Recess Diameter:
- 0.105 - 0.118
- Phillips Recess Width:
- 0.019
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Series:
- JRM
- Recess Penetration Gaging Depth:
- 0.046 - 0.065
- Slot Depth:
- 0.044 - 0.058
- Slot Width:
- 0.031 - 0.039
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 40
- Type:
- Machine Screw
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Machine Screw
- Type2:
- Machine Screw
