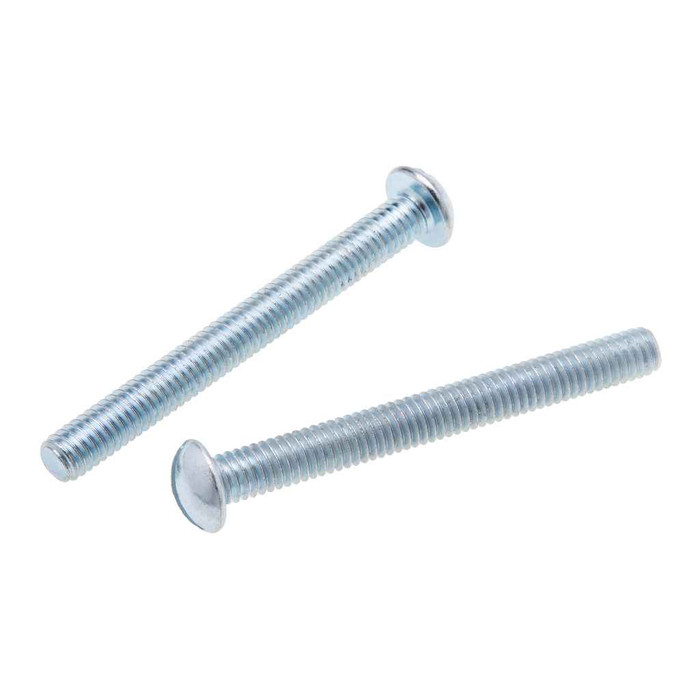

Metallics JRM46SLT 4-40 x 3/4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JRM46SLT 4-40 x 3/4 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM46SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.26
$0.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 3/4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Round head with slotted Drive
    • 4-40 Diameter, 3/4" Length

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.075 - 0.086 in.
Fastener Head Type:
Round
Fastener Head Width:
0.193 - 0.211 in.
Fastener Length:
4-Mar
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.27 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.046 - 0.065
Slot Depth:
0.044 - 0.058
Slot Width:
0.031 - 0.039
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
40
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM46SLT – Frequently Asked Questions

1) Will a 4-40 machine screw thread into a standard device box or switch plate ear?
The Metallics JRM46SLT is a 4-40 thread screw with 40 threads per inch, which is the size used for wall plates and small device mounting, not the 6-32 used for receptacles and switches in a steel device box. If you are fastening a device yoke to a box, you need 6-32. Use the 4-40 where the tapped hole or nut is actually 4-40.
2) Are zinc plated steel machine screws OK outdoors or in a damp location?
Zinc plating on carbon steel is a mild corrosion coating, fine for dry interior electrical work, panel and enclosure assembly, and general MRO. For wet locations, exterior enclosures, or anywhere washdown or coastal salt is involved, specify a stainless 4-40 screw instead. The JRM46SLT is steel with a zinc finish.
3) Do I get one screw or a box when I order the Metallics JRM46SLT?
It ships as a jar of 100. The order minimum is 100 count, so the 4-40 x 3/4 in. round head screws come as a jar quantity rather than loose pieces.
4) Is this screw strong enough for a structural or load bearing connection?
No. The 4-40 Metallics screw is rated at 60,000 psi minimum tensile with a hardness of Rockwell B70 to B100, made from AISI 1006 to 1022 low carbon steel. That is standard commercial machine screw material for fastening covers, plates, brackets and devices. It is not a graded structural fastener, so do not substitute it where a drawing calls out a bolt grade.
5) Will these machine screws meet a Buy American or ARRA requirement on a government job?
The Metallics 4-40 x 3/4 in. round head screws are flagged compliant for both ARRA and Buy American in the product record, with country of origin listed as China. On federally funded work, confirm which standard your contract actually invokes, since the two have different content rules.
6) Do I need a nut, or will these thread into a tapped hole?
A machine screw has a uniform straight thread and no point, so the JRM46SLT needs either a 4-40 tapped hole or a 4-40 nut. It will not form its own thread in sheet metal or plastic the way a self-tapping screw does. Nuts are ordered separately.
7) What does a jar of 100 of these 4-40 screws weigh for shipping?
The jar is listed at 0.27 lbs with a 3 x 3 x 2.15 in. package footprint, so it is easy to add to a mixed MRO order or keep several sizes on the truck without weight concerns.
