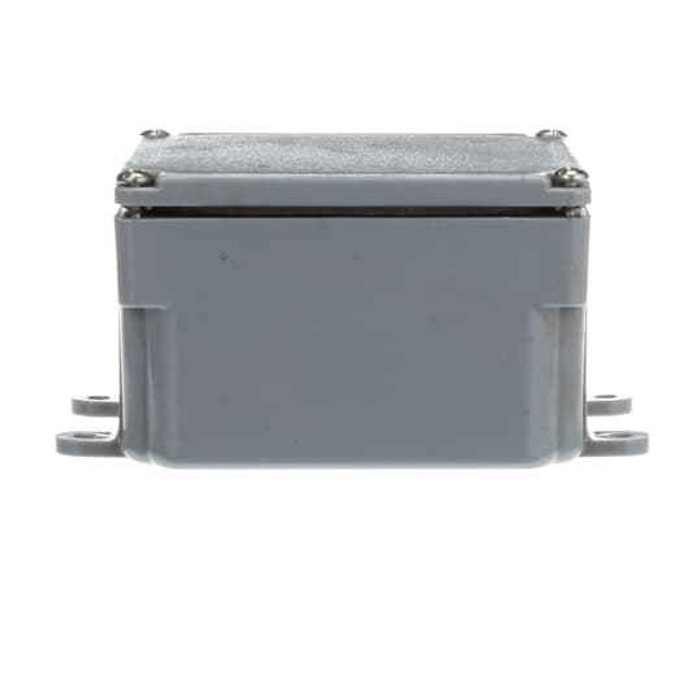

Carlon 4 Inch x 4 Inch x 2 Inch Non-Metallic Junction Box NEMA 6P Direct Burial

Carlon 4 Inch x 4 Inch x 2 Inch Non-Metallic Junction Box NEMA 6P Direct Burial

First UL Listed Non-Metallic Junction Box with NEMA 6P Rating

The Carlon 4 Inch x 4 Inch x 2 Inch Non-Metallic Junction Box delivers professional-grade electrical enclosure performance for direct burial applications. This non-metallic junction box features NEMA 6P waterproof rating designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for underground and wet location installations.

Professional Features & Benefits

Superior Protection & Durability

• NEMA 6P Waterproof Rating - Provides complete protection against water ingress for direct burial and submersible applications
• Non-Metallic Construction - Eliminates corrosion concerns and provides superior resistance to chemicals and environmental conditions
• 4x4x2 Inch Dimensions - Optimal size for junction connections while maintaining compact installation profile
• Direct Burial Approved - Engineered specifically for underground electrical installations with long-term reliability

Code Compliance & Safety

• UL Listed Safety - Meets UL e11461 standards ensuring electrical code compliance and professional installation requirements
• NEC Section 314 Compliant - First non-metallic junction box to achieve this rating per National Electrical Code exception requirements
• Professional Grade Materials - Constructed with high-quality non-metallic materials for maximum durability and safety

Technical Specifications

Dimensions: 4 inches x 4 inches x 2 inches (3.69" x 3.69" x 2" actual), Non-metallic construction material, NEMA 6P waterproof rating, UL Listed per UL e11461 standards, NEC Section 314 compliant, direct burial and submersible applications approved, sold individually per each unit.

Installation Process

1. Select appropriate location ensuring proper depth for direct burial applications and local code requirements
2. Excavate installation area to required depth maintaining proper clearances for junction box access
3. Position junction box ensuring level installation and proper orientation for cable entry points
4. Make electrical connections using appropriate wire nuts and ensure all connections are secure and properly insulated
5. Verify NEMA 6P seal integrity by checking gasket alignment and cover tightness before backfilling
6. Backfill installation area using appropriate materials while protecting junction box from damage during soil compaction

Professional Applications

Ideal for:

• Direct Burial Installations - Underground electrical junction connections for residential and commercial wiring systems
• Landscape Lighting Systems - Junction connections for outdoor lighting circuits requiring waterproof protection
• Irrigation Control Wiring - Electrical connections for sprinkler system controls and valve wiring in wet environments
• Pool and Spa Electrical - Junction connections for swimming pool and spa electrical systems requiring submersible ratings
• Outdoor Electrical Systems - Weather-resistant junction connections for exterior electrical installations
• Underground Conduit Systems - Junction points for PVC conduit runs requiring waterproof splice protection
• Wet Location Applications - Any electrical junction requiring NEMA 6P protection against water ingress
• Commercial Underground Wiring - Professional electrical installations requiring code-compliant waterproof junction protection

Non-Metallic Construction Advantage

Carlon's non-metallic construction provides superior corrosion resistance compared to metal alternatives, eliminating rust and deterioration concerns in direct burial applications. The lightweight yet durable material resists chemicals, moisture, and environmental stresses while maintaining structural integrity for long-term underground installations. This advanced material technology ensures reliable electrical connections in the most demanding wet location applications.

Why Choose Carlon Quality?

Carlon's commitment to UL Listed safety and innovative NEMA 6P rating represents a breakthrough in non-metallic junction box technology. As the first non-metallic junction box to achieve this waterproof rating per NEC Section 314 exception, this product demonstrates Carlon's dedication to advancing electrical safety standards while providing electrical professionals with reliable, code-compliant solutions for the most challenging direct burial and wet location applications.
