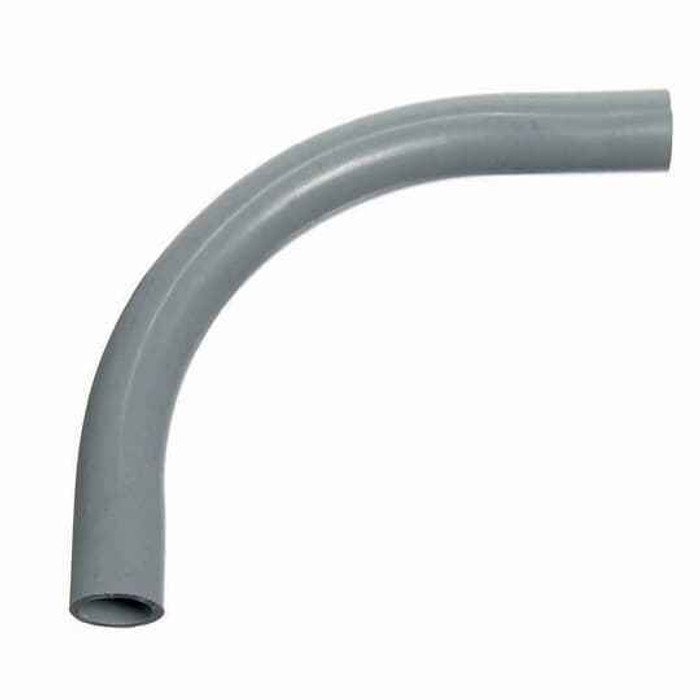

Carlon 4 Inch Gray PVC Schedule 40 90 Degree Elbow with 36 Inch Radius

Carlon 4 Inch Gray PVC Schedule 40 90 Degree Elbow with 36 Inch Radius

Professional-Grade Non-Metallic Conduit Fitting

The Carlon 4 Inch Gray PVC Schedule 40 90 Degree Elbow delivers professional-grade conduit system performance for large-scale electrical installations. This PVC Schedule 40 elbow features a generous 36-inch radius designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for heavy-duty conduit runs.

Professional Features & Benefits

Heavy-Duty Construction

• Schedule 40 PVC Material - Superior wall thickness and durability for demanding electrical applications
• 4.5 Inch Outside Diameter - Precise dimensional accuracy for secure conduit connections
• 36 Inch Radius Design - Gentle bend radius minimizes wire pulling tension and installation stress
• Gray Color Coding - Industry standard identification for PVC electrical conduit systems

Safety & Code Compliance

• UL Listed E323335 - Certified safety and performance for electrical conduit applications
• Non-Metallic Construction - Corrosion-resistant and lightweight for long-term reliability
• Code Compliant Installation - Meets NEC requirements for rigid non-metallic conduit systems

Technical Specifications

Nominal Size: 4 inches, Outside Diameter: 4.5 inches, Material: Schedule 40 PVC, Radius: 36 inches, Color: Gray, UL Listed: E323335, Standards: NEC compliant for rigid non-metallic conduit applications, Selling Unit: Each

Installation Process

1. Measure and cut conduit runs to proper length ensuring square, clean cuts for optimal fitting engagement
2. Test fit elbow with conduit sections to verify proper alignment and positioning before final assembly
3. Apply PVC primer to both conduit end and elbow socket for maximum bond strength and reliability
4. Apply PVC cement evenly and insert conduit fully into elbow socket with quarter-turn for secure connection
5. Hold connection firmly for 30 seconds to ensure proper cure and professional-grade joint integrity
6. Verify all connections are secure and properly aligned before proceeding with wire installation

Professional Applications

Ideal for:

• Commercial Electrical Systems - Large conduit runs in office buildings, retail spaces, and industrial facilities
• Industrial Installations - Heavy-duty electrical distribution in manufacturing and processing facilities
• Underground Electrical - Buried conduit systems for parking lots, outdoor lighting, and site electrical
• Utility Applications - Power distribution systems requiring large conductor capacity and reliability
• Data Center Infrastructure - High-capacity conduit systems for power and communication cabling
• Hospital and Healthcare - Critical electrical systems requiring UL Listed safety and code compliance
• Educational Facilities - School and university electrical infrastructure with long-term durability requirements
• Municipal Projects - Government and public works electrical installations demanding professional-grade performance

PVC Schedule 40 Advantage

Carlon PVC Schedule 40 construction provides superior wall thickness and impact resistance compared to lighter-duty conduit materials. The non-metallic design eliminates corrosion concerns while maintaining excellent dimensional stability across temperature variations. The 36-inch radius design significantly reduces wire pulling tension, protecting conductor insulation and ensuring easier installation of large wire bundles in 4-inch conduit systems.

Why Choose Carlon Quality?

Carlon demonstrates unwavering commitment to UL Listed safety, reliable performance, and strict code compliance for electrical professionals. Every Schedule 40 elbow undergoes rigorous quality testing to ensure consistent dimensional accuracy, superior joint strength, and long-term durability in demanding electrical applications, making Carlon the trusted choice for contractors who demand professional-grade conduit system components.
