Carlon 4 INCH SCH 80 STD 90 DEG ELBOW

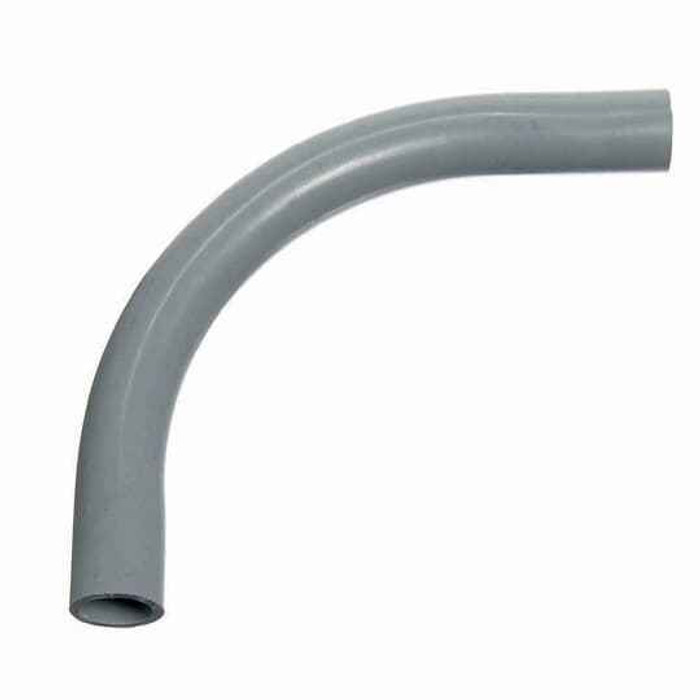

Carlon 4 Inch Gray PVC Schedule 80 Standard 90 Degree Elbow - 4.5 Inch OD

(No reviews yet) Write a Review

Model: UB9AN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$183.61
$110.89
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon 4 Inch Gray PVC Schedule 80 Standard 90 Degree Elbow

Heavy-Duty Non-Metallic Conduit Fitting for Professional Electrical Installations

The Carlon 4 Inch Gray PVC Schedule 80 Standard 90 Degree Elbow delivers professional-grade conduit fitting performance for heavy-duty electrical installations. This PVC Schedule 80 elbow features standard 90-degree directional change designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for rigid non-metallic conduit systems.

Professional Features & Benefits

Heavy-Duty Construction

  • Schedule 80 PVC Material - Superior wall thickness and impact resistance for demanding electrical applications
  • 4.5 Inch Outside Diameter - Precise dimensional accuracy for secure conduit connections and professional installations
  • Standard 90 Degree Angle - Perfect directional change for conduit routing around corners and obstacles
  • Gray Color Coding - Industry standard identification for Schedule 80 rigid non-metallic conduit systems

Safety & Code Compliance

  • UL Listed E323335 - Certified safety and performance for electrical conduit applications
  • Non-Metallic Design - Corrosion-resistant construction eliminates rust and galvanic corrosion concerns
  • Code Compliant Installation - Meets NEC requirements for rigid non-metallic conduit systems

Technical Specifications

Nominal Size: 4 inches, Outside Diameter: 4.5 inches, Material: Schedule 80 PVC, Color: Gray, Standards: UL E323335, Angle: Standard 90 degrees, Product Type: Rigid Non-Metallic Conduit Elbow, Selling Unit: Each

Installation Process

  1. Measure and cut conduit to required length ensuring square, clean cuts for optimal fitting connection
  2. Test fit elbow with conduit sections to verify proper alignment and positioning before permanent installation
  3. Apply appropriate PVC solvent cement to conduit end and elbow socket following manufacturer specifications
  4. Insert conduit fully into elbow socket with quarter-turn twist to ensure complete cement distribution
  5. Hold connection firmly for 30 seconds to allow initial cement set and prevent joint separation
  6. Verify 90-degree angle alignment and allow full cure time before wire pulling or system energization

Professional Applications

Ideal for:

  • Industrial Electrical Systems - Heavy-duty conduit routing in manufacturing facilities and industrial installations
  • Commercial Building Wiring - Professional conduit systems in office buildings, retail spaces, and commercial facilities
  • Underground Electrical Distribution - Buried conduit systems requiring superior moisture and chemical resistance
  • Outdoor Electrical Installations - Weather-resistant conduit routing for exterior electrical systems and lighting
  • Corrosive Environment Protection - Chemical plants, water treatment facilities, and marine electrical applications
  • High-Traffic Area Conduit - Parking garages, loading docks, and areas requiring impact-resistant conduit protection
  • Concrete Encased Systems - Conduit installations within concrete structures and foundations
  • Large Wire Bundle Protection - 4-inch capacity for multiple large conductors and cable assemblies

Schedule 80 PVC Advantage

Carlon Schedule 80 PVC construction provides superior wall thickness compared to Schedule 40, delivering enhanced impact resistance and durability for demanding electrical applications. The non-metallic design eliminates corrosion concerns while providing excellent chemical resistance and dimensional stability across temperature variations, making it ideal for harsh environment installations where metallic conduit would deteriorate.

Why Choose Carlon Quality?

Carlon's commitment to UL Listed safety and reliable performance ensures this Schedule 80 elbow meets the highest standards for electrical conduit systems. With decades of experience in non-metallic electrical products, Carlon delivers the consistent quality and code compliance that electrical professionals trust for critical infrastructure installations and demanding industrial applications.

Manufacturer Resources

Product Specs

Material:
PVC
Nominal Size:
4 in
Outside Diameter:
4.5 in
Product Name:
FITTINGS OF PLASTIC FOR TUBES, ETC.
Product Net Depth Length:
30.21 in
Product Type:
Rigid Non-Metallic Conduit-Schedule 80 Elbows
Selling Unit Of Measure:
each
Standards:
UL E323335
Product Group:
Conduit Systems
Department:
Electrical
Product Sub group:
Elbows
Product Type2:
Pvc Schedule 80 Elbows
Product Color:
Gray
