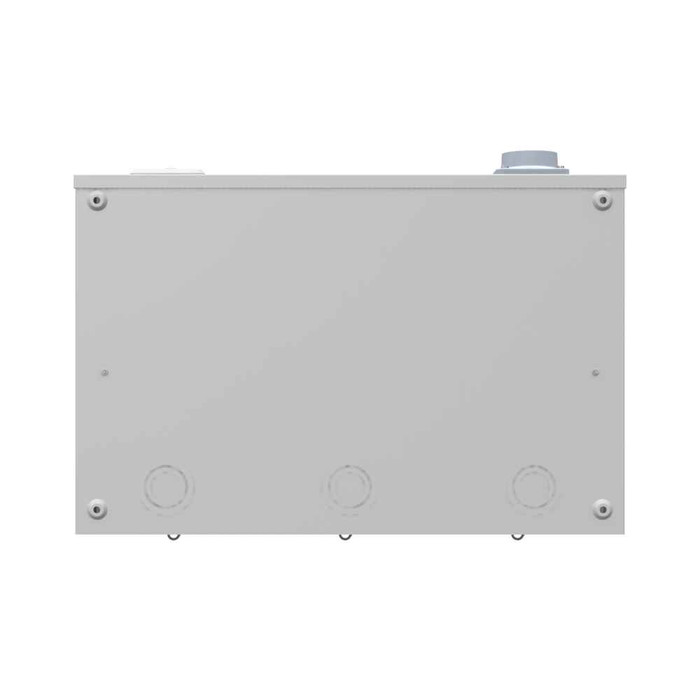

Milbank 100A 1-Phase 3-Position Ringless Meter Socket with 2" Hub

Milbank 100A 1-Phase 3-Position Ringless Meter Socket with 2" Hub

Professional Multi-Position Metering Solution for Overhead Service Applications

The Milbank 100A 1-Phase 3-Position Ringless Meter Socket delivers reliable electrical metering for multi-unit and commercial applications. Constructed with G90 galvanized steel and powder coat finish, this surface-mount meter socket features 4 terminal lay-in connections and accommodates overhead cable entry through a 2-inch hub. UL Listed and Type 3R rated for outdoor installations, this professional-grade metering equipment provides dependable service at 300V AC, 60Hz with glass polyester insulation.

Professional Features & Benefits

• 100A Continuous Rating: Handles substantial electrical loads for multi-unit residential and light commercial applications with reliable amperage capacity.
• 3-Position Configuration: Accommodates multiple meters in a single enclosure, reducing installation complexity and space requirements for multi-tenant properties.
• Type 3R Weather Rating: Provides protection against rain, sleet, and ice formation, ensuring reliable outdoor performance in various weather conditions.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural durability for long-term service life in outdoor environments.
• Ringless Design: Eliminates the need for meter rings, simplifying installation and reducing potential connection points for enhanced reliability.
• Ground Lug Equipment Ground: Ensures proper electrical grounding for safety compliance and system protection.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead
• Department: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Height: 16 IN
• Hub Closing Plate: 2 Inch Hub
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 - 2/0 AWG
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 3 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: G125
• Product Group: Metering Equipment
• Product Length: 4.5 IN
• Product Size: 4.5L x 24.5W x16H
• Product Subgroup: Meter Socket
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 300 Volts Alternating Current
• Width: 24.5 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Small Commercial Buildings
• Retail Strip Centers
• Professional Office Buildings
• Light Industrial Facilities
• Municipal and Institutional Buildings
• Apartment Complexes and Condominiums

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather protection, ensuring dependable performance in demanding outdoor environments. The G90 galvanized steel construction with powder coat finish provides exceptional corrosion resistance and durability for long-term service life, making this meter socket a trusted choice for professional electrical installations.
