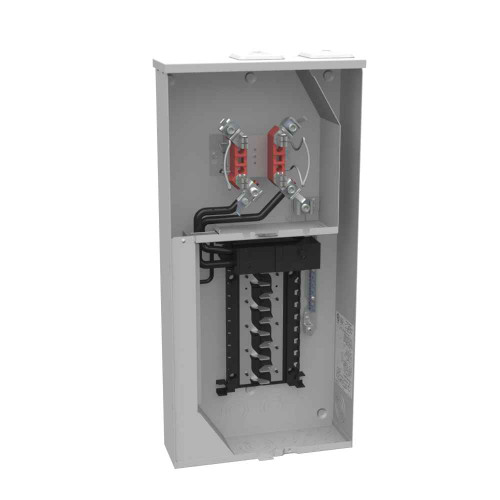

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker and 8-Circuit Load Center
Professional Meter Socket with Integrated Main Breaker & Load Center
The Milbank 200A 1-Phase Ringless Meter Socket combines reliable metering with integrated main breaker protection and 8-circuit load center functionality. This UL Listed Type 3R unit features G90 galvanized steel construction with powder coat finish for durability, 4-terminal ringless design for versatile connections, and horn bypass provision for service flexibility. Designed for overhead or underground cable entry with surface mount installation.
Professional Features & Benefits
- 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications.
- 1-Phase 240V AC Operation: Compatible with standard residential and small commercial electrical systems for reliable power distribution.
- UL Listed Type 3R Enclosure: Meets safety standards with weather-resistant protection for outdoor installations and harsh environments.
- G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability with professional powder coat finish.
- 4-Terminal Ringless Design: Enables flexible wiring configurations with lay-in terminals accommodating 6 AWG to 350 kcmil wire range.
- Horn Bypass Provision: Allows for safe meter removal and service continuity during maintenance operations.
- Integrated 8-Circuit Load Center: Combines metering and distribution in one compact unit for streamlined electrical service installations.
Technical Specifications
- Amperage Rating: 200 Continuous Ampere
- Application: Meter Socket With Main And Load Center
- Brand Name: Milbank
- Bypass Provision: Horn Bypass
- Cable Entry: Overhead or Underground
- Department: Electrical
- Equipment Ground: Ground Bar
- Frequency Rating: 60 Hertz
- Height: 30 IN
- Hub Closing Plate: Twin Small Closing Plates
- Insulation: Glass Polyester
- Line Side Wire Range: 6 AWG - 350 kcmil
- Load Side Wire Range: 6 AWG - 350 kcmil
- Main Breaker Size: One 200 Ampere Main Breaker
- Material: G90 Galvanized Steel with Powder Coat Finish
- Mounting: Surface Mount
- Number Branch Circuits: 8
- Number Of Jaws: 4 Terminal
- Number Of Main Breakers: 1
- Number Of Meter Positions: 1 Position
- Number Of Receptacles: 0
- Phase: 1 Phase
- Product Family Code: MTMN
- Product Group: Metering Equipment
- Product Length: 4.5 IN
- Product Size: 4.5L x 14.125W x30H
- Product Subgroup: Meter Socket
- Product Type: Ringless Meter Socket
- Standard: UL Listed;Type 3R
- Terminal: Lay in
- Unspsc Number: 39121102
- Voltage Rating: Up to 240 Volts Alternating Current
- Width: 14.125 IN
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Residential Electrical Service Entrance
- Small Commercial Buildings
- Multi-Unit Residential Properties
- Professional Offices
- Retail Establishments
- Light Industrial Facilities
- Utility Service Upgrades
Why Choose Milbank Quality?
Milbank delivers proven reliability with UL Listed safety certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive ground bar and glass polyester insulation provide professional-grade electrical protection for demanding service applications.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket With Main And Load Center
- Brand Name:
- Milbank
- Bypass Provision:
- Horn Bypass
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hertz
- Hub Closing Plate:
- Twin Small Closing Plates
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- One 200 Ampere Main Breaker
- Number Branch Circuits:
- 8
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- MTMN
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 14.125 IN
- Product Subgroup:
- Meter Socket
- Product Type:
- Ringless Meter Socket
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Size:
- 4.5L x 14.125W x30H
- Product Length:
- 4.5 IN
- Mounting Method:
- Surface Mount
- Product Height:
- 30 IN
- Product Material:
- G90 Galvanized Steel with Powder Coat Finish
