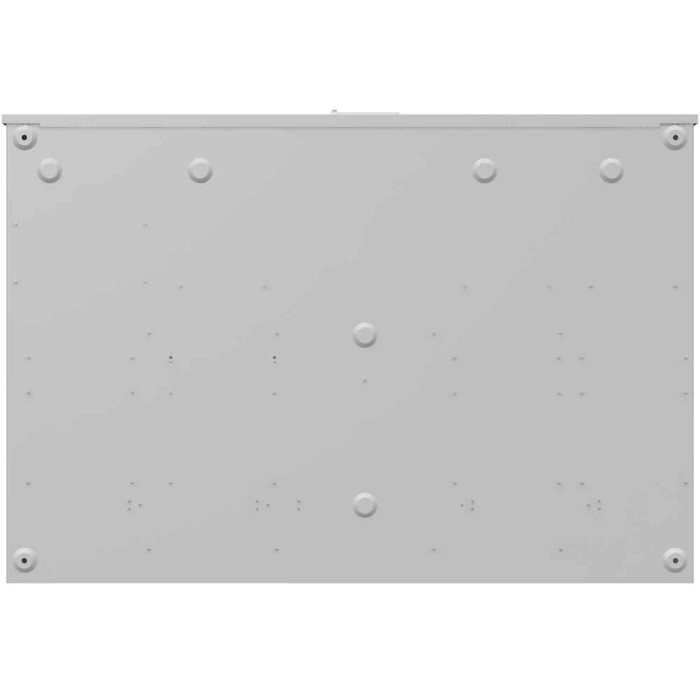

Milbank 4 Position Ringless Meter Socket with Barrel Lock Provision
Professional-Grade Multi-Unit Metering Solution
The Milbank 4 Position Ringless Meter Socket delivers professional-grade metering performance for multi-unit residential and commercial applications. This G90 galvanized steel meter socket features 4 terminal ringless design with barrel lock provision, designed for electrical contractors and facility managers, providing the reliable performance and UL Listed safety that electrical professionals demand for condominium and multi-tenant installations.
Professional Features & Benefits
Advanced Metering Technology
- 4 Terminal Ringless Design - Eliminates meter rings for faster installation and enhanced safety
- 4 Position Configuration - Accommodates multiple meters for multi-unit applications
- 125 Continuous Ampere Rating - Handles high-capacity electrical loads reliably
- Single Phase Operation - Optimized for residential and light commercial power distribution
Security & Safety Features
- Barrel Lock Provision - 9/16 inch knockout and angle bracket for enhanced security
- Lever Bypass System - No bypass on residential meter, lever bypass on common area meter
- Type 3R Rating - Weather-resistant protection for outdoor installations
Technical Specifications
Dimensions: 30.5H x 44.813W x 5.969L inches. Constructed from G90 galvanized steel with powder coat finish for superior corrosion resistance. Type 3R NEMA rating provides weather protection. UL Listed for safety compliance. 125 continuous ampere rating with up to 240 volts AC operation. Surface mount installation with overhead or underground cable entry options.
Installation Process
- Mount securely to approved surface using proper fasteners for reliable support
- Connect line side conductors (6 AWG - 350 kcmil) following NEC guidelines
- Install load side wiring (1 AWG - 300 kcmil) to distribution panels
- Connect equipment ground using provided ground lug for safety
- Install barrel lock hardware using 9/16 inch knockout and angle bracket
- Test all connections and verify proper meter operation before energizing
Professional Applications
Ideal for:
- Condominium Complexes - Multi-unit residential metering with individual and common area monitoring
- Apartment Buildings - Centralized metering for multiple residential units
- Commercial Multi-Tenant - Office buildings and retail spaces requiring separate metering
- Mixed-Use Developments - Combined residential and commercial metering applications
- Property Management - Centralized utility monitoring and billing systems
- Utility Installations - Power company approved metering solutions
- Electrical Retrofits - Upgrading existing multi-unit metering systems
- New Construction - Multi-family and commercial electrical installations
G90 Galvanized Steel Advantage
Milbank's G90 galvanized steel construction with powder coat finish provides superior corrosion resistance and long-term durability for outdoor electrical installations. The heavy-duty construction withstands harsh weather conditions while maintaining electrical integrity and safety standards required for professional metering applications.
Why Choose Milbank Quality?
Milbank's commitment to UL Listed safety, reliable performance, and Type 3R compliance standards makes this meter socket the preferred choice for electrical professionals. With glass polyester insulation, single mechanical terminals, and proven ringless technology, this meter socket delivers the dependable performance and code compliance that contractors and facility managers require for critical metering installations.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125 Continuous Ampere
- Application:
- Meter Socket With Main
- Barrel Lock Provision:
- 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
- Brand Name:
- Milbank
- Bypass Provision:
- No Bypass on Residential Meter and Lever Bypass on Common Area Meter
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 30.5 IN
- Hub Closing Plate:
- Large Closing Plate
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 1 AWG - 300 kcmil
- Main Breaker Size:
- Breaker Provision
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 4
- Number Of Meter Positions:
- 4 Positions
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- CUHD
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 44.813 IN
- Product Subgroup:
- Meter Socket
- Product Type:
- Ringless Meter Socket
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Size:
- 5.969L x 44.813W x30.5H
- Product Length:
- 5.969 IN
