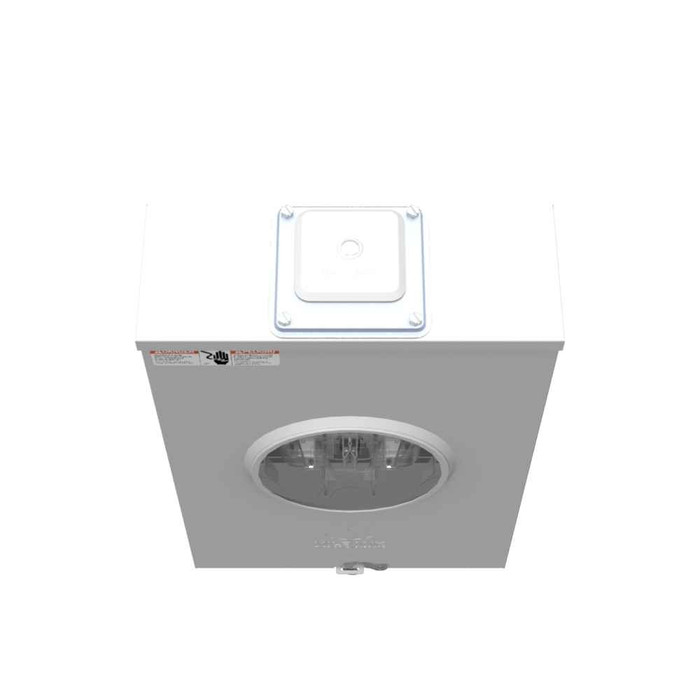

Milbank 18.5x10x4.844 G90 Galvanized Steel Ringless Meter Socket
Professional-Grade 200 Amp Metering Solution with Lever Bypass
The Milbank 18.5x10x4.844 G90 Galvanized Steel Ringless Meter Socket delivers professional-grade metering performance for commercial and residential electrical installations. This G90 galvanized steel meter socket features 4 terminal configuration with quadplex ground and lever bypass designed for electrical contractors and facility managers, providing the reliable performance and UL Listed safety that electrical professionals demand.
Professional Features & Benefits
Advanced Metering Configuration
- 4 Terminal Ringless Design - Eliminates meter rings for faster installation and enhanced safety
- 200 Continuous Ampere Rating - Handles high-capacity electrical loads for commercial applications
- Quadplex Ground System - Provides superior grounding protection and electrical safety
- Lever Bypass Provision - Enables safe meter maintenance without power interruption
Safety & Compliance Standards
- UL Listed Certification - Meets rigorous safety standards for electrical metering equipment
- Type 3R Rating - Weather-resistant protection for outdoor installations
- 600 Volt AC Rating - Designed for standard commercial voltage applications
Technical Specifications
Dimensions: 18.5" H x 10" W x 4.844" L. Construction: G90 galvanized steel with powder coat finish for maximum corrosion resistance. Electrical Rating: 200 continuous amperes at 600 volts AC, 60 Hz, single phase. Wire Range: 6 AWG to 350 kcmil for both line and load side connections. Insulation: Glass polyester for superior electrical isolation. Mounting: Surface mount configuration with large hub opening adapted to small closing plate.
Installation Process
- Mount meter socket securely to appropriate surface ensuring proper alignment and structural support
- Connect incoming service conductors to line side terminals using proper torque specifications
- Install load side conductors to designated terminals maintaining proper wire management
- Verify quadplex ground connections are properly secured and bonded
- Test lever bypass operation to ensure smooth maintenance functionality
- Complete final inspection and verify all UL Listed safety requirements are met
Professional Applications
Ideal for:
- Commercial Metering Systems - Office buildings, retail centers, and industrial facilities requiring 200A service
- Residential Service Upgrades - High-capacity homes with electric heating, pools, or workshop facilities
- Multi-Unit Housing - Apartment complexes and condominiums with individual metering requirements
- Industrial Power Distribution - Manufacturing facilities requiring reliable metering with bypass capability
- Utility Service Connections - Primary metering points for electrical service entrance applications
- Emergency Power Systems - Generator connections requiring meter bypass functionality
- Electrical Contractor Projects - New construction and retrofit applications demanding UL Listed safety
- Municipal Installations - Government buildings and public facilities with Type 3R weather protection needs
G90 Galvanized Steel Advantage
Milbank's G90 galvanized steel construction with powder coat finish provides superior corrosion resistance and long-term durability for outdoor electrical metering applications. The galvanized coating offers exceptional protection against moisture, salt air, and environmental contaminants, while the powder coat finish adds an additional barrier against weathering and UV degradation.
Why Choose Milbank Quality?
Milbank's commitment to UL Listed safety, reliable performance, and compliance standards makes this ringless meter socket the preferred choice for electrical professionals. With decades of experience in power distribution and metering equipment, Milbank delivers the quality construction and innovative features that contractors trust for critical electrical infrastructure projects.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Quadplex Ground
- Frequency Rating:
- 60 Hertz
- Height:
- 18.5 IN
- Hub Closing Plate:
- Large Hub Opening Adapted to Small Closing Plate
- Insulation:
- Glass Polyester
- Length:
- 4.844 IN
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- HD4T
- Size:
- 4.844L x 10W x18.5H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 10 IN
- Product Type:
- Ringless Meter Socket
- Product Subgroup:
- Meter Socket
- Product Group:
- Metering Equipment
- Department:
- Electrical
