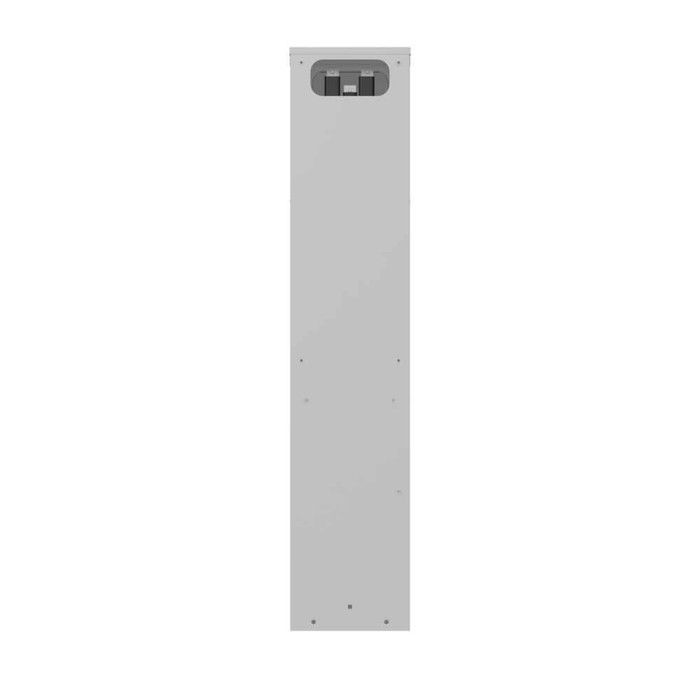

4 Terminal Ringless Plain Top 1-main Breaker Provision Single Pedestal Direct Bury Milbank Main Breaker
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket With Main And Load Center
- Brand Name:
- Milbank
- Bypass Provision:
- No Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- 4 Barrel Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 48 IN
- Hub Closing Plate:
- Plain Top
- Insulation:
- Glass Polyester
- Length:
- 9.625 IN
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Pedestal
- Number Branch Circuits:
- 5
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- MHSP
- Size:
- 9.625L x 9.875W x48H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 9.875 IN
