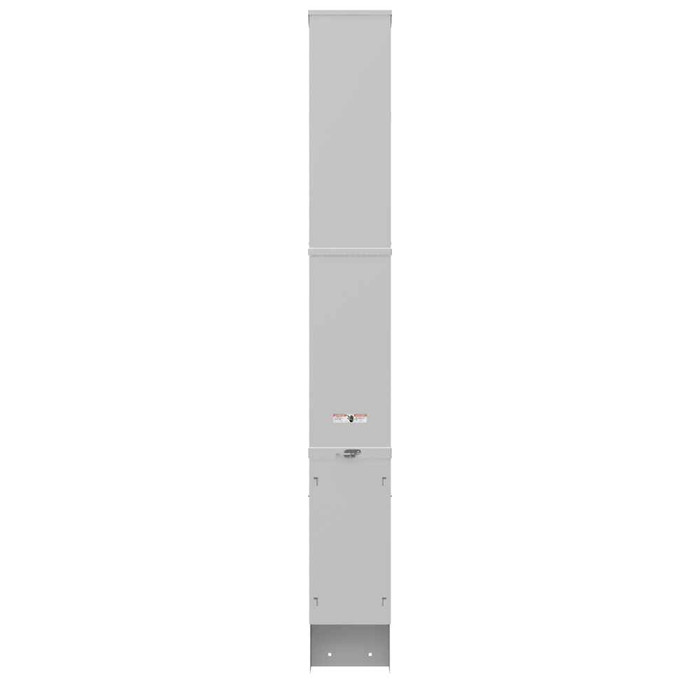

4 Terminal Ringless Plain Top Horn Bypass 1-200 Ampere Main Breaker Single Pedestal Direct Bury Parallel Wired
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Mobile Home Power
- Brand Name:
- Milbank
- Bypass Provision:
- Horn Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- Triplex Ground
- Frequency Rating:
- 60 Hertz
- Height:
- 80 IN
- Hub Closing Plate:
- Plain Top
- Insulation:
- Glass Polyester
- Length:
- 10.25 IN
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 1/0 AWG - 300 kcmil
- Main Breaker Size:
- One 200 Ampere Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Pedestal
- Number Branch Circuits:
- 4
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- Single Power Head
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- MHSP
- Standard:
- UL Listed;Type 3R
- Terminal:
- Double Mechanical
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 9.688 IN
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Subgroup:
- Meter Socket
- Product Type:
- Ringless Meter Socket
- Product Size:
- 10.25L x 9.688W x80H
