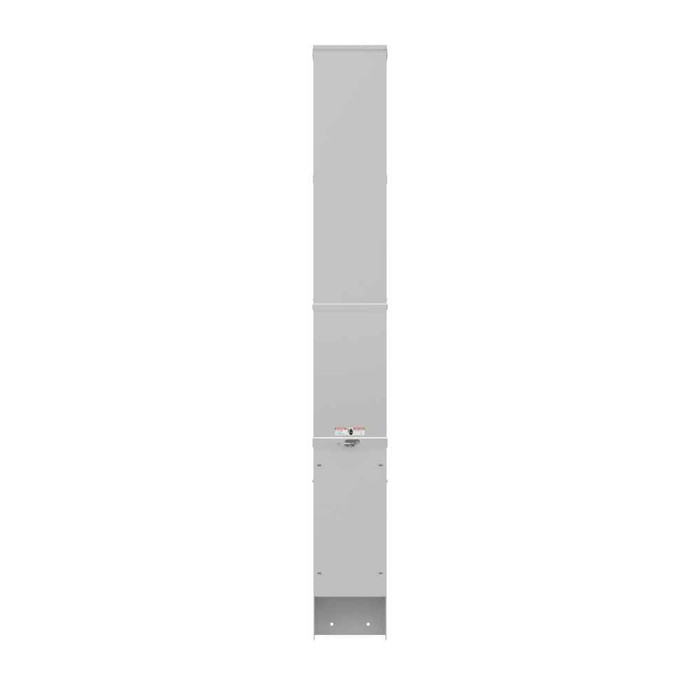

Milbank 200A Single Phase Ringless Meter Socket with Main Breaker and Lever Bypass Pedestal Mount System
Professional Mobile Home Power Distribution with Direct Bury Installation
The Milbank 200A Single Phase Ringless Meter Socket delivers reliable mobile home power distribution with integrated main breaker protection and convenient lever bypass functionality. This pedestal-mounted system features G90 galvanized steel construction with powder coat finish, 4 terminal ringless design, and Type 3R weatherproof rating for dependable outdoor service up to 240 volts alternating current.
Professional Features & Benefits
- 200 Continuous Ampere Rating: Provides robust power capacity for comprehensive mobile home electrical service and load requirements.
- Single Phase 240V Operation: Delivers standard residential voltage compatibility for efficient power distribution and equipment operation.
- Lever Bypass Provision: Enables convenient maintenance access and service continuity during meter changes or electrical work.
- G90 Galvanized Steel Construction: Ensures long-term durability and corrosion resistance with professional powder coat finish protection.
- Type 3R Weatherproof Rating: Provides reliable outdoor performance protection against rain, sleet, and ice formation.
- 4 Terminal Ringless Design: Simplifies installation with secure double mechanical terminal connections and underground cable entry.
- UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
Technical Specifications
- Amperage Rating: 200 Continuous Ampere
- Application: Mobile Home Power
- Brand Name: Milbank
- Bypass Provision: Lever Bypass
- Cable Entry: Underground
- Department: Electrical
- Equipment Ground: Ground Bar
- Frequency Rating: 60 Hertz
- Height: 80 IN
- Hub Closing Plate: Plain Top
- Insulation: Glass Polyester
- Main Breaker Size: One 200 Ampere Main Breaker
- Material: G90 Galvanized Steel with Powder Coat Finish
- Mounting: Pedestal
- Number Branch Circuits: 4
- Number Of Jaws: 4 Terminal
- Number Of Main Breakers: 1
- Number Of Meter Positions: Single Power Head
- Number Of Receptacles: 0
- Phase: 1 Phase
- Product Family Code: PHDO
- Product Group: Metering Equipment
- Product Length: 10.27 IN
- Product Size: 10.27L x 9.875W x80H
- Product Subgroup: Meter Socket
- Product Type: Ringless Meter Socket
- Standard: UL Listed;Type 3R
- Terminal: Double Mechanical
- Unspsc Number: 39121102
- Voltage Rating: Up to 240 Volts Alternating Current
- Width: 9.875 IN
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Mobile Home Power Distribution
- Manufactured Housing Communities
- RV Parks and Campgrounds
- Temporary Power Services
- Residential Utility Connections
- Direct Bury Underground Installations
Why Choose Milbank Quality?
Milbank delivers proven reliability with UL Listed certification, Type 3R weatherproof protection, and durable G90 galvanized steel construction. The glass polyester insulation and professional powder coat finish ensure long-term performance in demanding outdoor environments, backed by comprehensive safety standards and professional-grade materials.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Mobile Home Power
- Brand Name:
- Milbank
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hertz
- Hub Closing Plate:
- Plain Top
- Insulation:
- Glass Polyester
- Main Breaker Size:
- One 200 Ampere Main Breaker
- Number Branch Circuits:
- 4
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- Single Power Head
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- PHDO
- Standard:
- UL Listed;Type 3R
- Terminal:
- Double Mechanical
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Product Group:
- Metering Equipment
- Department:
- Electrical
- Product Subgroup:
- Meter Socket
- Product Type:
- Ringless Meter Socket
- Product Size:
- 10.27L x 9.875W x80H
- Product Length:
- 10.27 IN
- Mounting Method:
- Pedestal
- Product Height:
- 80 IN
- Product Material:
- G90 Galvanized Steel with Powder Coat Finish
- Product Width:
- 9.875 IN
