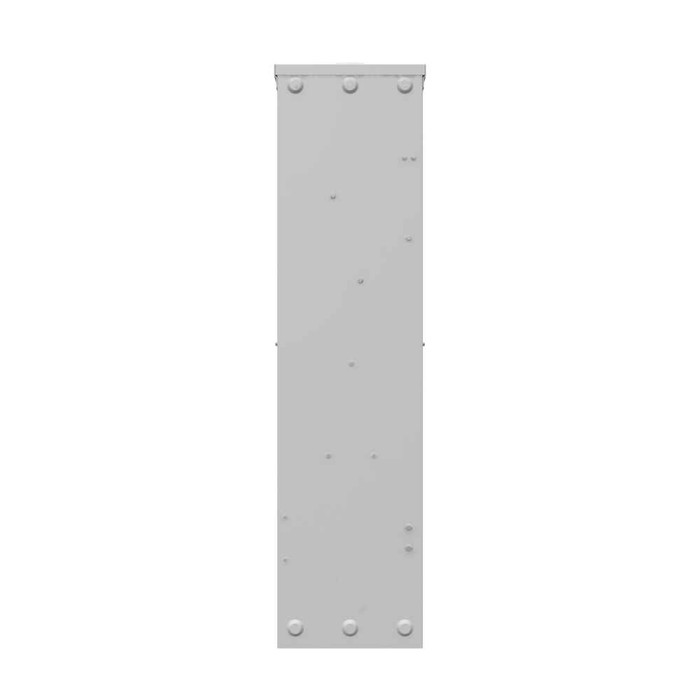

4 Terminal Ringless Small Hub Open 1-200 Ampere Main Breaker 4 Branch Circuit
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket With Main And Load Center
- Brand Name:
- Milbank
- Bypass Provision:
- No Bypass
- Cable Entry:
- Overhead
- Equipment Ground:
- Ground Bar
- Frequency Rating:
- 60 Hertz
- Height:
- 32 IN
- Hub Closing Plate:
- Small Hub Opening
- Insulation:
- Glass Polyester
- Length:
- 5.5 IN
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- One 200 Ampere Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 4 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- MTMN
- Size:
- 5.5L x 8W x32H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- Up to 240 Volts Alternating Current
- Width:
- 8 IN
