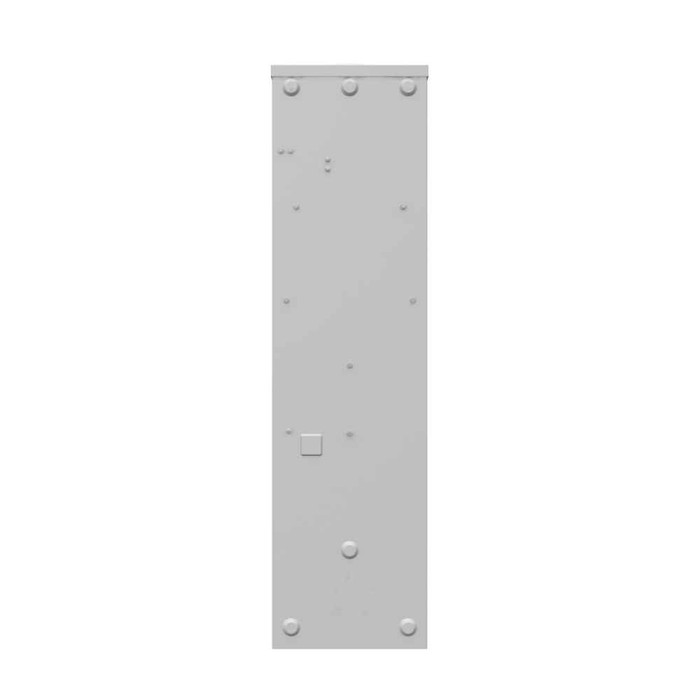

Milbank U5842-RL-KK-CECHA 4 Terminal Ringless Small Hub Open Horn Bypass 1-main Breaker Provision Commonwealth Edison Chicago Housing Authority

Milbank U5842-RL-KK-CECHA 4 Terminal Ringless Small Hub Open Horn Bypass 1-main Breaker Provision Commonwealth Edison Chicago Housing Authority

(No reviews yet) Write a Review

Model: MIL-U5842-RL-KK-CECHA
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$550.61
$500.61
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4 Terminal Ringless Small Hub Open Horn Bypass 1-main Breaker Provision Commonwealth Edison Chicago Housing Authority

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Overhead
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Height:
30 IN
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Length:
4.13 IN
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Material:
G90 Galvanized Steel with Powder Coat Finish
Mounting:
Surface Mount
Number Branch Circuits:
1
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Size:
4.13L x 8W x30H
Special Features:
Commonwealth Edison Chicago Housing Authority
Standard:
UL Listed;Type 3R
Terminal:
Lay in
Type:
Ringless Meter Socket
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Width:
8 IN
!
