Metallics JFWPB63 4 x 1-1/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.60
$0.60

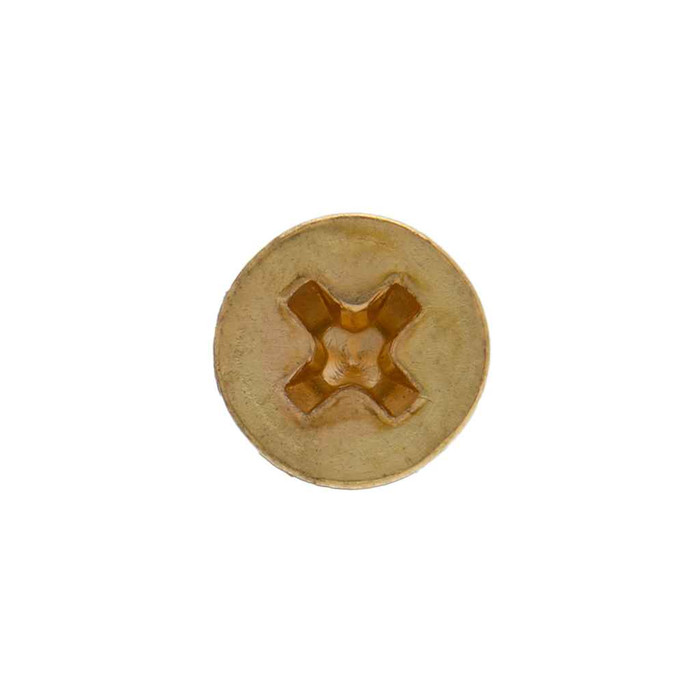

Metallics JFWPB63 4 x 1-1/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB63 4 x 1-1/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB63
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.60
$0.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4 x 1-1/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • 4 Diameter, 1-1/4" Length
    • Flat Head with Phillips Drive
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#1
Fastener Head Height:
0.067 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.195 - 0.225 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.073 - 0.089
Phillips Recess Diameter:
0.115 - 0.128
Phillips Recess Width:
0.018
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.43 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
22
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB63 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JFWPB63 brass wood screws?
A #1 Phillips bit. The JFWPB63 uses a Phillips recess sized 0.115 to 0.128 inch in diameter and 0.073 to 0.089 inch deep, which is the #1 driver range. A #2 bit will cam out and chew the recess on a soft brass head, so keep #1 bits on the driver for these.
2) Are these brass screws solid brass or brass plated?
Solid brass. The material on the JFWPB63 is brass throughout, not a plating over steel, which is why they are used where corrosion or appearance matters and where a magnetic steel screw is a problem. Brass is softer than steel, so pilot drill hardwood and drive them slowly.
3) Can I use these brass screws on a federally funded job with domestic content requirements?
No. The JFWPB63 brass wood screws are not Buy American compliant and are not ARRA compliant, and country of origin is listed as multiple. For a project with domestic sourcing language in the spec, you need a fastener carrying a Buy American declaration instead.
4) Do Metallics JFWPB63 wood screws meet a dimensional standard for spec work?
They are built to ASME B18.6.1, with the thread to ASME B18.6.1-1997. That covers head diameter, head height, recess geometry and thread form for wood screws, so the head and recess dimensions are interchangeable with any other #4 wood screw made to the same standard.
5) What are #4 x 1-1/4 in. brass flat head screws typically used for on an electrical or mechanical job?
Metallics lists this screw for the electrical, plumbing, heating and air conditioning trades. At #4 diameter it is a light-duty fastener, so the typical uses are mounting cover plates, small boxes, clamps, straps and trim to wood framing or millwork where a non-ferrous screw and a flush brass head are wanted. For structural anchoring into wood you want a heavier gauge screw.
