Metallics JFWPB62 4 x 1 in. Fl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.37
$0.37

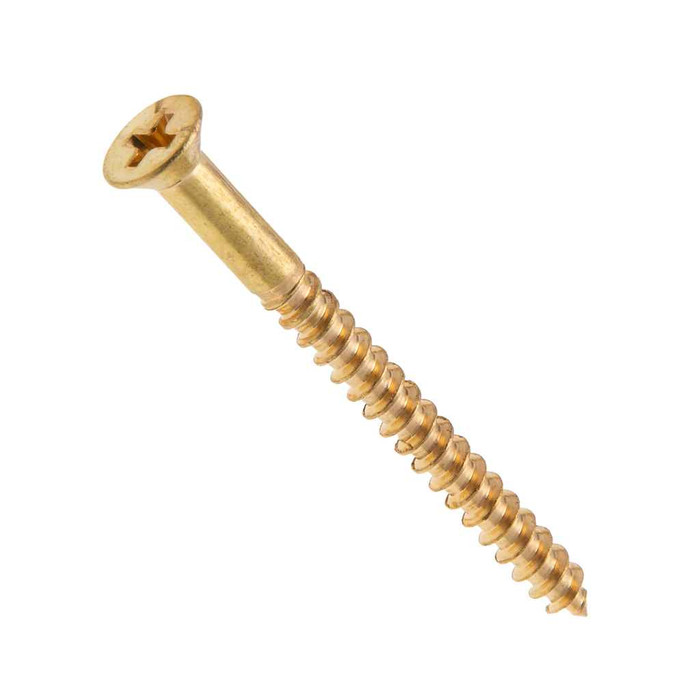

Metallics JFWPB62 4 x 1 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB62 4 x 1 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB62
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.37
$0.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4 x 1 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Flat Head with Phillips Drive
    • 4 Diameter, 1" Length
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#1
Fastener Head Height:
0.067 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.195 - 0.225 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.073 - 0.089
Phillips Recess Diameter:
0.115 - 0.128
Phillips Recess Width:
0.018
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.24 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
22
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB62 – Frequently Asked Questions

1) How many screws come in a jar of Metallics JFWPB62 brass wood screws, and can I buy fewer?
The JFWPB62 ships as a jar of 100 screws, and 100 is the order minimum. If you need a different size or count, Metallics makes other options in the JFWPB brass flat head series.
2) What size Phillips driver do I need for a #4 x 1 in. brass wood screw?
A #1 Phillips bit. The recess on the JFWPB62 runs 0.115 to 0.128 in. diameter and 0.073 to 0.089 in. deep, so a #2 bit will ride out of the recess and chew the head. Brass is soft, so stay with the #1 and keep the driver seated.
3) Are these screws Buy American or ARRA compliant for a government job?
No. The JFWPB62 brass wood screws are not Buy American compliant and are not ARRA compliant. Country of origin is listed as multiple. If your project carries a domestic-sourcing requirement, these will not qualify for the submittal.
4) How far up the shank is the JFWPB62 threaded?
At 1 in. long, the thread runs about two thirds of the length, leaving a short unthreaded shank under the head. Thread count is 22 per inch. That partial thread lets the top piece pull down tight against the bottom piece when you are fastening two layers.
5) Are brass wood screws strong enough for the job, or should I use steel?
Brass is chosen for appearance and corrosion resistance, not strength. The JFWPB62 is solid brass, which is softer than steel, so it is the right pick for visible trim, hardware plates, escutcheons, brass fittings and anywhere you want no galvanic reaction with brass parts. For structural pull or anything that will be driven hard with an impact driver, use a steel screw instead and drill a pilot hole for the brass ones.
6) Do these Metallics brass screws meet a recognized dimensional standard?
Yes. The JFWPB62 is made to ASME B18.6.1, with the thread to ASME B18.6.1-1997. That means head and thread dimensions are standard, so it interchanges with any other #4 x 1 in. flat head wood screw built to the same spec.
7) What are #4 x 1 in. brass wood screws typically used for on an electrical or mechanical job?
Metallics lists this screw for the electrical, plumbing, heating and air conditioning trades. In practice a #4 x 1 in. brass flat head goes into light-duty mounting work: securing cover plates, small brackets, clamps and wood blocking where a flush head and a non-rusting, non-magnetic fastener matter.
8) How much does a jar of 100 of these brass screws weigh for shipping?
The jar is listed at 0.24 lbs, with jar dimensions of 3 x 3 x 2.15 in. Light enough to drop into an existing parts order without affecting freight.
