Metallics JFWPB18 8 x 3/4 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.51
$0.51
Metallics JFWPB18 8 x 3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB18 8 x 3/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB18
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.51
$0.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

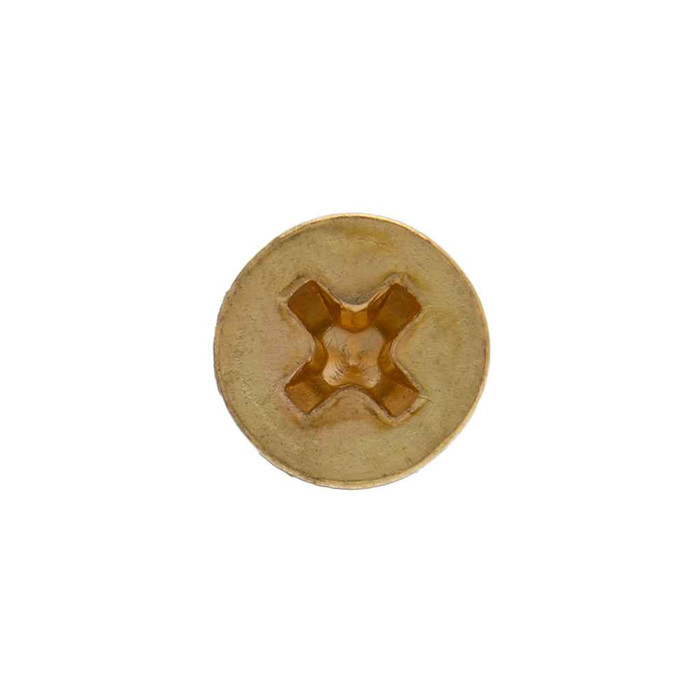

    • Flat Head with Phillips Drive
    • 8 Diameter, 3/4" Length
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.113 - 0.136
Phillips Recess Diameter:
0.191 - 0.204
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.34 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB18 – Frequently Asked Questions

1) Will a #8 brass flat head wood screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. The head measures 0.292 to 0.332 inch across with a head height of 0.100 inch, so an 82 degree countersink of that diameter brings it level with the surface. Without a countersink or a factory-countersunk plate hole, the head will stand proud.
2) Will these brass wood screws interchange with other #8 wood screws on my job?
They are built to ASME B18.6.1, the dimensional and thread standard for inch wood screws, so a #8 x 3/4 brass screw drops into the same pilot hole and countersink as any other standards-compliant #8 x 3/4 wood screw. The difference you will see is material and finish, not fit.
3) Can I use these on a federally funded or Buy American job?
No. The JFWPB18 brass wood screw is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. For a project with domestic-sourcing requirements you will need a fastener with a documented US origin.
4) What size Phillips driver do I need for Metallics JFWPB18 brass wood screws?
A #2 Phillips bit. The recess measures 0.191 to 0.204 inch in diameter and 0.113 to 0.136 inch deep, which is standard #2 territory. Brass is soft, so seat the bit fully and run the driver slow to avoid stripping the recess.
5) Is brass the right screw material for outdoor or damp locations?
Brass handles moisture and will not rust-stain finished brass or bronze hardware, which is why these are used on decorative plates, hinges and escutcheons. The trade-off is strength: brass is much softer than steel, so for structural or high-torque fastening use a steel or stainless screw instead and keep the brass for appearance-critical and corrosion-prone spots.
6) Can I get the Metallics JFWPB brass wood screw in other lengths or pack sizes?
Yes. The JFWPB series runs other diameters, lengths and quantities beyond the #8 x 3/4 inch jar of 100, available by request. Specify diameter, length and the count you need.
7) How much does a jar of these brass wood screws weigh for shipping?
A jar comes in at 0.34 lbs, with jar dimensions of 3 x 2.15 x 3 inches. Easy to carry a few jars on the truck for service calls.
