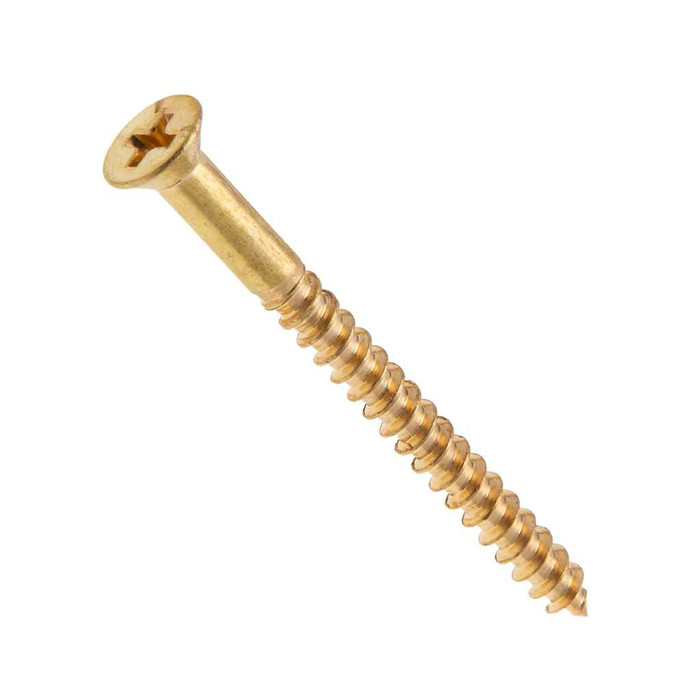

Metallics JFWPB08 8 x 7/8 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB08 8 x 7/8 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB08
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.70
$0.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 7/8 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Flat Head with Phillips Drive
    • 8 Diameter, 7/8" Length
    • Brass Material

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.100 - 0.100 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.292 - 0.332 in.
Fastener Length:
8-Jul
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.113 - 0.136
Phillips Recess Diameter:
0.191 - 0.204
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.35 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB08 – Frequently Asked Questions

1) How many screws come in a jar of Metallics JFWPB08 brass wood screws?
The JFWPB08 brass wood screws ship in a jar, with a minimum order of 100 count. So one buy gets you a 100-piece jar of the 8 x 7/8 in. flat head Phillips screws, not a single loose fastener.
2) Are these brass screws solid brass or brass plated steel?
Solid brass is the stated material for the JFWPB08 wood screw. That matters two ways: it will not rust in damp or coastal work and it stays color-matched to brass hinges and plates, but it is softer than steel, so pilot drill hardwood before driving.
3) What size Phillips driver do I need for #8 brass wood screws?
A #2 Phillips bit drives these. The recess is 0.191 to 0.204 in. diameter and 0.113 to 0.136 in. deep, which is the standard #2 geometry. Brass is soft, so run the driver at low speed and keep it seated to avoid stripping the recess.
4) Do these #8 wood screws thread all the way to the head?
No. On the JFWPB series the thread runs the full length up to 1 inch; above that, thread covers about two thirds of the shank. At 7/8 in. long, the JFWPB08 is fully threaded, which helps it bite in thin stock and short grips like a hinge leaf or a strike plate.
5) Do these brass wood screws meet a recognized dimensional standard for spec work?
They are built to ASME B18.6.1, with threads to ASME B18.6.1-1997. If a drawing or submittal calls for an ASME B18.6.1 #8 flat head Phillips wood screw, the head, recess, and thread dimensions on the JFWPB08 are to that standard.
6) Can I use these screws on a Buy American or ARRA funded project?
Metallics lists the JFWPB08 as both Buy American compliant and ARRA compliant. Country of origin is China. For federally funded work, check which clause your contract actually invokes, since the compliance flag and the origin need to be read together by your procurement officer.
7) What thread pitch do Metallics #8 brass wood screws have, and will they hold in softwood?
15 threads per inch on the #8 diameter. That coarse a pitch is what you want in pine, fir, and plywood, where the deeper thread form grabs the fiber. In hardwood, drill a pilot first; the brass shank will shear before the wood gives.
8) Are brass wood screws a good choice for mounting electrical cover plates and device boxes in wood?
That is the application these are catalogued for. The JFWPB08 is a #8 x 7/8 in. flat head Phillips wood screw in brass, sized to pull a plate or bracket flush against wood without a long grip. Brass is non-magnetic and corrosion resistant, which is why it gets specified around fixtures and trim where a rusting steel screw would stain the finish.
9) How much does a jar of 100 Metallics brass wood screws weigh and how big is the container?
Shipping weight is 0.35 lbs, and the jar measures 3 in. by 3 in. by 2.15 in. Light enough to keep several sizes on the truck without eating load space.
