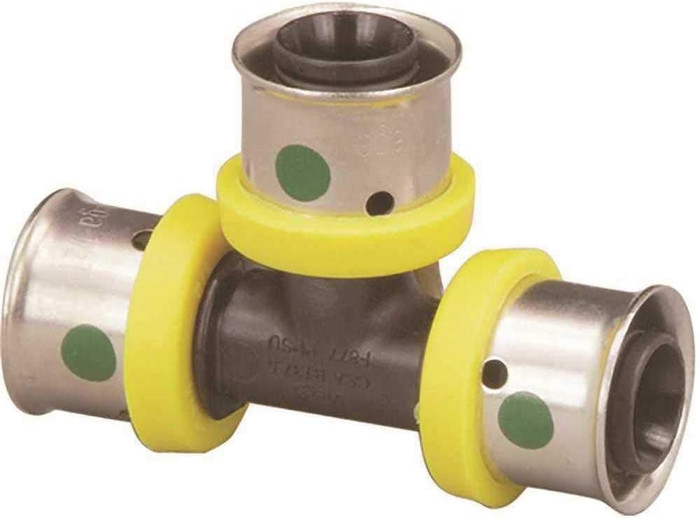

49334 Viega PureFlow Press tee Smart Connect technology Polymer, 1/2'' x 1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made In USA
- Material Type:
- Polymer
- Product Dimension:
- 1/2'' x 1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.524"
- Product Height:
- 1.087"
- Product Weight:
- 0.052 lbs
- Product Width:
- 1.736"
Viega 49334 – Frequently Asked Questions
1) What size PEX does the Viega 49334 PureFlow press tee take on each port?
The Viega 49334 is a reducing tee sized 1/2 inch x 1/2 inch x 3/4 inch, so two ports take 1/2 inch PEX and one takes 3/4 inch. Port order is P1 x P2 x P3, meaning the two runs are the 1/2 inch ends and the 3/4 inch is the third port. Use it where a 3/4 inch branch or main meets 1/2 inch lines, typically a fixture drop off a 3/4 inch trunk.
2) Is the Viega 49334 tee metal or plastic, and where does that matter?
It's a polymer body, not brass or bronze. Polymer PureFlow fittings are the usual pick where water chemistry is aggressive toward copper alloys or where a job spec calls out non-metallic fittings. If your spec requires a metallic fitting, this part won't satisfy it. The part is made in the USA.
3) Do I need a special tool to install the Viega 49334, or can I crimp it?
This is a press fitting, not a crimp-ring fitting. It installs with a Viega PureFlow press tool and jaw sized for the connection, and the Smart Connect feature lets water seep past an unpressed connection during pressure test so a missed joint shows itself before the walls close up. A crimp or cinch tool will not make this joint.
4) How much room do I need to fit this 1/2 x 1/2 x 3/4 press tee in a stud bay?
The fitting measures 2.524 inches long, 1.736 inches wide and 1.087 inches high. That's the fitting alone, so add clearance for the press jaw to close around each port before you commit to a tight bay or a joist bore layout.
5) Can I use the Viega 49334 polymer tee with copper or PEX-AL-PEX?
No. PureFlow press fittings are made for PEX tubing at the stated 1/2 inch and 3/4 inch sizes. Copper tube needs a ProPress fitting, and multilayer tubing needs the fitting system rated for it. Transitioning to copper means a separate adapter, not this tee.
6) Which Viega part number do I order for a 1/2 x 1/2 x 3/4 PureFlow polymer press tee?
Viega part 49334. That number covers the polymer PureFlow press tee in the 1/2 x 1/2 x 3/4 configuration with Smart Connect. Viega sizes tees by port order, so a 3/4 x 1/2 x 1/2 or 1/2 x 3/4 x 1/2 arrangement is a different part number even though the same three sizes appear.
7) Is the Viega 49334 a single fitting or a bag, and what does one weigh?
Model 49334 is a single tee, weighing 0.052 lbs. Useful if you're estimating box weight on a large rough-in order: a hundred of them is a little over five pounds of fittings.
