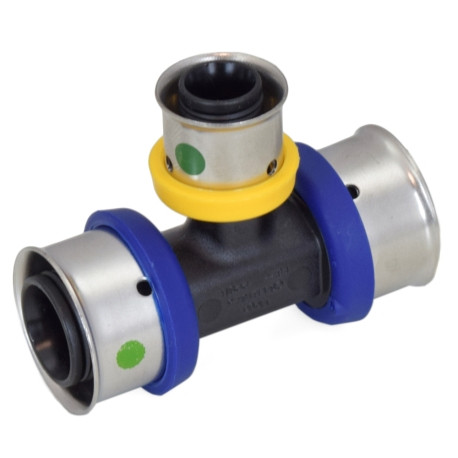

49443 Viega PureFlow Press tee Smart Connect technology Polymer, 3/4'' x 3/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made In USA
- Material Type:
- Polymer
- Product Dimension:
- 3/4'' x 3/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.362"
- Product Height:
- 1.087"
- Product Weight:
- 0.059 lbs
- Product Width:
- 1.823"
Viega 49443 – Frequently Asked Questions
1) What pipe sizes does the Viega 49443 PureFlow press tee connect?
The 49443 is a reducing tee: 3/4 inch on both run ends and 1/2 inch on the branch. All three ends are PEX press connections (P1 x P2 x P3), so it drops a 1/2 inch branch line off a 3/4 inch main without an extra coupling or reducer.
2) Does the Viega 49443 work with PEX crimp rings or is it press only?
Press only. This is a PureFlow press tee with press connections on all three ends, so it is installed with a Viega press tool and jaws sized for PEX press. Crimp rings, cinch clamps and expansion sleeves are different systems and will not make up this fitting.
3) Is the Viega 49443 tee brass or plastic?
Polymer, not metal. That matters on jobs where dezincification or potable water chemistry rules out brass, and it keeps the fitting light at 0.059 lbs. If your spec calls specifically for a bronze or brass PureFlow tee, this is not that part.
4) How much room do I need to fit a 3/4 x 3/4 x 1/2 PureFlow press tee in a stud bay?
The 49443 measures 2.362 inches long, 1.823 inches wide and 1.087 inches high. That is the fitting body only, so allow additional clearance for the press tool jaw to close around each connection before you commit to a tight bay or a joist bore.
5) What does Smart Connect do on this Viega tee?
Smart Connect is the feature that lets an unpressed connection leak on purpose during pressure test, so a missed joint shows itself before the wall closes up. On a branch tee like the 49443 with three separate presses, that is the practical value: you find the one you skipped.
6) For a government or institutional job with domestic sourcing requirements, where is the Viega 49443 made?
Made in USA. For procurement packages that carry a domestic-content clause, the 49443 PureFlow press tee is sourced accordingly.
7) What part number do I order for a Viega PureFlow polymer press tee 3/4 x 3/4 x 1/2?
Order Viega model 49443. It is the polymer PureFlow press tee in the 3/4 x 3/4 x 1/2 inch configuration, and the manufacturer part number and model designation are the same four digits.
