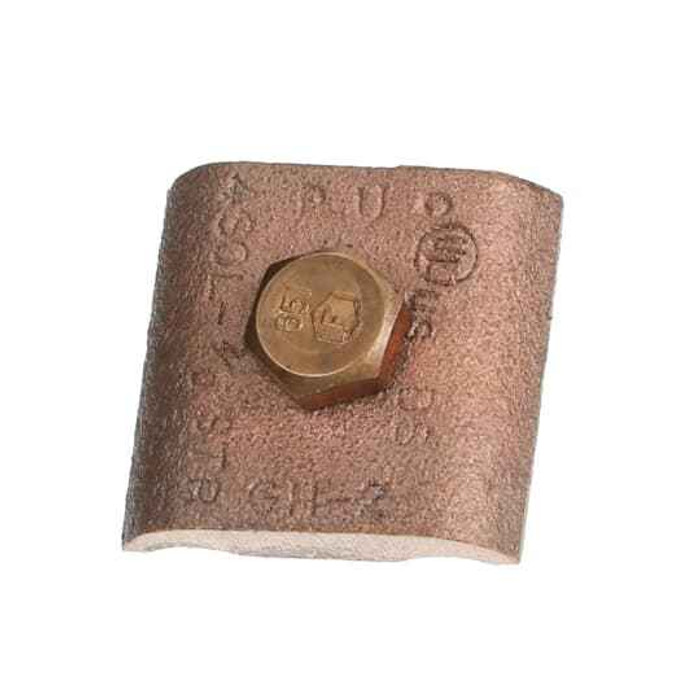

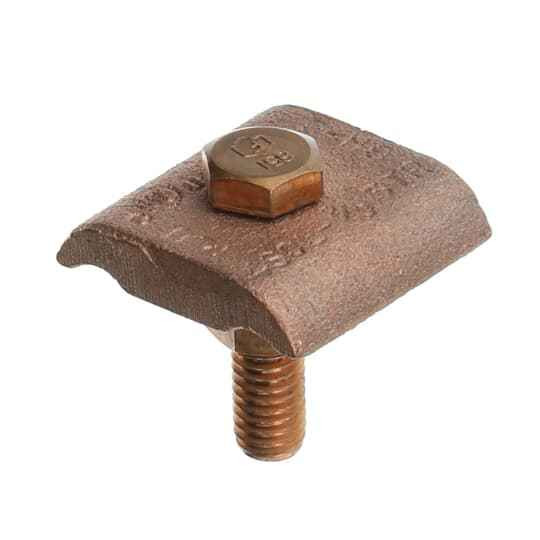

4SOL-2/0STR BRONZE PARALLEL SINGLE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Bronze
- Product Group:
- Grounding & Bonding
- Product Type:
- Ground Clamp
- Selling Unit Of Measure:
- each
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
Blackburn GHS2-TB – Frequently Asked Questions
1) What conductor sizes does the Blackburn GHS2-TB ground clamp take?
The GHS2-TB accepts conductors from 4 AWG solid through 2/0 AWG stranded. That covers the usual grounding electrode conductor range on residential and light commercial services, including 4 and 6 AWG solid copper for ground rods and water pipe bonds.
2) Is the Blackburn GHS2-TB clamp bronze, and can it be used on a copper water pipe ground?
Bronze body. Bronze is the standard direct-burial-rated grounding clamp material and it is galvanically compatible with copper conductors and copper water pipe, so it will not set up the dissimilar-metal corrosion you get pairing aluminum hardware with copper.
3) What is a parallel ground clamp and when would I use one instead of a pipe clamp?
A parallel clamp like the GHS2-TB lays the conductor alongside the ground rod or bonding point and clamps the two together in parallel, rather than wrapping a strap around a pipe. Use it where you are tapping a conductor to a rod or a flat bonding surface. If you are bonding to a water pipe by diameter, you want a pipe-style ground clamp sized to that pipe OD instead.
4) Does the GHS2-TB hold one conductor or two?
Single conductor. It is a single-conductor parallel clamp, so if you need to land two runs at one point you will need a second clamp or a two-conductor model.
5) How is the Blackburn GHS2-TB sold, and where is it made?
Sold individually, each, not in a carton lot, so you can order the exact count for a service or a panel bond. Manufactured in the United States, which matters if your project carries a domestic-content requirement.
