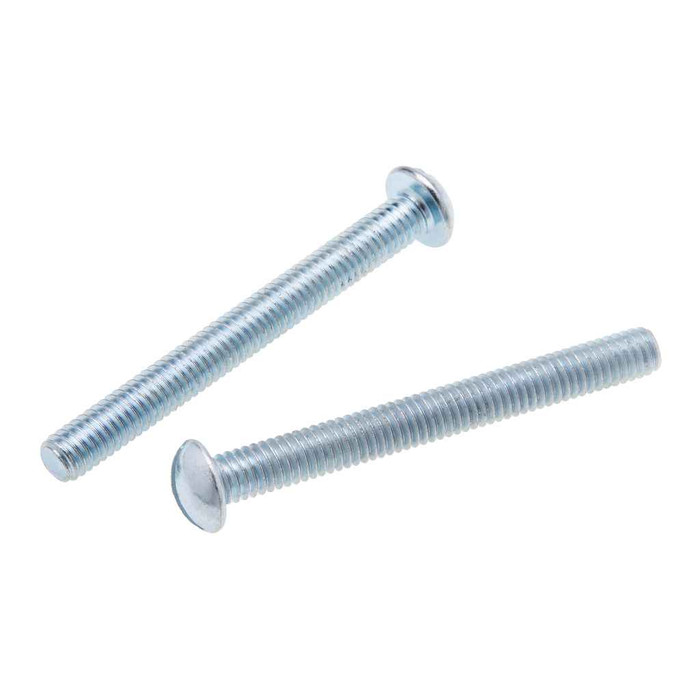

Metallics JRM16SLT 5-40 x 3/8 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JRM16SLT 5-40 x 3/8 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM16SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.16
$0.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5-40 x 3/8 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Round head with slotted Drive
    • 5-40 Diameter, 3/8" Length
    • Steel Zinc Material

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Type:
Round
Fastener Length:
8-Mar
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.2 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
40
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM16SLT – Frequently Asked Questions

1) Will a 5-40 machine screw thread into a standard 5-40 tapped hole or nut?
Yes. The Metallics JRM16SLT is a 5-40 machine screw, meaning a #5 diameter with 40 threads per inch, which is the standard coarse (UNC) pitch for a #5 screw. It mates with any 5-40 tapped hole, 5-40 nut, or device strap drilled and tapped to that thread. If your hole measures out as 5-44, this screw will not run in.
2) Will zinc plated steel machine screws hold up outdoors or in a damp location?
The JRM16SLT is zinc plated carbon steel, which is a mild indoor corrosion coating, fine for panels, boxes, and dry interior work. For wet, washdown, or exterior locations use a stainless 5-40 round head slotted screw instead. Note that tensile values published for stainless machine screws are approximations, since there is no single performance standard for them.
3) Do I need a Phillips driver for these Metallics 5-40 screws?
No. These are slotted drive, so a flat-blade screwdriver is what you want, the same blade electricians use on terminal screws. Metallics also builds combination (combo) head fasteners, but the JRM16SLT is slotted only.
4) How strong are these 5-40 steel machine screws?
Minimum tensile strength is 60,000 psi, with hardness in the Rockwell B70 to B100 range, made from low carbon steel in the AISI 1006 to 1022 range. That is standard commercial low carbon machine screw material, suitable for mounting devices, covers, and brackets, not for structural or high torque load paths.
5) How do these Metallics machine screws come packaged, and is there a minimum order?
The JRM16SLT ships as a jar of 100 pieces, and 100 count is the order minimum. The packed jar weighs 0.2 lbs. Metallics states other sizes and quantities are available by request.
6) Do these screws meet Buy American or ARRA requirements for a public project?
The JRM16SLT carries both ARRA and Buy American compliance flags in the manufacturer's data, with country of origin listed as China. Agencies vary in how they treat that pairing, so match the flags against your project's specific procurement clause before you submit.
7) What is a 5-40 round head slotted machine screw actually used for in electrical work?
Machine screws like the JRM16SLT thread into pre-tapped holes or nuts rather than cutting their own thread in wood or sheet metal. The #5 diameter is a small size used for device, cover, and small bracket attachment inside boxes and enclosures. If you are fastening into sheet metal with no tapped hole, you want a self-tapping sheet metal screw instead.
