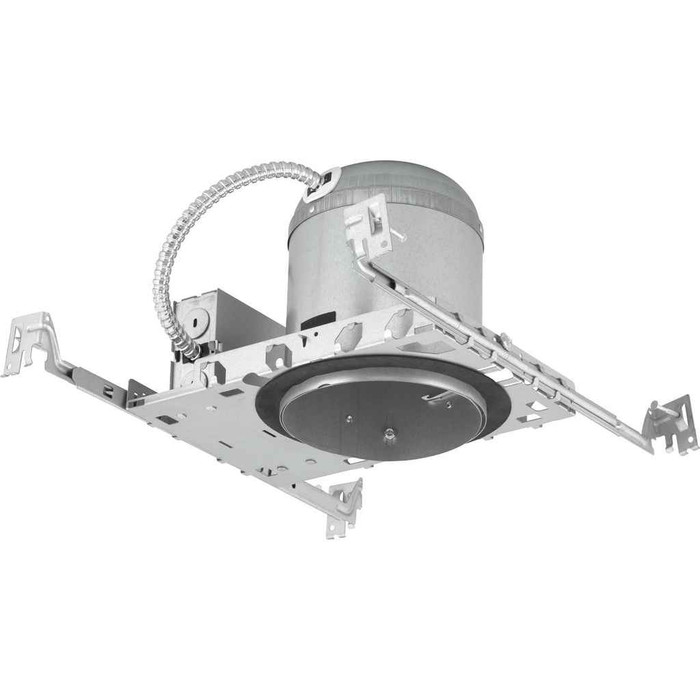

Progress Lighting P851-ICAT 5" Recessed Incandescent New Construction IC Housing, Air-Tight Housing

Progress Lighting 5" Recessed Incandescent New Construction Housing - IC Rated Air-Tight Steel Construction

(No reviews yet) Write a Review

Model: P851-ICAT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$77.29
$27.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Progress Lighting 5" Recessed Incandescent New Construction Housing - IC Rated Air-Tight Steel Construction

Professional IC Rated Air-Tight Housing for New Construction Applications

Progress Lighting delivers professional-grade recessed lighting solutions with this 5" new construction housing featuring IC rated air-tight design. Built with durable steel construction and engineered for ceiling mount applications, this housing provides reliable performance for residential and commercial installations. The air-tight design ensures energy efficiency while the IC rating allows safe installation in direct contact with insulation.

Professional Features & Benefits

  • IC Rated Air-Tight Design: Allows safe installation in direct contact with insulation while preventing air leakage for enhanced energy efficiency
  • 5" Housing with 5.5" Ceiling Opening: Provides optimal light distribution and easy installation in standard ceiling applications
  • Steel Construction: Ensures long-lasting durability and reliable structural integrity in demanding environments
  • 75W Medium Base Socket: Accommodates standard E26 incandescent bulbs up to 75 watts for versatile lighting options
  • 120V Hardwired Operation: Professional electrical connection ensures consistent power delivery and reliable performance
  • cULus Listed for Dry Locations: Meets rigorous safety standards for professional installation confidence
  • 1-Year Limited Warranty: Backed by Progress Lighting quality assurance for peace of mind

Technical Specifications

  • Americans With Disabilities Act: No
  • Can Be Mounted Up Or Down: No
  • Carton Quantity: 1
  • Category General: Recessed
  • Ceiling Opening Recessed: 5.5 in
  • Certified Listed: cULus
  • Certified Listed Location: Dry Location Listed
  • Color Generic: Unfinished
  • Construction Material Main: Steel
  • Convertible Fixture Includes Both Mounts: No
  • Darksky: No
  • Dusk To Dawn: No
  • Energy Efficient: No
  • Energy Star Certified: No
  • Finish Name: Unfinished
  • Ja8: No
  • Lamp Type: Medium Base
  • Lamp Wattage: 75 W
  • Mount Location: Ceiling
  • Mounting For Outlet Box Included: No
  • Number Of Lamps: 1
  • Number Of Lamps Total: 1
  • Other Heavy Metal Content Indicator: No
  • Photocell: No
  • Power Source: Hardwired
  • Power Source Required : Yes
  • Product Color: Unfinished
  • Product Dimensions: 13.25 in x 14.75 in x 7.25 in
  • Product Height: 7.25 in
  • Product Length: 13.25 in
  • Product Style: Utilitarian/Commodity
  • Product Weight: 0.5 lb
  • Product Width: 14.75 in
  • Socket Base Type Main: E26
  • Title 20: Yes
  • Title 22: No
  • Title 24: No
  • Voltage Rating: 120 V
  • Warranty Length: 1-year limited warranty
  • Width Diameter Descriptor: W.

Professional Applications

  • Residential New Construction Projects
  • Commercial Office Buildings
  • Retail Establishments
  • Multi-Unit Properties
  • Professional Offices
  • Light Commercial Facilities
  • Hospitality Venues

Why Choose Progress Lighting Quality?

Progress Lighting delivers trusted performance with professional-grade steel construction and cULus listing for dry location safety compliance. The 1-year limited warranty demonstrates the manufacturer's commitment to quality and reliability in demanding lighting applications.

Manufacturer Resources

Product Specs

Americans With Disabilities Act:
No
Can Be Mounted Up Or Down:
No
Carton Quantity:
1
Category General:
Recessed
Ceiling Opening Recessed:
5.5 in
Certified Listed:
cULus
Certified Listed Location:
Dry Location Listed
Color Generic:
Unfinished
Construction Material Main:
Steel
Convertible Fixture Includes Both Mounts:
No
Darksky:
No
Dusk To Dawn:
No
Energy Efficient:
No
Energy Star Certified:
No
Finish Name:
Unfinished
Ja8:
No
Lamp Type:
Medium Base
Lamp Wattage:
75 W
Mount Location:
Ceiling
Mounting For Outlet Box Included:
No
Number Of Lamps:
1
Number Of Lamps Total:
1
Other Heavy Metal Content Indicator:
No
Photocell:
No
Power Source:
Hardwired
Power Source Required :
Yes
Product Color:
Unfinished
Product Dimensions:
13.25 in x 14.75 in x 7.25 in
Product Height:
7.25 in
Product Length:
13.25 in
Product Style:
Utilitarian/Commodity
Product Weight:
0.5 lb
Product Width:
14.75 in
Socket Base Type Main:
E26
Title 20:
Yes
Title 22:
No
Title 24:
No
Voltage Rating:
120 V
Warranty Length:
1-year limited warranty
Width Diameter Descriptor:
W.

Progress Lighting P851-ICAT – Frequently Asked Questions

1) What size ceiling hole do I cut for the Progress Lighting P851-ICAT 5 inch recessed housing?
Cut a 5.5 inch ceiling opening for the P851-ICAT. That is the rough opening the housing is built around, so trim rings for 5 inch recessed cans will cover it. Plan the joist bay too: the housing with its bar hangers measures 13.25 x 14.75 x 7.25 inches, so you need about 7-1/4 inches of plenum depth above the ceiling plane.
2) Can this recessed housing be buried in blown-in or batt insulation?
Yes. The P851-ICAT is an IC rated air-tight housing, so it can sit in direct contact with insulation and it is sealed against air leakage between the conditioned space and the attic. That is the housing you want in an insulated ceiling or top floor; a non-IC can has to be held back from insulation with a dam.
3) Is this housing for new construction or can I retrofit it into an existing ceiling?
New construction only. The P851-ICAT mounts to the framing with its hanger bars before the ceiling goes up, which is why the overall assembly runs 13.25 x 14.75 inches across the joist bay. For an existing finished ceiling you need a remodel housing that clips to the drywall through the cut hole.
4) What bulb does the Progress P851-ICAT recessed can take, and what is the max wattage?
One medium base E26 lamp, 75W maximum, on 120V. That is the standard screw base, so an LED retrofit lamp or BR/PAR incandescent in E26 will thread right in. Do not exceed the 75W rating with an incandescent.
5) Can I use this recessed housing in a bathroom with a shower, or on a covered porch?
No. The P851-ICAT is cULus listed for dry locations only, so keep it out of showers, tub enclosures, and any exterior or covered outdoor ceiling. Those openings need a damp or wet location listed housing.
6) Will this Progress housing meet California Title 24 for a new residential build?
No. The P851-ICAT is a 120V incandescent housing with a medium base socket. It carries Title 20 compliance but is not Title 24 or JA8, and it is not Energy Star or listed as energy efficient. For California new residential recessed lighting you need a JA8 compliant LED luminaire instead.
7) Is this recessed housing hardwired, and does it include an outlet box mount?
Hardwired, 120V line voltage, with no plug and no outlet box mounting hardware included. Branch circuit power has to be run to the integral junction box, so this is an electrician's install, not a plug-in fixture.
8) I need to standardize recessed cans across a multi-family build. Is this housing durable enough for commercial corridors and units?
The P851-ICAT is a steel-bodied utilitarian housing, which is the normal spec for repeat installs in apartments, offices, and retail where the trim does the aesthetic work. Since it is dry location listed, use it for interior ceilings and spec a damp-rated housing for bath and exterior soffit locations in the same building.
9) Can this recessed can be aimed up, like in a soffit or floor-level application?
No. It is a ceiling-mount downlight only and is not a convertible fixture, so there is no up-mount configuration and no second mounting kit in the box.
