Milbank U4702-X-5T9-K3-K2-IL 5...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$921.54
$871.54

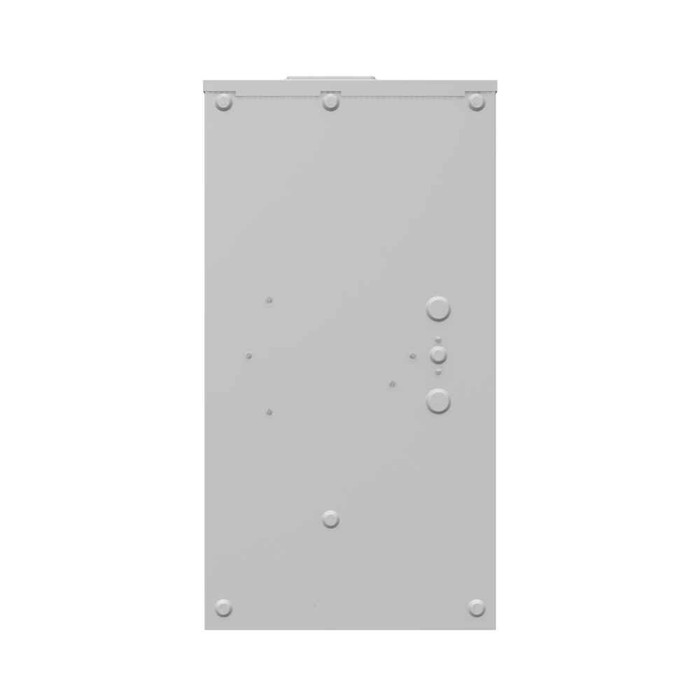

Milbank U4702-X-5T9-K3-K2-IL 5 Terminal Ringless Large Closing Plate Lever Bypass 5th Terminal 9 Oclock Position Single Connector 4-600kcmil Double Connector 6-350kcmil 7-16 In Knockouts Lock Provision

Milbank U4702-X-5T9-K3-K2-IL 5 Terminal Ringless Large Closing Plate Lever Bypass 5th Terminal 9 Oclock Position Single Connector 4-600kcmil Double Connector 6-350kcmil 7-16 In Knockouts Lock Provision

(No reviews yet) Write a Review

Model: MIL-U4702-X-5T9-K3-K2-IL
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$921.54
$871.54
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5 Terminal Ringless Large Closing Plate Lever Bypass 5th Terminal 9 Oclock Position Single Connector 4-600kcmil Double Connector 6-350kcmil 7-16 In Knockouts Lock Provision

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Barrel Lock Provision:
7/16 Inch Knockout for Barrel Lock Provision
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Height:
28.25 IN
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Length:
4.844 IN
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Load Side Wire Range:
Two 6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Material:
G90 Galvanized Steel with Powder Coat Finish
Mounting:
Surface Mount
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
5T32
Size:
4.844L x 15W x28.25H
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Type:
Ringless Meter Socket
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Width:
15 IN
!
