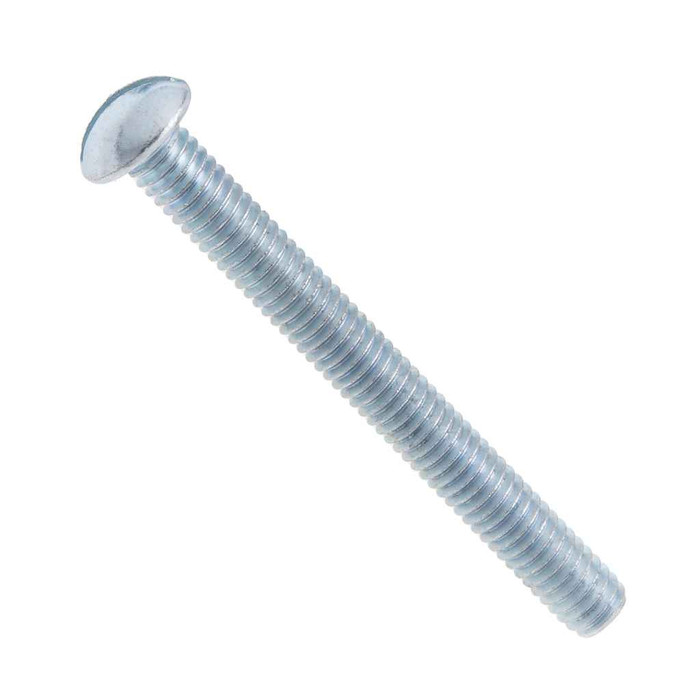

Metallics RM146SLT 5/16-18 x 4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics RM146SLT 5/16-18 x 4 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RM146SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5/16-18 x 4 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • 5/16-18 Diameter, 4" Length
    • Steel Zinc Material
    • Round head with slotted Drive

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.198 - 0.216 in.
Fastener Head Type:
Round
Fastener Head Width:
0.557 - 0.59 in.
Fastener Length:
4
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Box
Product Group:
Fasteners
Product Height:
3.25 in
Product Length:
7.25 in
Product Weight:
7.15 lbs
Product Width:
6.75 in
Recess Penetration Gaging Depth:
0.144 - 0.170
Slot Depth:
0.099 - 0.132
Slot Width:
0.072 - 0.084
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
18
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
RM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics RM146SLT – Frequently Asked Questions

1) Will a 5/16-18 machine screw thread into a standard 5/16 UNC tapped hole or nut?
Yes. The Metallics RM146SLT is a 5/16-18 UNC thread, 18 threads per inch, so it mates with any standard coarse-thread 5/16 nut, strut nut, or tapped 5/16-18 hole. It is a machine screw, so it needs an existing tapped hole or a nut, not a pilot hole in wood or sheet metal.
2) How strong are these 5/16-18 steel machine screws?
Minimum tensile strength is 60,000 psi, with hardness Rockwell B70 to B100, made from AISI 1006 to 1022 low carbon steel. That is standard low carbon machine screw material, fine for mounting boxes, panels, fixtures and brackets. It is not a graded structural bolt, so for a load-bearing structural connection specify a Grade 5 or Grade 8 hex bolt instead.
3) Do these Metallics machine screws meet Buy American and ARRA requirements for a public project?
Metallics lists the RM146SLT as both Buy American compliant and ARRA compliant, which is what a government, education or healthcare procurement file usually needs on a fastener line item. Country of origin is listed as multiple, so if your spec requires a single named origin on the submittal, confirm the origin on the lot you receive.
4) Can I drive these slotted machine screws with a power driver, or is it hand tools only?
Drive is a single slot, 0.072 to 0.084 in. wide and 0.099 to 0.132 in. deep. A slot gives the bit no self-centering, so a flat blade in a hand screwdriver is the practical way to run them. If you want to drive 100 screws on a power tool, pick a Phillips or combo head version instead.
5) Are zinc plated machine screws OK outdoors or in a wet location?
The finish is zinc plating over steel, which is a mild indoor corrosion coating. It handles dry interior electrical and mechanical work, but in wet, damp, coastal or chemically aggressive locations zinc will eventually rust through. For those openings specify a stainless machine screw in the same 5/16-18 x 4 size.
6) How many 5/16-18 x 4 in. screws come in a box of Metallics RM146SLT?
They ship as a 100 count box, and 100 is the order minimum, so one purchase gets you the full box rather than a single screw. Box weight is listed at 7.15 lbs.
7) Does the RM146SLT come with nuts or washers?
No. The RM146SLT box is screws only, 100 of the 5/16-18 x 4 in. round head slotted screws. Order 5/16-18 hex nuts and any flat or lock washers separately, or thread them into an existing 5/16-18 tapped hole.
8) What trades actually use a 4 inch long round head machine screw like this?
Metallics targets the RM146SLT at electrical, plumbing, heating and air conditioning work. The 4 inch length is for through-bolting where a short screw will not reach: deep box and enclosure mounting, standoff brackets, strut and channel assemblies, and equipment hangers where the screw passes a spacer or insulation before picking up a nut.
