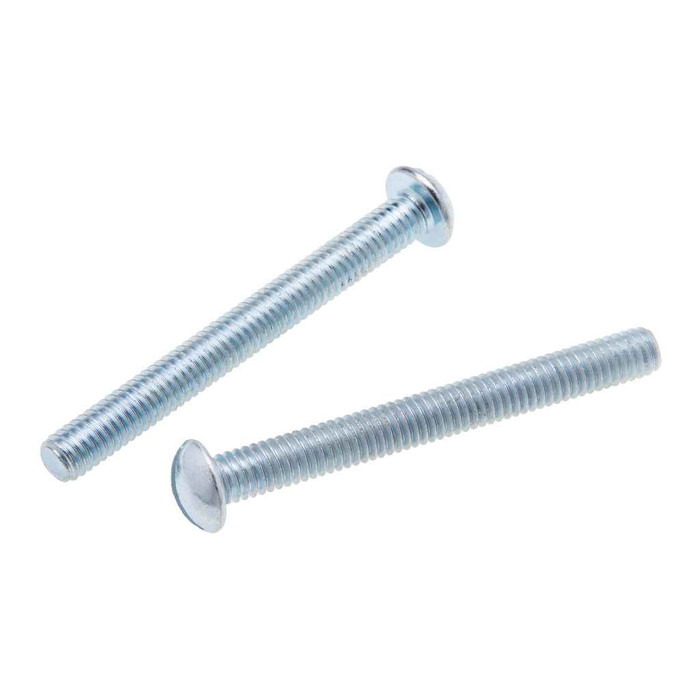

Metallics JRM115SLT 5/16-18 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JRM115SLT 5/16-18 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM115SLT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.64
$0.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5/16-18 x 2 in. Round Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • 5/16-18 Diameter, 2" Length
    • Steel Zinc Material
    • Round head with slotted Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.198 - 0.216 in.
Fastener Head Type:
Round
Fastener Head Width:
0.557 - 0.59 in.
Fastener Length:
2
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Recess Penetration Gaging Depth:
0.144 - 0.170
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Slot Depth:
0.099 - 0.132
Slot Width:
0.072 - 0.084
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
18
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM115SLT – Frequently Asked Questions

1) What thread size and length is the Metallics JRM115SLT machine screw?
It's a 5/16-18 machine screw, 2 inches long, with 18 threads per inch. That's the coarse (UNC) pitch for 5/16 diameter, so it mates with standard 5/16-18 nuts and tapped holes. Thread is cut the full machine-screw style, not a tapping thread, so the hole has to be tapped or you need a nut on the back side.
2) Will a round head slotted screw sit flush in a countersunk hole?
No. The JRM115SLT has a round head that stands proud of the surface, measuring 0.557 to 0.59 in. across and 0.198 to 0.216 in. high. If your part is countersunk for a flush finish, you need a flat head screw instead. Round head works where you have a plain drilled hole and want bearing surface against the material.
3) How strong are these screws, and can I use them for a structural connection?
Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70-B100, which is ordinary low-carbon machine screw material (AISI 1006 to 1022). That's fine for mounting devices, enclosures, brackets, and trim. It is not a graded structural fastener, so if your drawing calls out a grade or a bolt spec, use a graded bolt rather than this screw.
4) Can I use these on a Buy American or ARRA-funded job?
No. The JRM115SLT is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. For federally funded work with domestic-content requirements, you'll need a domestically sourced fastener.
5) Is the zinc plating on these Metallics screws good enough for outdoor or damp locations?
These are carbon steel with a zinc finish, which is a dry-location plating. It handles indoor panel work, device mounting, and enclosure interiors fine, but in exterior, wash-down, or coastal use the plating will eventually give up and rust. For wet or corrosive spots, specify a stainless machine screw in the same 5/16-18 x 2 in. size.
6) Do I have to buy a full jar of these, or can I order a few?
They ship as a jar with a 100-count minimum, so the smallest order is 100 pieces of JRM115SLT. Metallics notes other sizes and quantities are available by request if 5/16-18 x 2 in. isn't the length you need.
