Metallics TM63 6-32 x 1 in. Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.27
$0.27

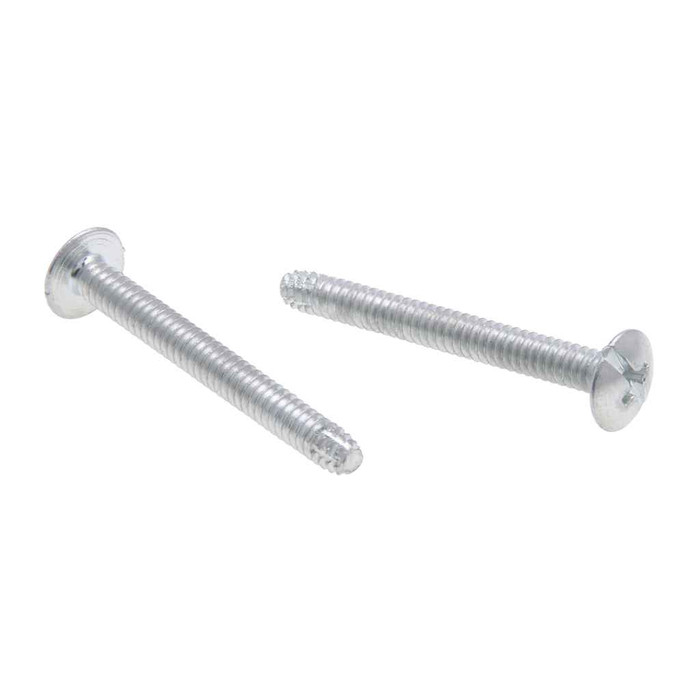

Metallics TM63 6-32 x 1 in. Truss Head Combo Receptacle Screws - Steel Zinc - 100qty

Metallics TM63 6-32 x 1 in. Truss Head Combo Receptacle Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: TM63
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.27
$0.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 1 in. Truss Head Combo Receptacle Screws - Steel Zinc - 100qty

  • Features

    • Truss head with slotted and Phillips Drive
    • Steel Zinc Material
    • 6-32 Diameter, 1" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Division:
Electrical H1
Product Group:
Fasteners
Sub Division:
Electrical-E H2
Department:
Electrical
Product Subgroup:
Screws
Product Material:
Steel Zinc

Metallics TM63 – Frequently Asked Questions

1) Will a Metallics TM63 screw thread into a standard receptacle or switch yoke?
Yes. The TM63 is a 6-32 machine screw, which is the standard thread for receptacle, switch, and device yokes as well as most plaster rings and device box mounting holes. Thread size is 6-32 and length is 1 inch.
2) What driver do I need for Metallics TM63 receptacle screws?
Either one. The truss head is a combo drive, slotted and Phillips, so a flat blade or a #2 Phillips both seat. On a panel of devices that means you are not switching bits between the screw and whatever else is on the plate.
3) Are Metallics TM63 screws okay for damp locations or exterior boxes?
The TM63 is zinc plated steel, which handles normal indoor and protected conditions. It is plated carbon steel, not stainless, so for wet exterior, coastal, or washdown work specify a stainless 6-32 machine screw instead.
4) Can I use the TM63 to mount a cover plate as well as the device?
No. Cover plates take 6-32 oval head or plate screws that finish flush in the countersunk hole; a 1 inch truss head will bottom out on the plate face and sit proud. Use the TM63 for mounting the device to the box and a dedicated plate screw for the cover.
5) Is the truss head on the TM63 going to interfere with the cover plate?
Truss heads are wide and low profile, which is why they are specified for device mounting: the broad bearing surface spans the slot in the yoke and the shallow crown clears the back of a standard cover plate. A pan or round head of the same size sits taller and is more likely to foul the plate.
6) What is the Metallics part number for the 6-32 x 1 inch truss head combo receptacle screw?
Metallics TM63. That one model number covers the 6-32 x 1 inch truss head combo drive screw in zinc plated steel, so it is the number to put on a purchase order or a restock list.
