Metallics JFM17 6-32 x 3/8 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.13
$0.13

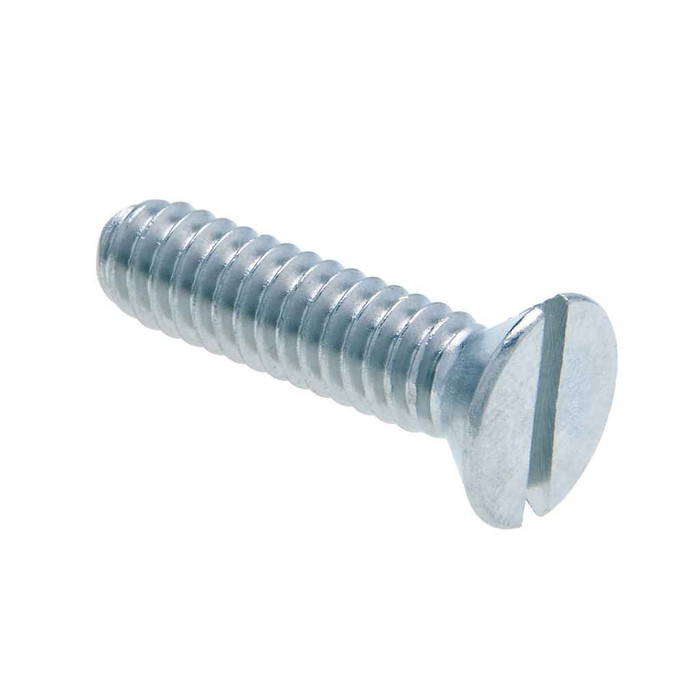

Metallics JFM17 6-32 x 3/8 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM17 6-32 x 3/8 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM17
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$0.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6-32 x 3/8 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • 6-32 Diameter, 3/8" Length
    • Flat head with slotted Drive
    • Zinc yellow screws are popular in electronics applications.
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.069 - 0.083 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.238 - 0.262 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.21 lbs
Product Width:
3 in
Slot Depth:
0.024 - 0.038
Slot Width:
0.039 - 0.048
Sub Division:
Electrical-E H2
Tensile Strength:
550 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM17 – Frequently Asked Questions

1) Does the flat head on the JFM17 sit flush, and what countersink does it need?
It is a flat head, which seats flush in a countersunk hole rather than standing proud. Head width runs 0.238 to 0.262 in. and head height 0.069 to 0.083 in., so the countersink needs to clear roughly a quarter inch across. Head geometry follows ASME B18.6.3-1998.
2) What driver fits these Metallics 6-32 flat head screws?
They take a slotted (flat blade) driver. The slot is 0.039 to 0.048 in. wide and 0.024 to 0.038 in. deep, so a small cabinet-tip screwdriver with a blade thin enough to bottom in the slot drives them without camming out. There is no Phillips recess on this one.
3) How many 6-32 x 3/8 flat head screws come in a jar of JFM17?
They ship 100 to a jar, and the jar is the order minimum. The packed jar weighs 0.21 lbs. Metallics notes other sizes and quantities are available by request.
4) Are these zinc machine screws steel or stainless, and will they hold up in a damp location?
Carbon steel with a zinc finish, made from AISI 1006 to 1022 steel. Zinc plating gives indoor corrosion protection and nothing more, so for wet, exterior, or washdown locations choose a stainless fastener instead. The yellow zinc screws in this family are common in electronics work.
5) Do the Metallics JFM17 screws qualify for a Buy American or ARRA-funded job?
No. The JFM17 6-32 flat head screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. For federally funded work with domestic sourcing requirements you will need a domestically produced fastener.
6) Is 3/8 inch long enough, or should I order a longer 6-32 screw?
A 3/8 in. 6-32 gives you only about a quarter inch of thread past a flush-seated flat head, so it works for thin plates and standard device mounting into a tapped ear. If you are stacking spacers, a mud ring, or a thicker cover, step up to a longer 6-32 from the FM and FMP series rather than pulling the head into the hole to make it reach.
