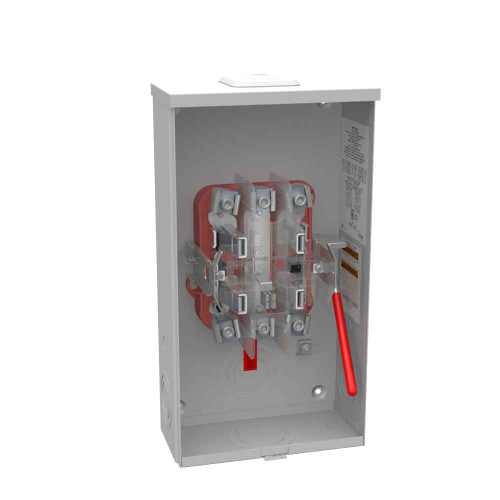

6 Terminal Ringless Small Closing Plate Lever Bypass
Manufacturer Resources
Product Specs
- Amperage Rating:
- 80 Continuous Ampere
- Application:
- Meter Socket
- Brand Name:
- Milbank
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Overhead or Underground
- Equipment Ground:
- Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 18.5 IN
- Hub Closing Plate:
- Small Closing Plate
- Insulation:
- Glass Polyester
- Length:
- 4.844 IN
- Line Side Wire Range:
- 14 - 2 AWG
- Load Side Wire Range:
- 14 - 2 AWG
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 6 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 1 Phase
- Product Family Code:
- CT80
- Size:
- 4.844L x 10W x18.5H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 10 IN
