Metallics JTEKD65 6 x 1-1/2 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.11
$0.11
Metallics JTEKD65 6 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 100qty

Metallics JTEKD65 6 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD65
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1-1/2 in. 1/4 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 100qty

  • Features

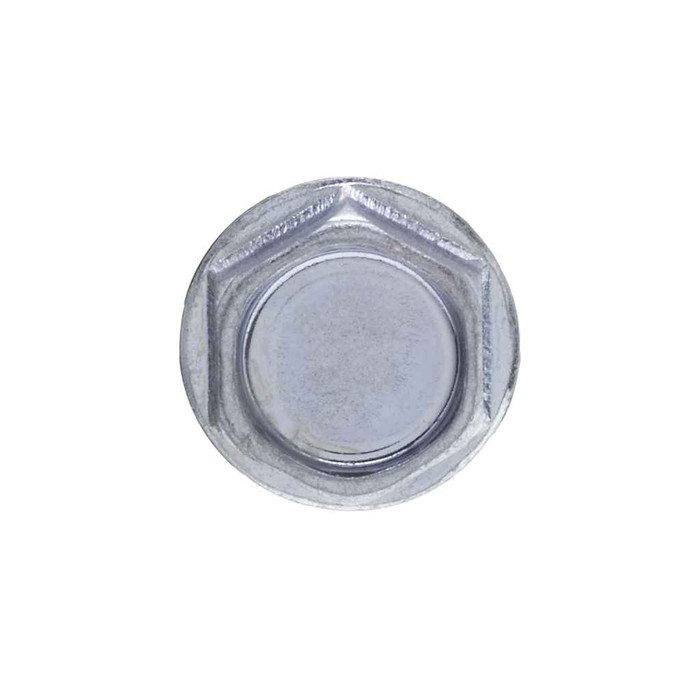

    • 1/4 Indented Hex Head with Hex Drive
    • 6 Diameter, 1-1/2" Length
    • #2 Drill Point
    • Steel Zinc Material
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Height:
0.08 - 0.093 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.244 - 0.25 in.
Fastener Length:
1/1/02
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.090 IN
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.59 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.033 - 0.046
Slot Width:
0.039 - 0.048
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
SAE J78 - 2013
Torsional Strength:
24 lb-in minimum
Washer Od:
0.302 - 0.328 in.
Washer Thickness:
0.015 - 0.025 IN
Width Across Corners:
0.272
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD65 – Frequently Asked Questions

1) Do I need a pre-drilled hole for these #6 self-drilling screws?
No. The JTEKD65 is a Type BSD self-drilling and tapping screw, so the drill point bores the hole and the threads tap it in one pass. The description puts drill time at about 2.5 seconds through a 1 mm plate.
2) What driver bit or socket fits the JTEKD65 screw head?
It takes a 1/4 inch hex driver. The indented hex head measures 0.244 to 0.25 inch across the flats, 0.272 inch across the corners, with a head height of 0.08 to 0.093 inch, so a standard 1/4 inch magnetic hex driver in a screw gun seats on it directly. No bit tip required.
3) Will these screws snap when driven with an impact driver?
The JTEKD65 carries a 24 lb-in minimum torsional strength and is case hardened to Rockwell C32-40 from AISI 1016-1024 steel. That is adequate for a screw gun with the clutch set properly. Impact drivers routinely exceed 24 lb-in, so back the torque down or use a depth sensitive screw gun to avoid shearing heads.
4) Are zinc plated steel drill screws OK for outdoor or damp locations?
The JTEKD65 is zinc plated steel, which is a mild indoor corrosion finish. It is fine for interior electrical, duct, and strut work. For exterior exposure, roof decks, coastal sites, or anywhere subject to standing water, specify a stainless self-drilling screw instead.
5) Do the Metallics JTEKD65 screws meet Buy American or ARRA requirements on a public job?
The JTEKD65 is flagged compliant for both ARRA and Buy American in the product data, with country of origin listed as China. On a federally funded project, confirm which clause your contract actually invokes, since the two provisions treat fasteners differently.
6) What does the washer on this Metallics hex head screw do, and how big is it?
The integral washer spreads clamping load and helps seal the hole against the panel face, which matters when you are fastening strut, hanger, or sheet metal where the hole is slightly oversized. Washer OD runs 0.302 to 0.328 inch and washer thickness 0.015 to 0.025 inch.
7) What thread pitch do the Metallics JTEKD #6 drill screws have?
20 threads per inch, built to SAE J78 - 2013 for thread form and ASME B18.6.3-2010 for head dimensions. That is the standard #6-20 self-drill thread, so it will mate with existing #6 drill screw holes in sheet metal.
8) How many Metallics JTEKD65 screws come in a jar, and what is the minimum order?
They ship in a jar of 100, and 100 count is the order minimum. Jar weight is 0.59 lbs.
