Metallics JDWSR3C 6 x 1-1/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.13
$0.13

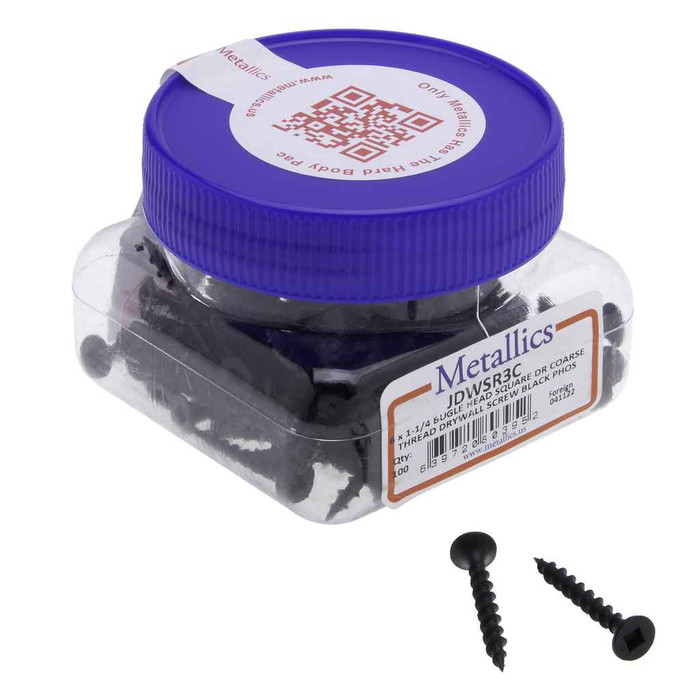

Metallics JDWSR3C 6 x 1-1/4 in. Bugle Head Square Drive Drywall Screws - Steel Black Phosphate - Coarse Threads - 100qty

Metallics JDWSR3C 6 x 1-1/4 in. Bugle Head Square Drive Drywall Screws - Steel Black Phosphate - Coarse Threads - Each

(No reviews yet) Write a Review

Model: JDWSR3C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$0.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1-1/4 in. Bugle Head Square Drive Drywall Screws - Steel Black Phosphate - Coarse Threads - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Features

    • Coarse Threads
    • Parts are usually supplied with a black phosphate finish.
    • Bugle Head with Square Drive
    • Steel Black Phosphate Material
    • 6 Diameter, 1-1/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Square
Driver Size:
#1
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1/1/04
Field Application:
Drywall-Wood Applications
Hardness:
Rockwell C45-64
Language Code:
EN
Material Standard:
AISI 1018
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.41 lbs
Product Width:
3 in
Screw Point Type:
Sharp Point
Square Recess Depth:
0.055 - 0.071
Square Recess Width:
0.090 - 0.106
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWSR
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics JDWSR3C – Frequently Asked Questions

1) What driver bit do I need for the Metallics JDWSR3C drywall screws?
A #1 square drive bit. The JDWSR3C uses a square (Robertson) recess, driver size #1, with a recess width of 0.090 to 0.106 in. and depth of 0.055 to 0.071 in. If your crew is set up with Phillips #2 bits only, you'll need to add square bits before these go in the gun.
2) Are coarse thread drywall screws like these right for wood studs or metal studs?
Coarse thread, sharp point screws are the wood stud choice. The JDWSR3C is a #6 x 1-1/4 in. coarse thread (UNC, 8 to 10 threads per inch) screw with a sharp point, and Metallics lists its field application as drywall-to-wood. For light gauge steel studs you want a fine thread drywall screw instead, which cuts into metal without stripping.
3) Can black phosphate drywall screws be used outdoors or in a damp area?
No. Black phosphate is a mild, paint-ready interior coating, not a corrosion barrier, so the JDWSR3C belongs in dry interior drywall work. For exterior sheathing, soffits, or anything exposed to moisture, use a coated or stainless exterior screw instead.
4) Do these Metallics screws meet Buy American or ARRA requirements for a public project?
No. The JDWSR3C is listed as not Buy American compliant and not ARRA compliant, with country of origin shown as multiple. If your job carries domestic sourcing language, these will not satisfy it and you'll need a domestically produced fastener.
5) Will a bugle head screw sit flush without tearing the drywall paper?
That's what the bugle shape is for. The tapered head on the JDWSR3C self-countersinks into the paper face and seats just below flush so joint compound covers it. Head width runs 0.315 to 0.347 in. and head height 0.020 to 0.031 in. Metallics notes there is no single industry standard for bugle head dimensions, so slight deviations are normal.
6) How are the Metallics JDWSR3C screws packaged and what is the minimum order?
They ship in a jar of 100, and 100 is the order minimum. Jar packaging is handy for a service van or a maintenance cart rather than a bulk bucket on a hanging crew. Metallics notes other sizes and quantities are available by request.
7) Are these drywall screws hard enough to drive without snapping the heads off?
The JDWSR3C is heat treated to Rockwell C45-64 and made from AISI 1018 steel, which is the normal hardness band for a drywall screw: hard enough that the square recess resists cam-out and the shank drives into wood without twisting off. Hardened screws are brittle in shear, though, so they are not a structural or framing fastener.
8) What does the jar of 100 Metallics drywall screws weigh for shipping or a van stock?
0.41 lbs for the jar, with the package measuring 3 x 3 x 2.15 in. Light enough to carry a few sizes on a service vehicle without eating payload.
