Metallics DWC1M 6 x 1 in. Bugl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.11
$0.11

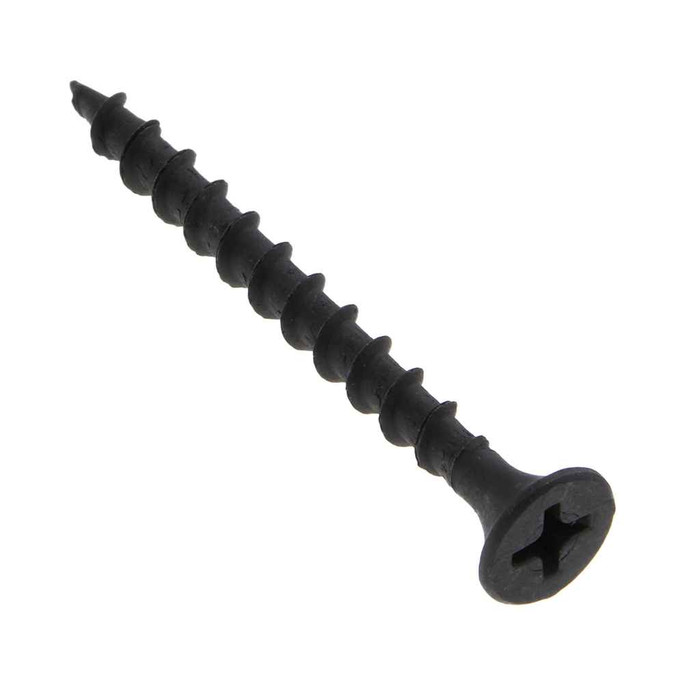

Metallics DWC1M 6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 1000qty

Metallics DWC1M 6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - Each

(No reviews yet) Write a Review

Model: DWC1M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 1000qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Kit Components

    • #1 Drive Power Bit

  • Features

    • 6 Diameter, 1" Length
    • Coarse Threads
    • Includes Free Power Bit
    • Steel Black Phosphate Material
    • Bugle Head with Phillips Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1
Field Application:
Wood to Wood, Drywall to Wood and Cabinet Installations, Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C45-64
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Crs_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
3.03 lbs
Product Width:
3.5 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
JDWC and DWC
Product Finish:
Black Phosphate/Galvanized
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics DWC1M – Frequently Asked Questions

1) Are black phosphate drywall screws okay for exterior or damp locations?
No. Black phosphate is a dry interior coating only, it offers minimal corrosion resistance. The DWC1M is a steel black phosphate screw intended for interior drywall, wood to wood and cabinet work. For exterior decks, soffits or wet areas use a coated or galvanized deck screw instead.
2) How many Metallics DWC1M screws come in a package, and how are they packed?
They ship in a jar of 1,000, and 1,000 is the minimum order quantity. The filled jar weighs 3.03 lbs. A power bit is included with the jar.
3) What size Phillips bit do I need to drive these Metallics drywall screws?
A #2 Phillips. The recess on the DWC1M measures 0.176 to 0.201 in. in diameter with a 0.106 in. depth, which is the standard #2 Phillips profile. A power bit is packed with the jar, so a screw gun setup is ready out of the box.
4) Will the bugle head on these screws sit flush enough to tape and finish over?
That is what the bugle head is for. The head on the DWC1M is 0.315 to 0.347 in. across with a head height of only 0.020 to 0.031 in., so the curved underside pulls the paper in without tearing it and the head dimples just below the face for joint compound. Note there is no single industry standard for bugle head dimensions, so slight deviations from those figures are normal.
5) Do Metallics DWC1M drywall screws qualify for Buy American or ARRA funded jobs?
No. The DWC1M is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your project carries domestic sourcing requirements, this screw will not satisfy them.
6) Are these screws hard enough not to snap or strip when driven with a collated screw gun?
The DWC1M is made from AISI 1018 steel and case hardened to Rockwell C45-64, which is the hardness range that keeps the recess from camming out and the point from rolling over when driven at gun speed into wood. Threads are coarse UNC at 8 to 10 threads per inch.
7) Can I use the Metallics DWC1M for mounting electrical boxes, straps and plumbing hangers to wood?
Yes, that is one of its listed uses. The field applications for this screw cover electrical, plumbing, heating and air conditioning work along with wood to wood and cabinet installations, so a #6 by 1 inch coarse thread sharp point works for fastening boxes, straps and clips to wood studs and blocking.
