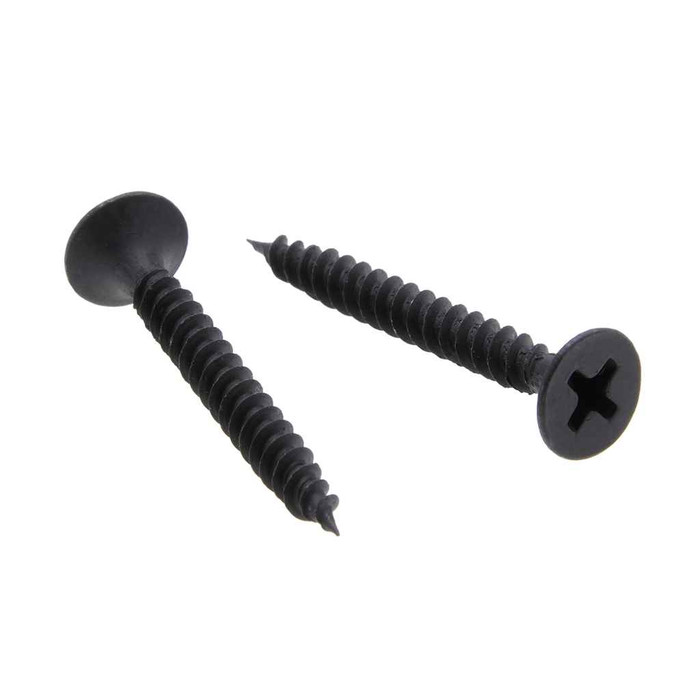

Metallics DWS1V 6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 500qty

Metallics DWS1V 6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - Each

(No reviews yet) Write a Review

Model: DWS1V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.09
$0.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 500qty

  • Features

    • Parts are usually supplied with a black phosphate finish.
    • Steel Black Phosphate Material
    • Bugle Head with Phillips Drive
    • Fine Threads
    • 6 Diameter, 1" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide;deviations from these specifications may occur.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1
Hardness:
Rockwell C44
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Fine_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.54 lbs
Product Width:
3 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Spacing:
Fine
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWS
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics DWS1V – Frequently Asked Questions

1) Are black phosphate drywall screws okay for exterior or damp locations?
No. Black phosphate is a mild corrosion coating meant for dry interior work, which is what the DWS1V steel black phosphate screw is built for. For exterior sheathing, soffits, or anywhere exposed to moisture, use a screw with a corrosion resistant coating or stainless instead.
2) What size Phillips bit do I need for Metallics DWS drywall screws?
A #2 Phillips bit. The recess is 0.106 inch deep and 0.176 to 0.201 inch across, so a #2 seats fully and gives you the cam-out resistance you need when you are driving hundreds of screws with a collated or standard screw gun.
3) Will a bugle head drywall screw sit flush without tearing the paper face?
That is what the bugle head is for. The DWS1V head measures 0.315 to 0.347 inch across and only 0.020 to 0.031 inch high, so it countersinks itself into the board face and dimples the paper instead of cutting it, leaving a shallow depression you can fill and finish. Set your gun depth so the head stops just below the surface.
4) How many Metallics DWS1V screws come in a package, and how are they packed?
They ship in a jar of 500, which is the order minimum (500 count). Figure that against your board count before ordering for a multi-unit job.
5) Do these drywall screws meet Buy American requirements for a government job?
The Metallics DWS1V is flagged compliant for both ARRA and Buy American. Country of origin is listed as multiple, so if your contract requires a specific origin certificate per lot, source that paperwork with the order.
6) Are these drywall screws hard enough to drive into metal studs without snapping?
They are heat treated to Rockwell C44 and made from AISI 1018 steel, which is the normal hardness range for a case hardened drywall screw. That is enough to let the sharp point pierce light gauge steel track. It is not a self-drilling screw, so for heavier gauge studs you want a self-drilling point rather than this sharp point.
7) Should I expect the head diameter on these drywall screws to be exact?
Expect small variation. There is no single industry standard for bugle head or drywall screw dimensions, so the published figures on the DWS1V (head width 0.315 to 0.347 inch, head height 0.020 to 0.031 inch) are given as ranges and minor deviation is normal. For finishing work that tolerance has no practical effect.
8) What does the 500 count jar of 6 x 1 in. drywall screws weigh for shipping?
1.54 lbs for the jar, which measures 3 x 3 x 4.57 inches. Easy to carry in quantity if you are stocking a van or a maintenance shop shelf.
