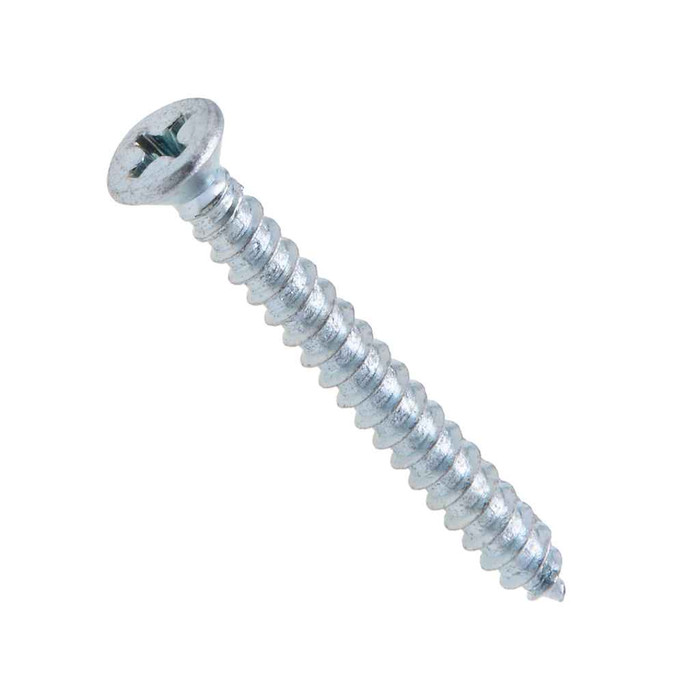

Metallics JTSF12 6 x 1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

Metallics JTSF12 6 x 1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSF12
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.17
$0.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1/2 in. Flat Head Phillips Tapping Screws - Steel Zinc - 100qty

  • Features

    • 6 Diameter, 1/2" Length
    • Steel Zinc Material
    • Flat head with Phillips Drive

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.4-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.069 - 0.083 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.238 - 0.262 in.
Fastener Length:
2-Jan
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.22
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Phillips_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.094
Phillips Recess Diameter:
0.168
Phillips Recess Width:
0.029
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.23 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.021 - 0.036 Above
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
ASME B18.6.4
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSF
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSF12 – Frequently Asked Questions

1) Will a #6 x 1/2 in. flat head tapping screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. The JTSF12 head measures 0.238 to 0.262 in. across with a head height of 0.069 to 0.083 in., so it seats into a standard 82 degree countersink and finishes flush or slightly below. If your plate or box is not countersunk, the head will stand proud by about that head height.
2) Do I have to drill a pilot hole for these Type A tapping screws, or will they self-start?
These are gimlet point Type A tapping screws, so the sharp point starts in thin sheet metal or a punched hole without threading it first. You still want a pilot hole in heavier gauge stock. Type A is a coarse 18 threads per inch thread made for thin sheet metal and soft material, not for machine-threaded holes.
3) Can I use these on a Buy American or ARRA funded job?
No. The JTSF12 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. For federally funded work with domestic sourcing requirements you will need a domestically produced fastener instead.
4) What driver bit do I need for the Metallics JTSF12 #6 tapping screws?
A #2 Phillips bit. The JTSF12 uses a Phillips drive with a #2 driver size, and the recess measures 0.168 in. diameter, 0.094 in. deep, 0.029 in. wide. Torsional strength is 24 lb-in minimum, so back off the impact driver clutch on a #6 screw this small or you will twist heads off.
5) Are these Metallics screws suitable for mounting devices in electrical boxes and HVAC sheet metal?
That is the intended use. The JTSF12 is listed for the electrical, plumbing, heating and air conditioning trades, which is where #6 x 1/2 in. sheet metal screws get used for strapping, duct, plates and box work. Zinc plated steel gives basic indoor corrosion protection.
6) Do these tapping screws meet a recognized dimensional standard for spec work?
Yes. The JTSF12 is made to ASME B18.6.4-1998 for dimensions and threads, with steel in the AISI 1016 to 1024 range case hardened to Rockwell C28-38. Note that the manufacturer states dimensions for the #9 diameter are independent of ASME B18.6.4; the #6 covered here is within the standard.
7) Is zinc plated steel okay for outdoor or damp locations?
Zinc plating on carbon steel is a light-duty coating meant for dry indoor service. In exterior, roof, coastal or wet mechanical room conditions it will rust. For those openings use a stainless or hot dip galvanized sheet metal screw rather than the zinc plated JTSF12.
8) What is the actual screw size on the Metallics JTSF12?
A #6 diameter, 1/2 in. long screw with 18 threads per inch and a gaging diameter of 0.22 in. Short enough that it will not blow through the back of a device box or duct flange, so use it where a longer screw would foul wiring behind the plate.
9) How do Metallics JTSF12 screws come packaged, and what is the minimum order?
They ship in a jar of 100, which is the minimum quantity. The jar weighs 0.23 lbs. Handy for a van stock item rather than a bulk box you have to decant.
