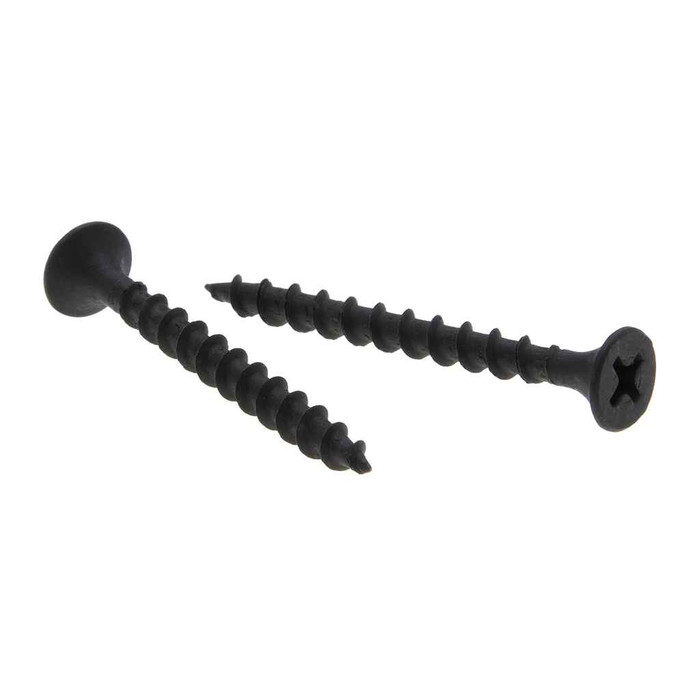

Metallics DWC4V 6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 500qty

Metallics DWC4V 6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - Each

(No reviews yet) Write a Review

Model: DWC4V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.14
$0.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Coarse Threads - 500qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | In the abscence of a single industry standard for Deck Screws, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide; deviations from these specifications may occur.

  • Features

    • Coarse Threads
    • Bugle Head with Phillips Drive
    • Steel Black Phosphate Material
    • 6 Diameter, 15/8" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1/5/08
Hardness:
Rockwell C45-64
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Crs_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.38 lbs
Product Width:
3.5 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
8 to 10
Thread Spacing:
Coarse
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
JDWC and DWC
Product Finish:
Black Phosphate/Galvanized
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics DWC4V – Frequently Asked Questions

1) Can these black phosphate drywall screws be used outdoors or in a damp area?
No. Black phosphate is a dry interior finish only, with minimal corrosion resistance. Use these inside for gypsum board on wood framing. For exterior sheathing, soffits, or anywhere exposed to weather or persistent moisture, switch to a coated or galvanized exterior screw.
2) What driver bit do I need for these Metallics bugle head drywall screws?
A #2 Phillips. The recess is 0.106 inch deep and 0.176 to 0.201 inch across, which is standard #2 Phillips geometry, so a worn bit is the usual cause of cam-out on a long run. Keep spares in the pouch if you are running a screw gun all day.
3) Will the head of this screw dimple into drywall without tearing the paper?
That is what the bugle head is for. The head measures 0.315 to 0.347 inch across with a head height of 0.020 to 0.031 inch, so it seats flush in a shallow dimple ready for compound rather than countersinking hard through the face paper. Set the depth stop on the gun so the head stops just below the surface.
4) Do these Metallics drywall screws qualify for a Buy American or ARRA funded project?
The DWC4V is flagged as both Buy American compliant and ARRA compliant in Metallics' data, with country of origin listed as multiple. For a federally funded job, keep the compliance flag with your submittal package since origin varies by production run.
5) Are these screws hard enough not to snap when driven with a screw gun?
They run Rockwell C45-64 on AISI 1018 steel, which is the case hardened range drywall screws are made in so the threads cut and the recess holds torque. They are still brittle by design, so they are fastening board, not carrying structural load.
6) How many threads per inch do these coarse thread drywall screws have?
8 to 10 threads per inch, coarse UNC. That wide spacing is what clears gypsum dust and grips wood fiber. Fine thread drywall screws run far more threads per inch and are meant for metal studs, so the two are not interchangeable on the same framing.
