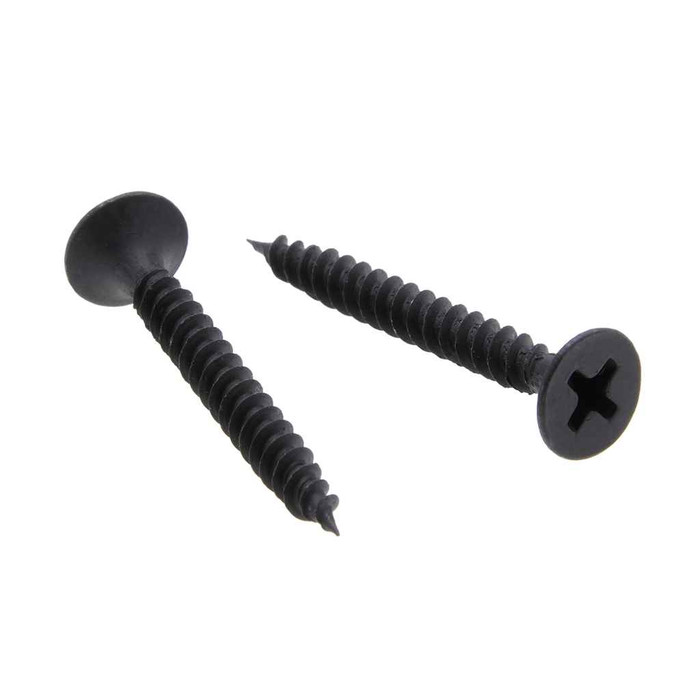

Metallics DWS4M 6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 1000qty

Metallics DWS4M 6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - Each

(No reviews yet) Write a Review

Model: DWS4M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 15/8 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 1000qty

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide;deviations from these specifications may occur.

  • Features

    • Includes Free #2 Drive Power Bit
    • Fine Threads
    • Steel Black Phosphate Material
    • Bugle Head with Phillips Drive
    • 6 Diameter, 15/8" Length

  • Kit Components

    • #2 Drive Power Bit

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
1/5/08
Field Application:
Hardwood, Light Gauge Steel and Light Gauge Aluminum
Hardness:
Rockwell C44
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Fine_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
4.7 lbs
Product Width:
4.5 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Spacing:
Fine
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWS
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics DWS4M – Frequently Asked Questions

1) Are fine thread drywall screws like the Metallics DWS4M for wood studs or metal studs?
Fine thread is the metal stud screw. The DWS4M runs 18 threads per inch with a sharp point, and Metallics lists its field applications as hardwood, light gauge steel and light gauge aluminum. For standard wood studs, a coarse thread drywall screw bites faster and holds better in softwood framing. Use the fine thread version on light gauge steel framing and on hardwood.
2) Are black phosphate drywall screws OK for exterior or damp locations?
No. Black phosphate is a dry interior finish only. The DWS4M is AISI 1018 steel with a black phosphate coating, which gives mild corrosion resistance for handling and storage but will rust in wet or exposed conditions. For exterior sheathing, soffits, or bath and kitchen work with moisture exposure, specify a corrosion resistant coated or stainless fastener.
3) What driver bit do I need for Metallics DWS4M drywall screws, and is one included?
A #2 Phillips bit. The recess is a Phillips drive sized for a #2 driver, with a recess depth of 0.106 inch and recess diameter of 0.176 to 0.201 inch. A free #2 drive power bit ships with the screws, so you do not need to order one separately.
4) How many Metallics DWS4M screws come in a jar and what is the minimum order?
The DWS4M is packed in a jar of 1,000 screws, and 1,000 is the order minimum. The jar weighs 4.7 lbs. Other sizes and quantities are available by request.
5) Will the bugle head on these drywall screws seat flush without tearing the paper face?
That is what the bugle head is for. The head on the DWS4M measures 0.315 to 0.347 inch across with a head height of 0.020 to 0.031 inch, so the curved underside compresses the paper and dimples it rather than cutting through, as long as you set your driver clutch so the head sits just below the surface. Note that there is no single industry standard for bugle head or drywall screw dimensions, so slight deviations from these figures are normal.
6) Do Metallics DWS4M drywall screws meet Buy American or ARRA requirements for a government job?
No. The DWS4M is listed as not Buy American compliant and not ARRA compliant, with a country of origin of multiple. If your project carries a domestic sourcing clause, this fastener will not satisfy it.
7) Do these drywall screws snap when driven into steel studs?
The DWS4M is case hardened to Rockwell C44, which is the hardness range drywall screws are run at so the point can pierce light gauge steel without the shank twisting off. Driving at high speed into heavier gauge than the screw is rated for is what breaks them, so keep it to light gauge steel and aluminum framing and hardwood.
