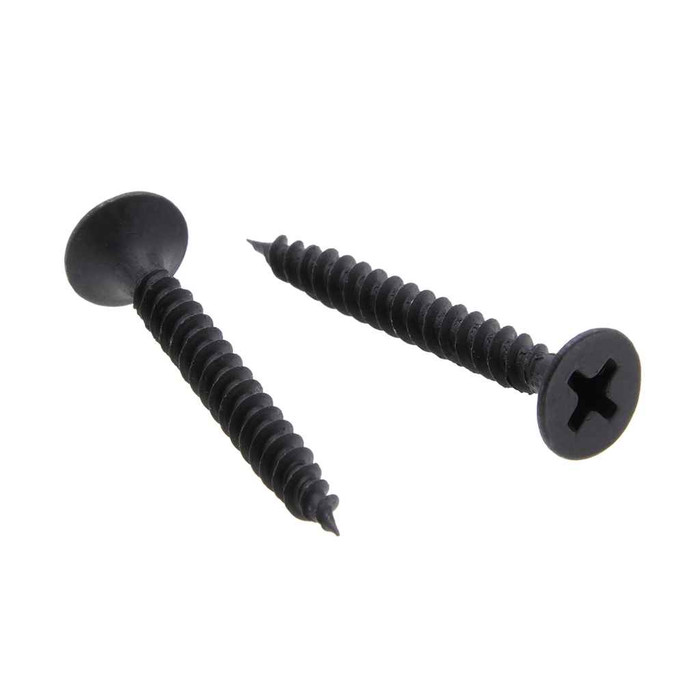

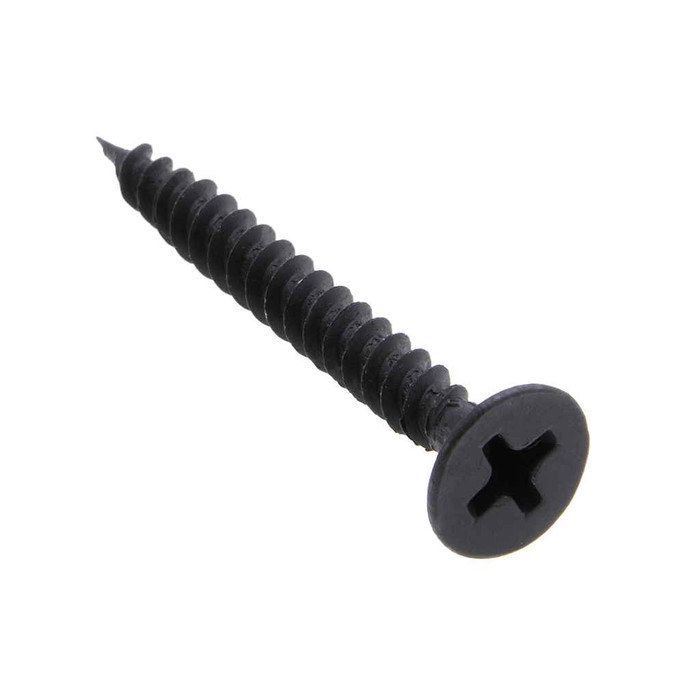

Metallics JDWS5CD 6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 100qty

Metallics JDWS5CD 6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - Each

(No reviews yet) Write a Review

Model: JDWS5CD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.44
$0.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 100qty

  • Features

    • Bugle Head with Phillips Drive
    • Made in the USA
    • Steel Black Phosphate Material
    • Fine Threads
    • 6 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide;deviations from these specifications may occur.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
United States
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
2
Field Application:
Hardwood, Light Gauge Steel and Light Gauge Aluminum
Hardness:
Rockwell C44
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Fine_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.71 lbs
Product Width:
3 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Spacing:
Fine
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWS
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics JDWS5CD – Frequently Asked Questions

1) Are fine thread drywall screws like the Metallics JDWS5CD right for metal studs or wood framing?
Fine thread, 18 threads per inch, is the metal-stud screw. The JDWS5CD is rated for light gauge steel and light gauge aluminum framing, and for hardwood. For standard softwood wood studs you want a coarse thread drywall screw instead, since fine threads tend to spin out and strip in soft lumber.
2) Do Metallics JDWS5CD screws qualify for a Buy American or ARRA funded job?
They are made in the United States, but they are not flagged Buy American compliant and not ARRA compliant. If your contract requires either certification, these do not carry it even with US origin.
3) What size Phillips bit do I need to drive Metallics JDWS5CD drywall screws?
A #2 Phillips bit. The recess is 0.106 in. deep and 0.176 to 0.201 in. across, so a #2 seats fully and resists cam-out. A #1 will chew the recess and a #3 will not bottom out.
4) Will a bugle head screw sit flush enough to tape and finish over?
That is what the bugle head is for. The tapered underside compresses the paper face without tearing it, and with a head height of only 0.020 to 0.031 in. and a head width of 0.315 to 0.347 in. it dimples just below the board surface so joint compound covers it in a thin coat. Bugle head dimensions are not governed by one single industry standard, so slight deviations between batches are normal.
5) How are Metallics JDWS5CD drywall screws packaged and what is the minimum order?
They ship in a jar of 100, and 100 is the order minimum. Jar weight is 0.71 lbs. Other sizes and quantities are available by request.
6) Is the black phosphate finish on these drywall screws OK for exterior or damp locations?
No. Black phosphate is a mild corrosion coating meant for dry interior work, which is what this AISI 1018 steel screw is built for. For exterior soffits, wet areas, or cement board outside, use a corrosion resistant coated or stainless fastener instead.
7) How hard are these drywall screws, and will they snap when driven into steel studs?
The JDWS5CD is case hardened to Rockwell C44 over an AISI 1018 steel core, which is what lets the sharp point pierce light gauge steel without the thread deforming. Keep the driver speed moderate and square to the stud, since any hardened drywall screw can shear if it is cammed over sideways.
8) Can I use these for hanging light gauge steel track or furring, not just board?
Within limits. The field application for the JDWS5CD covers light gauge steel and light gauge aluminum, so steel-to-steel in thin material and hat channel work is in range for a 2 inch fine thread sharp point screw. It is a drywall screw, not a structural connector, so do not substitute it where a framing screw or structural fastener is specified on the drawing.
