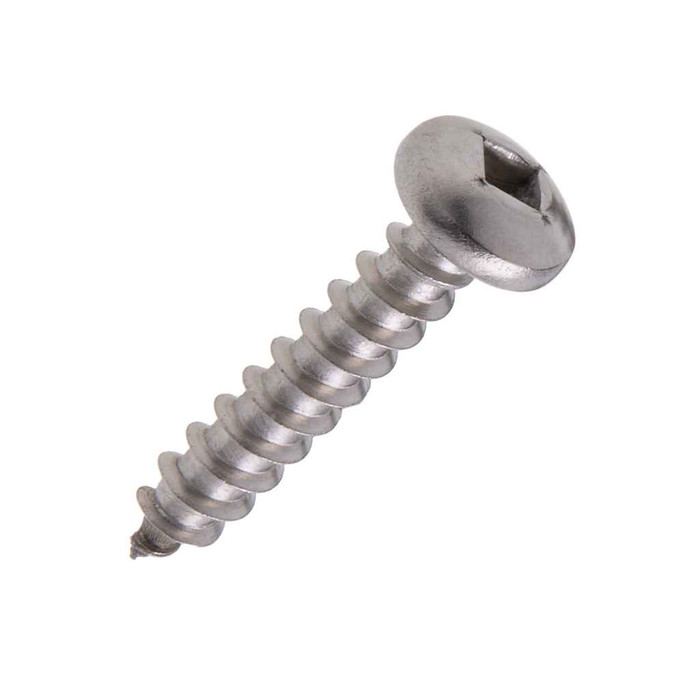

Metallics JTSS2 6 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

Metallics JTSS2 6 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSS2
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$0.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

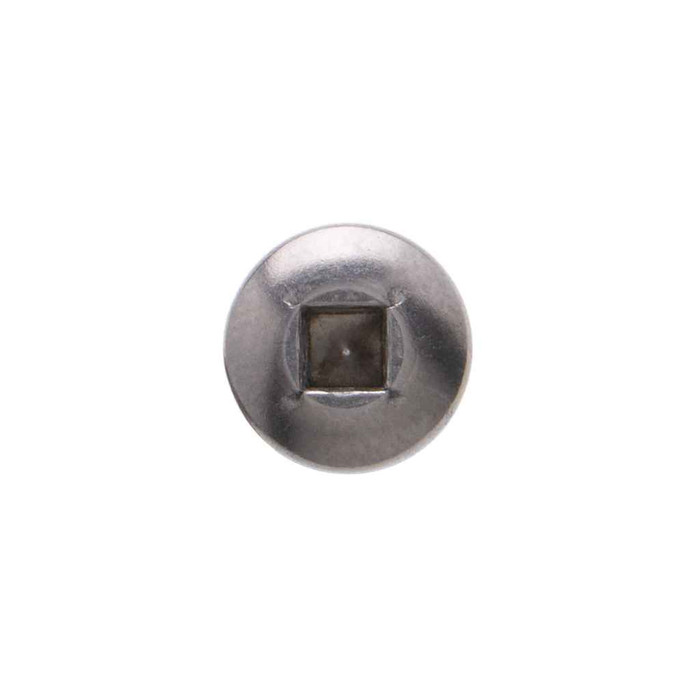

    • Other sizes and quantities available by request | This type of recess has a square center opening, slightly tapered side walls and a conical bottom. | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Pan head with square Drive
    • Steel Zinc Material
    • 6 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Square
Driver Size:
1R
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Square_Drive_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.35 lbs
Product Width:
3 in
Recess Across Flats:
0.091
Recess Penetration Gaging Depth:
0.050 - 0.065
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
ASME B18.6.4
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSS2 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JTSS2 square drive tapping screws?
A #1 square (Robertson) bit. The JTSS2 calls for driver size 1R, and the recess measures 0.091 inch across the flats with a gaging depth of 0.050 to 0.065 inch. A #2 square bit will not seat properly in a recess that size, so keep a #1 in the gun for these.
2) Will a #6 x 3/4 in. Type A tapping screw bite into sheet metal without a pilot hole?
The JTSS2 is a Type A tapping screw with a gimlet point, which is the sharp, spaced-thread form made for thin sheet metal and it will start in a punched or drilled hole without tapping. Thread count is 18 per inch to the ASME B18.6.4 thread standard. In heavier gauge steel you still want a pilot hole sized to the screw; the gimlet point starts the screw, it does not drill.
3) Do Metallics JTSS2 tapping screws qualify for a Buy American or ARRA-funded job?
No. The JTSS2 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries domestic-sourcing requirements, these screws will not satisfy them and you need a domestically produced fastener.
4) Can I use these screws outdoors or in a damp location?
The JTSS2 is carbon steel with a zinc plating, which handles indoor and dry locations fine but offers only light corrosion protection. For wet locations, exterior runs, coastal air, or anywhere washdown happens, specify a stainless fastener instead. Zinc-plated steel will eventually bloom in those conditions.
5) How many Metallics JTSS2 screws come in a pack?
They ship in a jar of 100, and 100 is the order minimum. If you need a different size or a different count, Metallics offers other sizes and quantities by request.
6) Will these screws snap when driven with an impact driver?
Torsional strength is 24 lb-in minimum, with case hardness at Rockwell C28-38 from AISI 1016-1024 steel. That is adequate for hand drivers and a clutched screw gun on sheet metal and box work. A high-torque impact driver can exceed 24 lb-in on a #6 screw, so dial the torque back or use a drill on a low clutch setting.
7) What are these Metallics square drive tapping screws normally used for?
Metallics lists the JTSS2 for the electrical, plumbing, heating and air conditioning trades. In practice that means mounting straps, brackets, plates, duct accessories and enclosures to sheet metal. The square recess is the reason electricians favour them, the bit stays put and lets you drive one-handed overhead.
