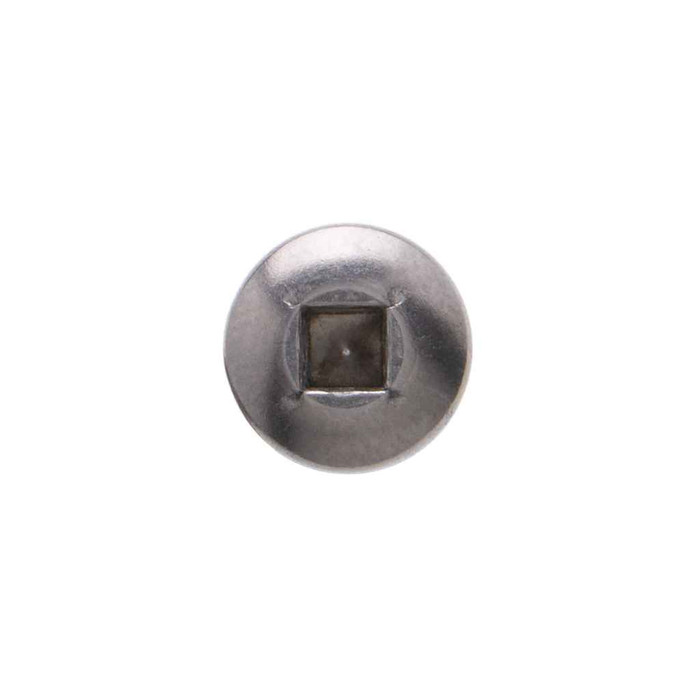

Metallics JTSS8 8 x 3/4 in. Pa...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.13
$0.13
Metallics JTSS8 8 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

Metallics JTSS8 8 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTSS8
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$0.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 3/4 in. Pan Head Square Drive Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | This type of recess has a square center opening, slightly tapered side walls and a conical bottom. | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Pan head with square Drive
    • Steel Zinc Material
    • 8 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Square
Driver Size:
2R
Fastener Head Height:
0.105 - 0.115 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.306 - 0.322 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Square_Drive_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.49 lbs
Product Width:
3 in
Recess Across Flats:
0.112
Recess Penetration Gaging Depth:
0.060 - 0.075
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.4
Torsional Strength:
39 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTSS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTSS8 – Frequently Asked Questions

1) What driver bit do I need for the Metallics JTSS8 square drive tapping screws?
A #2 square (Robertson) bit. The spec calls out driver size 2R, with a recess measuring 0.112 across the flats and a gaging depth of 0.060 to 0.075 inch. Using a #1 bit will cam out and using a #3 will not seat, so keep a #2 square bit in the gun.
2) Will a #8 x 3/4 in. Type A tapping screw cut its own threads in sheet metal, or do I need to pre-tap?
No tapping needed. The JTSS8 is a Type A tapping screw with a gimlet point, so it forms its own thread in a drilled or punched pilot hole in sheet metal. It has 15 threads per inch and the thread conforms to ASME B18.6.4. It is not a self-drilling screw, so you still need a pilot hole.
3) Do Metallics JTSS8 screws qualify for a Buy American or ARRA funded job?
No. The JTSS8 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. On a federally funded project with domestic sourcing language, specify a domestic fastener instead.
4) Is a zinc plated steel tapping screw OK for outdoor or damp locations?
Zinc plating on the JTSS8 is a mild corrosion coating meant for dry indoor electrical, plumbing and HVAC work. The material is carbon steel in the AISI 1016 to 1024 range with a zinc finish. For wet, coastal or exterior exposure, buy a stainless fastener instead.
5) How much torque will these #8 tapping screws take before the head twists off?
39 lb-in minimum torsional strength, with the screws hardened to Rockwell C28-38. That is enough for driving into duct, panel enclosures and strut with a clutched driver, but set the clutch rather than running an impact wide open, since a #8 shank snaps well before an impact reaches its rated torque.
6) How is the JTSS8 packaged and what is the minimum I can buy?
These ship in a jar of 100 screws, and 100 is the order minimum. Jar weight comes in at 0.49 lbs.
7) What are these #8 square drive tapping screws normally used for on a job?
They are a sheet metal fastener for the electrical, plumbing and HVAC trades: hanging device boxes and covers, fastening duct and plenum sheet, securing straps and brackets to panel steel. The square recess is the reason tradesmen pick them, the bit sticks in the screw so you can drive one-handed overhead. Head is a pan, which is what you want for a flush-bearing surface on flat stock rather than a countersunk hole.
