EiKO T5 Miniature Wedge Base I...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.97
$1.97
EiKO 909 6V .62A T-5 Wedge Base

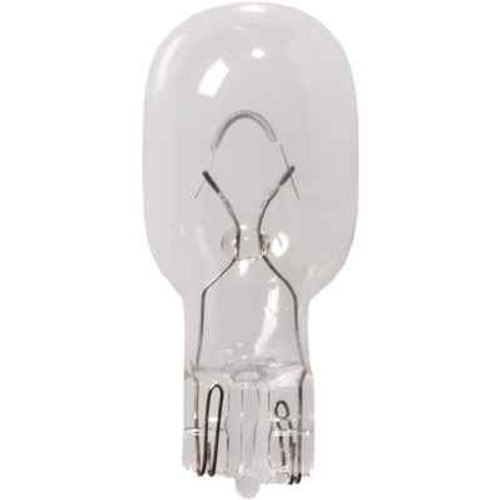

EiKO T5 Miniature Wedge Base Incandescent Bulb 6V 0.62A 38 Lumens

(No reviews yet) Write a Review

Model: 909
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.97
$1.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

EiKO T5 Miniature Wedge Base Incandescent Bulb 6V 0.62A 38 Lumens

Compact T5 incandescent lighting for specialized low-voltage applications

The EiKO T5 Miniature Wedge Base Incandescent Bulb delivers reliable 6V low-voltage illumination with 0.62A current draw and 38 lumens output. This compact T5 bulb features a miniature wedge base design for secure installation in compatible fixtures and applications requiring precise low-voltage lighting solutions.

Professional Features & Benefits

  • 6V Low Voltage Operation: Designed for safe operation in low-voltage systems and specialized equipment applications
  • 0.62A Current Draw: Efficient power consumption suitable for battery-powered and low-current applications
  • T5 Compact Design: Space-saving tubular profile fits in tight spaces and compact fixture housings
  • Miniature Wedge Base: Secure W2.1x9.5d base connection ensures reliable electrical contact and easy installation
  • 38 Lumens Output: Provides focused illumination for indicator lights, instrument panels, and accent lighting
  • C-2R Filament: Professional-grade filament construction for consistent light output and reliable performance
  • 50-Hour Rated Life: Dependable service life for applications requiring periodic replacement cycles

Technical Specifications

  • Amps: 0.62
  • Base Type: Miniature Wedge (W2.1x9.5d)
  • Bulb Type: T5
  • California Title 20: Exempt
  • Dimmable: FALSE
  • Dlc Premium: FALSE
  • Dlc Standard: FALSE
  • Energy Star: FALSE
  • Filament: C-2R
  • Lcl In Mm: 0.81/20.60
  • Lumens: 38
  • Mod In Mm: 0.62/15.80
  • Mol In Mm: 1.49/37.90
  • Rated Life: 50
  • Voltage Rating: 6

Professional Applications

  • Automotive instrument panel lighting
  • Marine electronics and navigation equipment
  • Industrial control panel indicators
  • Emergency lighting systems
  • Specialty equipment illumination
  • Low-voltage accent lighting
  • Battery-powered devices

Why Choose EiKO Quality?

EiKO delivers dependable incandescent lighting solutions with consistent performance and reliable construction. This T5 miniature wedge base bulb provides the specialized low-voltage illumination needed for professional applications with 50-hour rated service life and precise electrical specifications.

Manufacturer Resources

Product Specs

Amps:
0.62
Base Type:
Miniature Wedge (W2.1x9.5d)
Bulb Type:
T5
California Title 20:
Exempt
Dimmable:
FALSE
Dlc Premium:
FALSE
Dlc Standard:
FALSE
Energy Star:
FALSE
Filament:
C-2R
Lcl In Mm:
0.81/20.60
Lumens:
38
Mod In Mm:
0.62/15.80
Mol In Mm:
1.49/37.90
Rated Life:
50
Voltage Rating:
6

EiKO 909 – Frequently Asked Questions

1) Will the EiKO 909 wedge base bulb fit my existing miniature wedge socket?
The EiKO 909 uses a W2.1x9.5d miniature wedge base, the standard glass-wedge socket found in instrument clusters and small indicator housings. There are no pins or threads, the glass stem pushes straight into the socket contacts. Check the envelope size too: maximum overall diameter is 0.62 in (15.80 mm) and maximum overall length is 1.49 in (37.90 mm), with a light center length of 0.81 in (20.60 mm).
2) Can I run a 6V 909 bulb on a 12V circuit?
No. The 909 is rated 6 volts and drawing it off a 12V supply will burn the filament out almost immediately. It needs a 6V source, or a 12V circuit stepped down or dropped to 6V. If your panel is 12V, order a 12V wedge lamp instead.
3) Is EiKO 909 the same thing as a standard number 909 miniature lamp?
Yes. EiKO's part number is 909, matching the industry ANSI miniature lamp number, and it builds to that number's ratings: 6V, 0.62A, T5 envelope, W2.1x9.5d wedge base. If a drawing or a service manual calls out a 909, this is the lamp.
4) Why does this 909 bulb only last 50 hours?
Rated life is 50 hours, which is typical for an instrument and indicator lamp run at full rated voltage. It is meant for intermittent duty, panel indicators, gauge backlighting, marine electronics, that come on with the equipment rather than burning continuously. If you need something that stays lit around the clock, an incandescent wedge lamp of this type is the wrong choice. Buyers who service a fleet of panels usually stock these in quantity for that reason.
5) How bright is a 909 bulb, and is 38 lumens enough for a control panel indicator?
Output is 38 lumens. That is indicator-level light, enough to read a legend plate, backlight a gauge face, or show a status lamp on an industrial control panel. It is not task or area lighting. For accent or instrument-panel work where you want the lamp noticed rather than the room lit, it does the job.
6) Is the 909 subject to California Title 20 lamp regulations?
The 909 is exempt from California Title 20. It is a miniature 6V wedge lamp, not a general service bulb, so the state lamp efficiency rules do not apply to it. Useful to know if you are procuring for facilities in California and screening for compliance.
7) Can the EiKO 909 be dimmed or run on a rheostat?
Not per its rating. The 909 is listed as non-dimmable, so it is spec'd for straight on/off operation at 6 volts. If your dash or panel has a dimmer circuit, confirm the fixture spec before you rely on this lamp for a dimmed position.
8) What filament does the EiKO 909 use, and does it hold up to vibration?
It is a C-2R filament, a coiled supported design used in miniature lamps for automotive and instrument service. That support is what makes it suitable for the dash, marine, and mobile equipment applications it is listed for. It is still a filament lamp, so heavy shock service will shorten life.
9) Is the EiKO 909 Energy Star or DLC listed for a utility rebate?
No. The 909 carries no Energy Star rating and is neither DLC Standard nor DLC Premium. Those programs cover general illumination LED and lamp products, and this is a 6V incandescent indicator lamp, so it will not qualify for efficiency rebates. Budget it as a consumable replacement part, not a retrofit.
