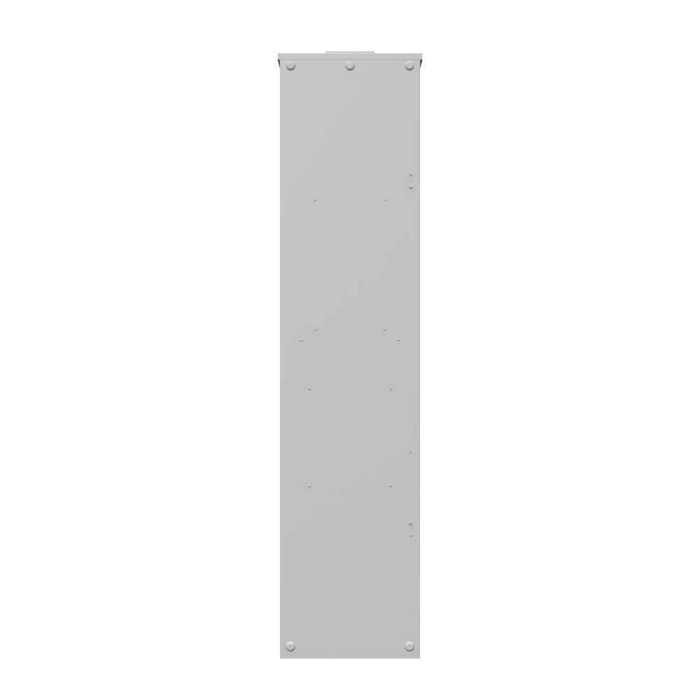

7 Terminal Ringless Large Closing Plate Lever Bypass 9-16 In Barrel Lock With Bracket Provision 1-400 Ampere Main Breaker 480 Volt Cold Sequence
Manufacturer Resources
Product Specs
- Amperage Rating:
- 320 Continuous Ampere
- Application:
- Meter Socket With Main
- Barrel Lock Provision:
- 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
- Brand Name:
- Milbank
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Overhead
- Equipment Ground:
- 2 Barrel Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 56 IN
- Hub Closing Plate:
- Large Closing Plate
- Insulation:
- Glass Polyester
- Length:
- 6.01 IN
- Line Side Wire Range:
- Two 3/0 AWG - 500 kcmil
- Load Side Wire Range:
- 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
- Main Breaker Size:
- One 400 Ampere Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 7 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 3 Phase
- Product Family Code:
- COLBD
- Size:
- 6.01L x 13W x56H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 13 IN
