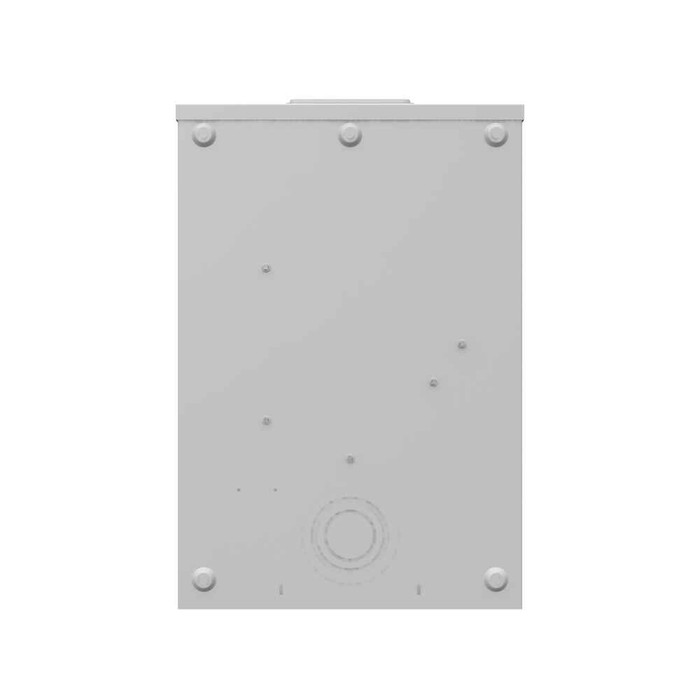

Milbank 7 Terminal Ringless Meter Socket 200A 3 Phase with Lever Bypass and Large Closing Plate

Milbank 7 Terminal Ringless Meter Socket 200A 3 Phase with Lever Bypass and Large Closing Plate

Professional Metering Solution for Potomac Electric Power Company Applications

The Milbank 7 Terminal Ringless Meter Socket delivers reliable 200 continuous ampere service in a robust 3 phase configuration. Engineered with G90 galvanized steel construction and powder coat finish, this single position meter socket features lever bypass provision and large closing plate design for professional electrical installations. Surface mount configuration with Type 3R rating ensures dependable performance for overhead or underground cable entry applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial power capacity for demanding commercial and industrial metering applications with reliable current handling.
• 7 Terminal Ringless Design: Eliminates the need for terminal rings while ensuring secure connections for simplified installation and maintenance procedures.
• Lever Bypass Provision: Enables safe meter removal and replacement without service interruption, enhancing operational flexibility and safety protocols.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life in harsh environments.
• Type 3R Rating: Provides protection against rain, sleet, and ice formation for reliable outdoor installation performance in various weather conditions.
• Large Closing Plate: Accommodates versatile hub configurations and cable entry options while maintaining proper enclosure integrity and code compliance.
• UL Listed Certification: Ensures compliance with safety standards and electrical codes for professional installation confidence and regulatory approval.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Department: Electrical
• Equipment Ground: Grounding Stud
• Frequency Rating: 60 Hertz
• Height: 19 IN
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: HD7T
• Product Group: Metering Equipment
• Product Length: 4.844 IN
• Product Size: 4.844L x 13W x19H
• Product Subgroup: Meter Socket
• Product Type: Ringless Meter Socket
• Special Features: Potomac Electric Power Company
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Metering
• Industrial Facility Power Distribution
• Multi-Tenant Properties
• Potomac Electric Power Company Service Areas
• Heavy Duty Electrical Installations
• Underground and Overhead Service Connections
• Professional Electrical Contractor Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R environmental protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the 7 terminal ringless design and lever bypass provision provide professional-grade functionality for demanding metering applications. Trust Milbank's engineering excellence for critical electrical infrastructure projects.
