Milbank 320A 3-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,298.26

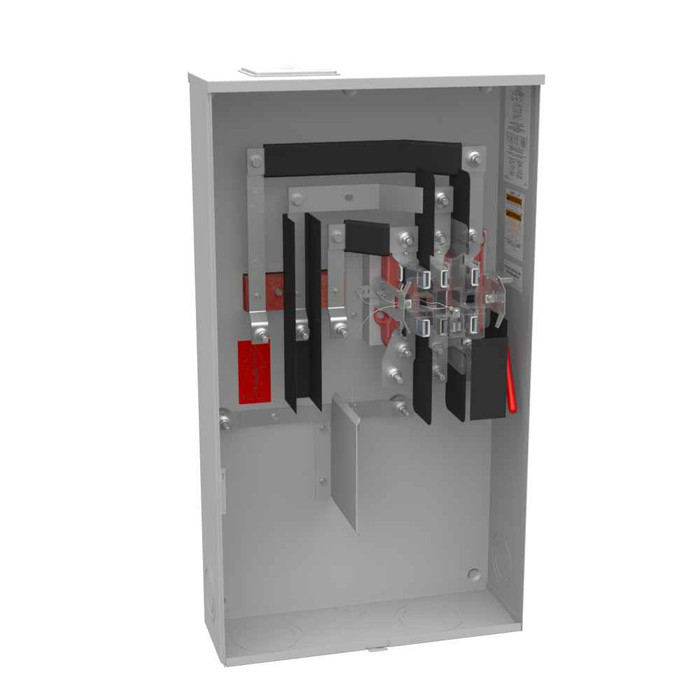

7 Terminal Ringless Large Closing Plate Lever Bypass Side Bussed Large Enclosure, 1 Position 320 Ampere

Milbank 320A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

(No reviews yet) Write a Review

Model: U2594-X-IL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,298.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional electrical metering solution with advanced bypass capability

The Milbank 320A 3-Phase Ringless Meter Socket delivers reliable electrical metering performance with integrated lever bypass functionality. This single-position meter socket features robust G90 galvanized steel construction with powder coat finish, providing durable Type 3R rated protection for demanding electrical service applications. The 7-terminal ringless design accommodates flexible cable entry options including overhead, underground, and side wireway configurations.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles high-capacity electrical loads with reliable current-carrying performance for commercial and industrial applications.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, reducing downtime and operational costs.
  • Type 3R Enclosure Rating: Weather-resistant protection ensures reliable operation in outdoor installations and harsh environmental conditions.
  • G90 Galvanized Steel Construction: Superior corrosion resistance and structural integrity provide long-term durability and reduced maintenance requirements.
  • 7-Terminal Ringless Design: Simplified installation process eliminates ring terminal requirements while maintaining secure electrical connections.
  • Multiple Cable Entry Options: Accommodates overhead, underground, and side wireway connections for versatile installation flexibility.
  • UL Listed Certification: Meets rigorous safety and performance standards ensuring code compliance and reliable operation.

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead and Underground and Side Wireway
  • Departent: Electrical
  • Equipment Ground: Grounding Stud
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: 7T32
  • Product Height: 34.125 IN
  • Product Length: 6.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 6.5L x 19W x34.125H
  • Product Type: Ringless Meter Socket
  • Special Features: Alliant Energy
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 19 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Power Distribution
  • Multi-Unit Residential Properties
  • Retail and Office Buildings
  • Municipal and Government Facilities
  • Educational Institution Power Systems
  • Healthcare Facility Electrical Infrastructure

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability through UL Listed certification and Type 3R environmental protection. The robust G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding electrical service applications, while the comprehensive wire range compatibility and multiple cable entry options provide installation flexibility for professional electrical contractors.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead and Underground and Side Wireway
Equipment Ground:
Grounding Stud
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
7T32
Product Height:
34.125 IN
Product Length:
6.5 IN
Product Size:
6.5L x 19W x34.125H
Product Type:
Ringless Meter Socket
Special Features:
Alliant Energy
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
320
Product Width:
19 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
3
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
7
Product Group:
Metering & Service Entrance

Milbank U2594-X-IL – Frequently Asked Questions

1) Will a Milbank U2594-X meter socket work on a 3-phase 320 amp service?
That is exactly what the U2594-X is built for: a single-position, 7-terminal ringless socket rated 320 continuous amperes, 3 phase, 600 volts AC at 60 hertz. The 7-jaw configuration is what makes it a 3-phase socket. If your service is single phase you need a 4-jaw or 5-jaw socket instead, not this one.
2) Does a ringless meter socket need a sealing ring, and how do I know my utility accepts one?
Ringless means there is no separate sealing ring around the meter; the closing plate itself covers and seals the meter opening, and the U2594-X ships with the large closing plate. Utilities specify one style or the other in their service handbook, so confirm your serving utility takes ringless before you set it. This particular socket is also built to the Alliant Energy specification, and a U2594-X-K7-ALT version is offered for that utility as well.
3) Which Milbank U2594-X version do I order if the utility requires a barrel lock?
Order the U2594-X-BLG, which comes with a 7/8 inch barrel lock provision. If your utility seals with a wire seal through knockouts instead, the U2594-X-IL has 7/16 inch knockout lock provisions. The plain U2594-X is the standard build with neither. All three are the same 320 ampere, 7 terminal, lever bypass socket underneath.
4) Can I bring the service conductors in from underground, or does it have to be overhead?
Either works. Cable entry on the U2594-X is set up for overhead, underground, and side wireway, so a lateral coming up from below, a mast drop from above, or a feed from an adjacent gutter all land in the same enclosure. The large closing plate arrangement is what accommodates the hub for an overhead entry.
5) Is there a place to land the grounding electrode conductor in this Milbank socket?
A grounding stud is provided in the enclosure for the equipment ground, so you have a factory termination point rather than drilling and adding a lug in the field. Jaw insulation is glass polyester.
6) Is 320 amp continuous the same as a 400 amp meter socket?
They are the same class of equipment described two ways. This socket is rated 320 continuous amperes, which is the 80 percent continuous rating a 400 ampere class socket carries, so a utility spec calling for a 400 amp class 320 continuous socket is asking for this rating. Confirm the jaw count too: this one is 7 terminal for 3 phase.
7) Can I use this Milbank socket on a 480Y/277 volt 3-phase service?
The socket is rated 600 volts AC, so 480Y/277 and 208Y/120 3-phase systems are both within its voltage rating, at 60 hertz. Jaw count and utility approval still govern: it is a 7 terminal ringless socket and your utility has to accept that configuration for the service being metered.
8) How well does a Milbank meter socket hold up on a coastal or wash-down exterior wall?
The enclosure is G90 galvanized steel with a powder coat finish, a hot-dip galvanized coating weight with paint over it, and it carries a Type 3R rating for outdoor use. That handles rain and normal weather exposure. Type 3R is not a washdown or corrosive-duty rating, so a chemical plant or direct spray location calls for a higher enclosure type.
