Milbank 320A 3-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,308.67

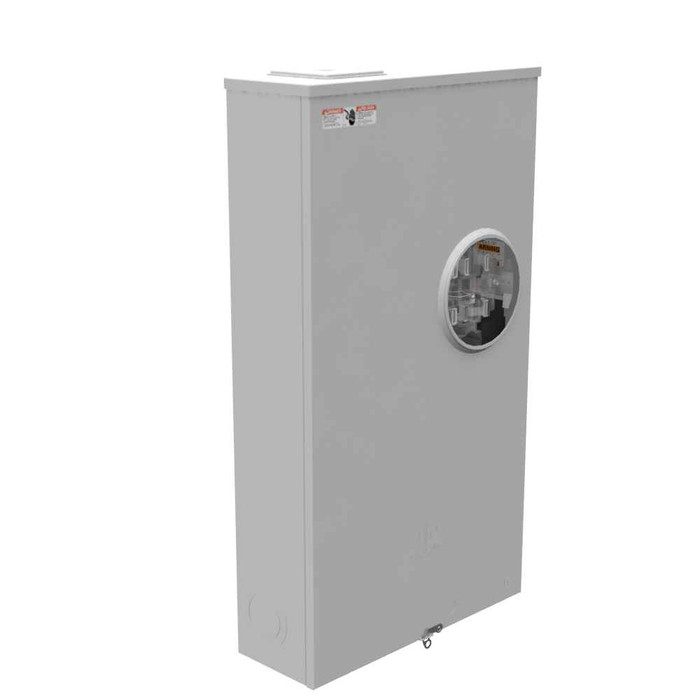

Milbank U4168-X-K7-BLG 7 Terminal Ringless Large Closing Plate Lever Bypass Single Connector 4-600kcmil with 7/8" Barrel Lock Provision

Milbank 320A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate (2)

(No reviews yet) Write a Review

Model: U4168-X-K7-BLG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,308.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional Power Metering Solution with Advanced Bypass Capability

The Milbank 320A 3-Phase Ringless Meter Socket delivers reliable power metering and distribution for commercial and industrial applications. Featuring a robust 320 continuous ampere rating with 600V AC capacity, this single-position meter socket incorporates lever bypass functionality and a large closing plate design. Constructed with G90 galvanized steel and powder coat finish in a Type 3R enclosure, it provides durable performance for overhead, underground, and side wireway cable entry configurations.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial power distribution requirements.
  • 3-Phase 600V AC Configuration: Supports high-capacity three-phase electrical systems with professional-grade voltage handling.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power service to critical loads.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations and harsh environmental conditions.
  • Ringless Design with 7 Terminal Configuration: Simplifies installation while providing comprehensive connection options for complex electrical systems.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability and professional appearance.
  • UL Listed Certification: Meets rigorous safety standards for commercial and industrial electrical installations.

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead and Underground and Side Wireway
  • Departent: Electrical
  • Equipment Ground: Grounding Stud
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: 7T32
  • Product Height: 34.125 IN
  • Product Length: 6.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 6.5L x 19W x34.125H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 19 IN

Professional Applications

  • Commercial Building Power Distribution
  • Industrial Facility Metering
  • Multi-Tenant Properties
  • Manufacturing Plants
  • Retail and Office Complexes
  • Municipal and Government Facilities
  • Healthcare and Educational Institutions

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish provides exceptional corrosion resistance, while the comprehensive 7-terminal configuration and lever bypass capability ensure professional-grade performance for demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead and Underground and Side Wireway
Equipment Ground:
Grounding Stud
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
7T32
Product Height:
34.125 IN
Product Length:
6.5 IN
Product Size:
6.5L x 19W x34.125H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
320
Product Width:
19 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4168-X-K7-BLG – Frequently Asked Questions

1) Will a Milbank U4168-X-K7-BLG meter socket work on a 3-phase 4-wire 120/208V service?
The U4168-X-K7-BLG is a 7-jaw, 3-phase socket rated 600V AC at 60 Hz, which is the jaw configuration used for 3-phase 4-wire self-contained metering. It is a single meter position with no main breaker, so overcurrent protection has to come from separate gear downstream. Confirm the jaw count your utility specifies before ordering, since 3-phase 3-wire services typically call for a 5-jaw socket instead.
2) Can I mount this Milbank socket outdoors on an exterior wall?
Yes. It is a Type 3R rainproof enclosure in G90 galvanized steel with a powder coat finish, built for surface mounting on a wall or backboard. Plan the wall space around a footprint of 6.5 inches deep by 19 inches wide by 34.125 inches high.
3) Does a ringless meter socket need a different cover than a ring-type socket?
Yes, and the two are not interchangeable. A ringless socket uses a hinged or lift-off cover that the utility seals directly, rather than a sealing ring clamped around the meter rim. The U4168-X-K7-BLG is ringless with a large closing plate over the hub opening, so if your utility specifies ring-type, this socket will not pass inspection. Utility acceptance of ringless versus ring-type varies by service territory.
4) Can I feed this Milbank socket from underground, or is it overhead only?
Either. Cable entry is provisioned for overhead, underground, and side wireway, so the same socket handles a mast-fed overhead drop, a lateral coming up from below, or a side connection into adjacent gear. The large closing plate covers the top hub opening when you are not running an overhead hub through it.
5) Do I need to order a separate disconnect with this meter socket?
Yes. The U4168-X-K7-BLG is a meter socket only, with no main breaker and no receptacles. Service disconnecting means and overcurrent protection have to be provided by separate gear, typically a fused disconnect or main breaker panel downstream. If you want metering and main breaker in one can, you need a meter main combination instead of this socket.
6) What does the lever bypass do and why would I want it on a commercial meter socket?
The lever bypass lets a utility tech or electrician shunt current around the meter jaws so the meter can be pulled and swapped while the load stays energized. On a 320 amp commercial or industrial feed serving tenants, a manufacturing line, or a healthcare facility, that means meter changes and testing happen without dropping power. Horn bypass sockets require lifting jumpers by hand; the lever version is a single throw.
7) Is there a place to land the grounding electrode conductor in this Milbank socket?
A grounding stud is provided in the enclosure for the equipment ground connection. The jaw and bypass assembly is insulated with glass polyester, which is what carries the 600V rating on a socket this size.
8) Does this meter socket accept a utility barrel lock?
Yes. It ships with a 7/8 inch knockout and an angle bracket for a barrel lock provision, which is what most utilities require on a ringless can so the cover can be locked and sealed after the meter is set. You supply the barrel lock itself, or the utility does.
9) Can I meter two tenants off this one Milbank socket?
No. It is a single position socket, one meter, one service. Multi-tenant buildings that need separate billing per unit require a multi-position meter stack or multiple individual sockets. This one suits a single large 320 amp commercial service, such as one building, one plant feed, or a house panel.
