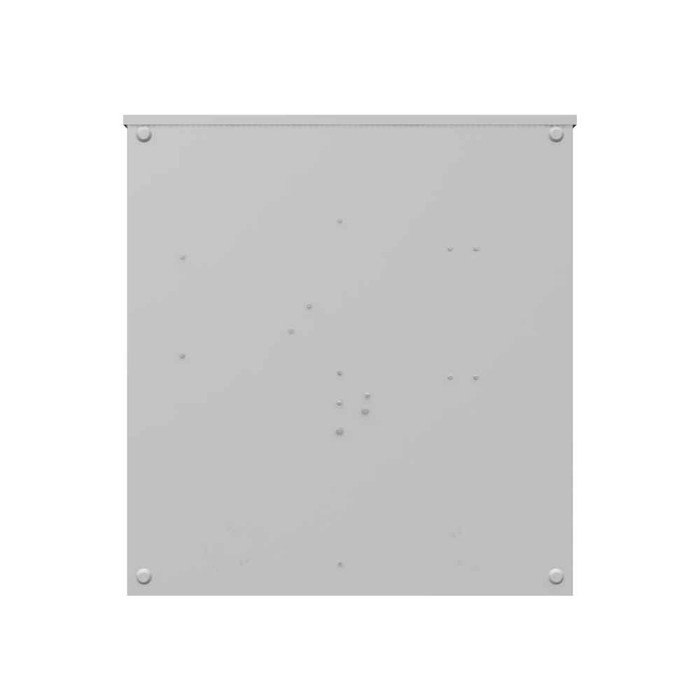

7 Terminal Ringless Plain Top Lever Bypass 1-200 Ampere Main Pullout Cold Sequence
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket With Main
- Brand Name:
- Milbank
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- 2 Barrel Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 28 IN
- Hub Closing Plate:
- Plain Top
- Insulation:
- Glass Polyester
- Length:
- 4.844 IN
- Line Side Wire Range:
- 3/0 AWG - 250 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- One 200 Ampere Main Fuse Pull Out Switch
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 7 Terminal
- Number Of Main Breakers:
- 1
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 3 Phase
- Product Family Code:
- COLBD
- Size:
- 4.844L x 26W x28H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 26 IN
