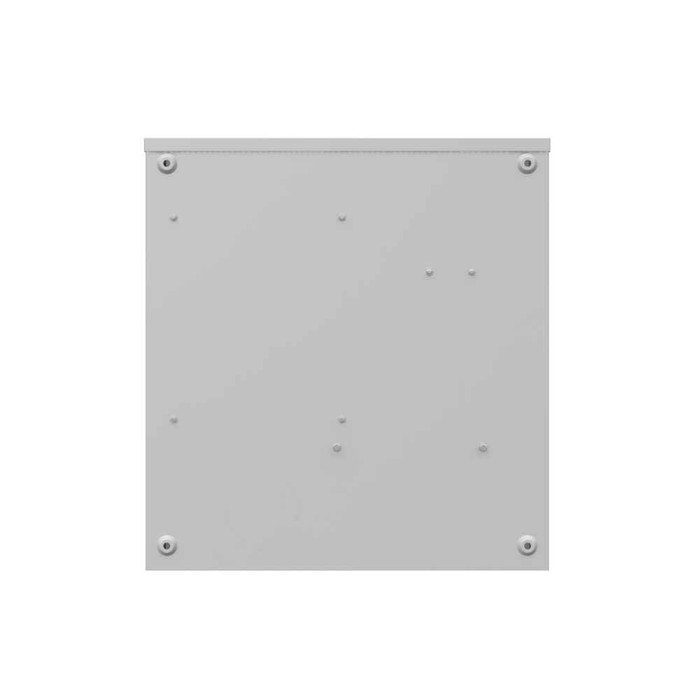

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Barrel Lock Provision

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Barrel Lock Provision

Professional Metering Solution with Integrated Security and Bypass Features

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality and barrel lock provision for enhanced security. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R meter socket provides durable performance for commercial and industrial applications requiring 600V AC service with underground cable entry and side wireway configuration.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial metering applications with reliable current capacity.
• 3-Phase 600V AC Service: Supports high-voltage three-phase electrical systems commonly required in commercial and industrial facilities.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption through integrated bypass functionality.
• 7/8 Inch Barrel Lock Provision: Includes knockout and angle bracket for enhanced security against unauthorized access and tampering.
• G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability with powder coat finish for extended service life.
• UL Listed Type 3R Rating: Meets stringent safety standards for outdoor installation with protection against weather and environmental conditions.
• Underground Cable Entry: Accommodates underground service with side wireway for clean, professional installations and cable management.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground with Side Wireway
• Department: Electrical
• Equipment Ground: 2 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Height: 19.25 IN
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Material: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: MD7T
• Product Group: Metering Equipment
• Product Length: 6 IN
• Product Size: 6L x 18W x19.25H
• Product Subgroup: Meter Socket
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 18 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Metering
• Industrial Facility Power Distribution
• Multi-Tenant Properties
• Manufacturing Plants
• Retail and Office Buildings
• Municipal and Government Facilities
• Educational Institutions

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability through UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The comprehensive wire range accommodation from 6 AWG to 350 kcmil and glass polyester insulation ensure long-term performance in demanding electrical metering applications.
