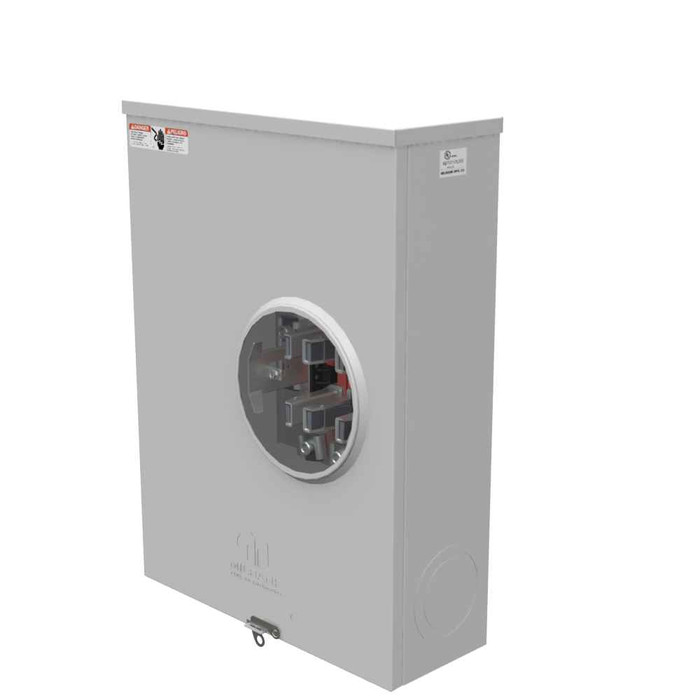

7 Terminal Ringless Plain Top Lever Bypass 9-16 In Barrel Lock With Bracket Provision
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 Continuous Ampere
- Application:
- Meter Socket
- Barrel Lock Provision:
- 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
- Bypass Provision:
- Lever Bypass
- Cable Entry:
- Underground
- Equipment Ground:
- Ground Lug
- Frequency Rating:
- 60 Hertz
- Height:
- 22 IN
- Hub Closing Plate:
- Plain Top
- Insulation:
- Glass Polyester
- Length:
- 5.75 IN
- Line Side Wire Range:
- 6 AWG - 350 kcmil
- Load Side Wire Range:
- 6 AWG - 350 kcmil
- Main Breaker Size:
- No Main Breaker
- Material:
- G90 Galvanized Steel with Powder Coat Finish
- Mounting:
- Surface Mount
- Number Of Jaws:
- 7 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 3 Phase
- Product Family Code:
- HD7T
- Size:
- 5.75L x 16W x22H
- Standard:
- UL Listed;Type 3R
- Terminal:
- Lay in
- Type:
- Ringless Meter Socket
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 16 IN
- Product Type:
- Meter Socket
