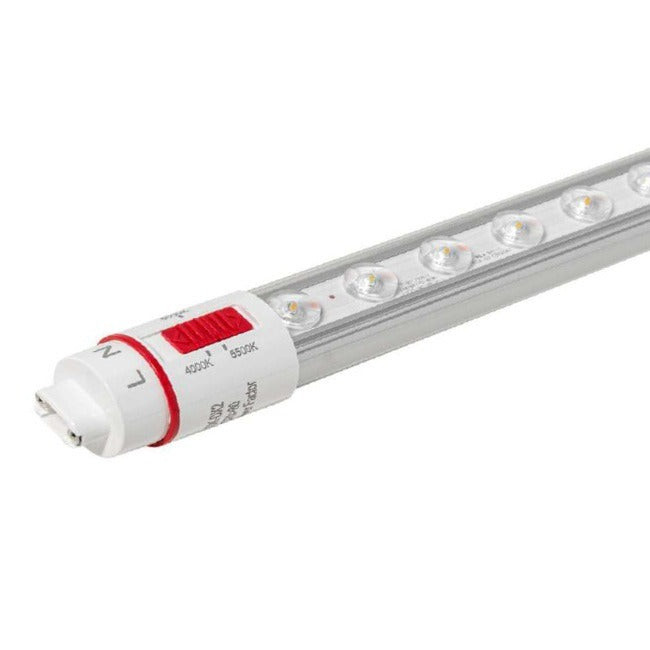

Keystone 72" 31W LED T8 Sign Tube with Selectable Color Temperature

Professional LED Sign Lighting with Color Select Technology

The Keystone 72" 31W LED T8 Sign Tube delivers versatile professional lighting with selectable color temperature technology for commercial sign applications. This 72-inch LED tube features R17d base construction with frosted plastic housing and operates on 120-277V input voltage, providing reliable performance for diverse sign lighting requirements with 50,000-hour rated life and 5-year warranty coverage.

Professional Features & Benefits

  • 31W Power Rating: Efficient LED technology provides optimal illumination while minimizing energy consumption for cost-effective operation.
  • Selectable Color Temperature (4000K/5000K/6500K): Three color options allow customization for different sign applications and visual requirements.
  • 72-inch Length: Extended tube design accommodates large sign installations and provides comprehensive coverage.
  • 120-277V Input Voltage: Wide voltage compatibility ensures installation flexibility across various electrical systems.
  • 50,000-Hour Rated Life: Extended operational lifespan reduces maintenance frequency and replacement costs.
  • R17d Base Type: Professional base configuration ensures secure connection and reliable electrical contact.
  • 5-Year Warranty: Comprehensive warranty coverage provides long-term protection and peace of mind.

Technical Specifications

  • Accessory Device: No
  • Base Type: R17d
  • Beam Angle: 360
  • Cec T20: No
  • Construction: Frosted Plastic
  • Cri: >80
  • Dimming: Non Dimmable
  • Dlc: No
  • Dlc Premium: No
  • Energy Star: No
  • Input Voltage: 120-277
  • Lamp Technology: B
  • Lamp Type: T8
  • Led Module Included: No
  • Max Input Current: 275
  • Nominal Length: 72 in
  • Not Suitable For Sale In California: No
  • Not Suitable For Sale In Vermont: No
  • Power: 31
  • Product Weight: 1.95 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 4000/5000/6500
  • T24 Ja8: No
  • Ul: No
  • Warranty Years: 5
  • Wireless Control: No
  • Wiring Method: Single+Double Ended

Professional Applications

  • Commercial Sign Lighting
  • Retail Display Illumination
  • Professional Office Signage
  • Industrial Facility Signs
  • Institutional Building Signage
  • Multi-Unit Property Signs
  • Emergency Exit Signs

Why Choose Keystone Quality?

Keystone delivers reliable LED sign lighting solutions with professional-grade frosted plastic construction and comprehensive 5-year warranty coverage. The 50,000-hour rated life and wide 120-277V input voltage compatibility ensure dependable performance across diverse commercial applications.

Manufacturer Resources

Product Specs

Accessory Device:
No
Base Type:
R17d
Beam Angle:
360
Cec T20:
No
Construction:
Frosted Plastic
Cri:
>80
Dimming:
Non Dimmable
Dlc:
No
Dlc Premium:
No
Energy Star:
No
Input Voltage:
120-277
Lamp Technology:
B
Lamp Type:
T8
Led Module Included:
No
Max Input Current:
275
Nominal Length:
72 in
Not Suitable For Sale In California:
No
Not Suitable For Sale In Vermont:
No
Power:
31
Product Weight:
1.95 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
4000/5000/6500
T24 Ja8:
No
Ul:
No
Warranty Years:
5
Wireless Control:
No
Wiring Method:
Single+Double Ended

Keystone KT-LED31T8-72P2SO-8CSK-DX2 – Frequently Asked Questions

1) Do I have to remove the fluorescent ballast to install this 31W LED sign tube?
Yes. Wiring method is single plus double ended, meaning it wires direct to line voltage at one or both ends. The existing fluorescent ballast comes out and the sockets are wired to 120-277V line power. Input voltage range is 120-277V, so it works on either leg of a typical commercial service without changing lamps.
2) How do I set the color temperature on this color select sign tube?
Color is selectable between 4000K, 5000K and 6500K on the tube itself, chosen at install rather than ordered as separate part numbers. One stocked item covers all three, which is why a property manager with mixed cabinet signs can standardize on a single lamp and still match 6500K daylight channel letters next to 4000K neutral panels. CRI is greater than 80.
3) Can I put this LED sign tube on a dimmer or an occupancy control?
No. The tube is non-dimmable and has no wireless control capability. Feed it switched line voltage only. Putting it on a dimming circuit or a 0-10V driver is not a supported installation.
4) Will a 360 degree beam angle LED tube light a double-faced sign cabinet evenly?
Beam angle is 360 degrees and the housing is frosted plastic, so output wraps the full circumference instead of throwing in one direction. That is what you want in a double-faced or back-lit cabinet where the lamp sits between two faces. For single-faced channel letters a directional sign tube puts more of the light where it counts.
5) Can I buy this Keystone sign tube for a job in California or Vermont?
There is no sale restriction flagged for California or Vermont on the KT-LED31T8-72P2SO-8CSK-DX2. It is not DLC or DLC Premium listed and not Energy Star qualified, so if your project is chasing a utility rebate that requires a DLC listing, this lamp will not qualify for it.
