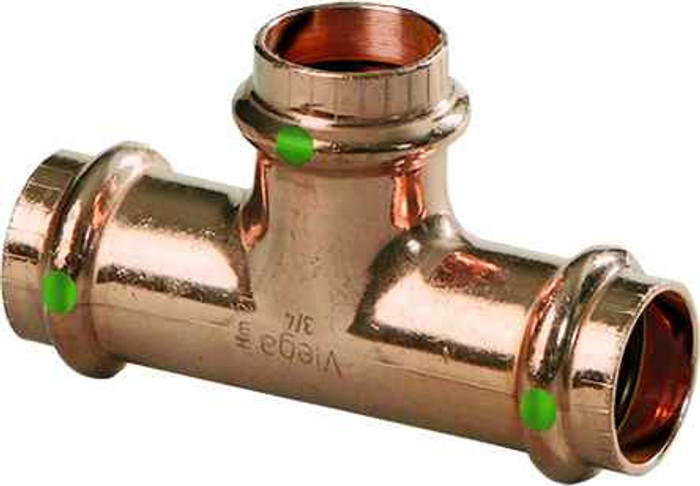

77432 Viega ProPress tee Smart Connect technology Copper, 1'' x 1'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Copper
- Product Dimension:
- 1'' x 1'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.5"
- Product Height:
- 2.287"
- Product Weight:
- 0.37 lbs
- Product Width:
- 3.189"
- Product Material:
- Copper
Viega 77432 – Frequently Asked Questions
1) What pipe sizes does the Viega 77432 ProPress tee connect?
The Viega 77432 is a reducing press tee sized 1 inch x 1 inch x 1/2 inch. The run is 1 inch on both ends and the branch outlet steps down to 1/2 inch, so it is the fitting for taking a 1/2 inch branch off a 1 inch copper main without adding a separate bushing or reducer.
2) Is the Viega 77432 tee copper or bronze, and can I press it onto hard copper tube?
It is a copper fitting, made for copper tube systems. All three ends are ProPress press connections, so it goes onto Type K, L or M hard copper with a press tool and the matching jaws, no solder or flux.
3) What does Smart Connect technology on this Viega ProPress tee actually do for me on the job?
Smart Connect is Viega's unpressed-connection feature built into the 77432 tee. On a pressure test, a fitting that was left unpressed leaks at the sealing element so the installer can find it and press it, rather than having it pass test and fail later behind a wall. It is the reason inspectors accept a full press system test on a large riser job.
4) Should I use a press tee like this or a solder tee on a copper branch?
Press is the choice when you cannot get flame in the space, when the line cannot be fully drained, or when you are working occupied floors in a hospital, hotel or multifamily building. The 77432 needs no hot work permit and no dry pipe. Solder still has its place on new rough-in where a torch is allowed and you want the lowest material cost, but the press tee installs in seconds per joint and leaves nothing to clean up.
5) Do I need sealing elements or gaskets separately for the Viega 77432?
No separate gaskets to order. Each of the three ProPress sockets on the 77432 comes with its sealing element already installed. What you supply is the press tool and the correct jaws, plus a deburred, properly cut and marked tube end.
6) Can I use this copper ProPress tee on PEX or on steel pipe?
No. The 77432 is a copper-to-copper press fitting, so it is for copper tube only. PEX takes Viega's PureFlow line and steel pipe takes the MegaPress family, both of which use different sealing elements and jaws.
